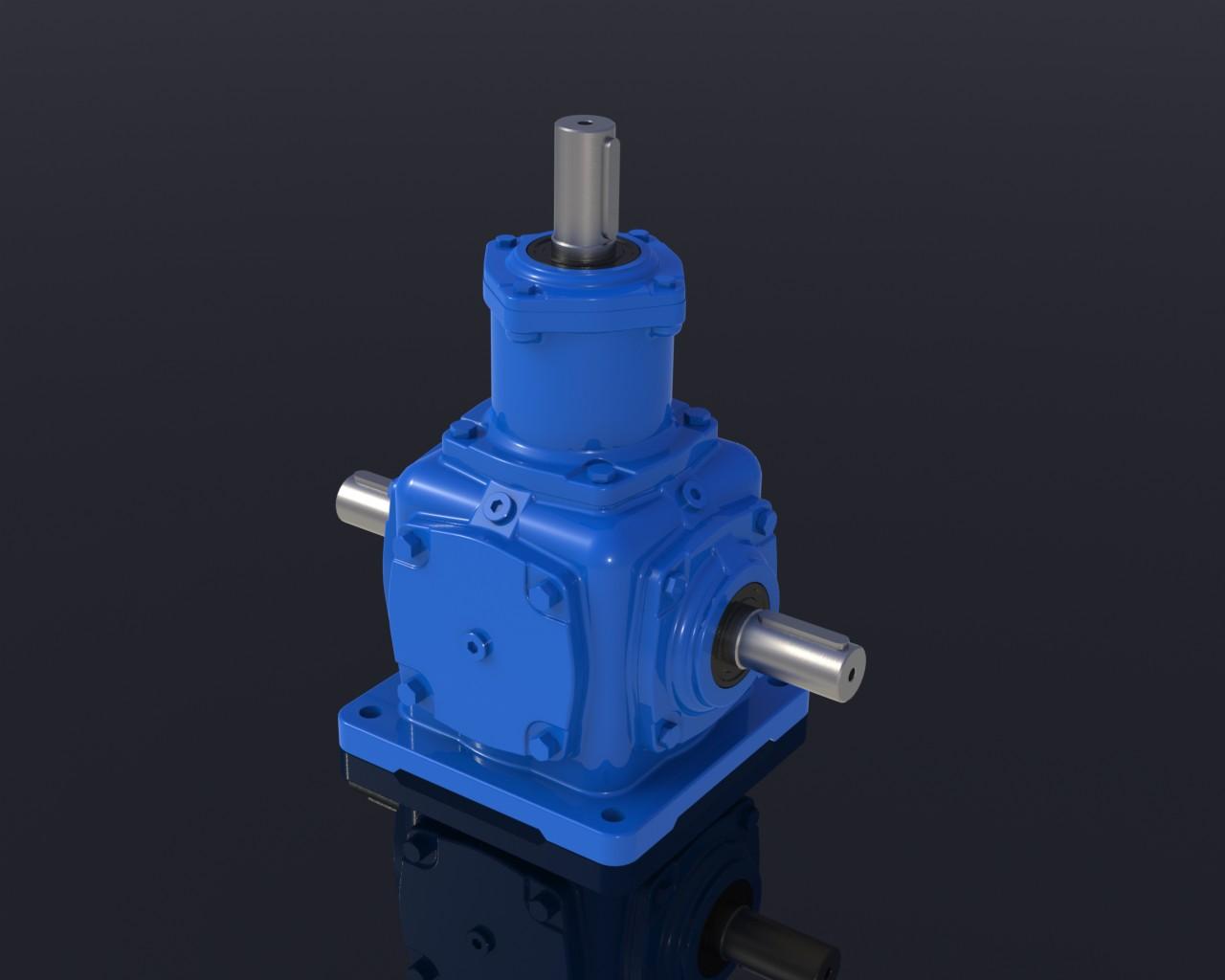

T series Bevel Spiral Gearbox 1:1 steering box

Model:T2-T25
Brand:REDSUN OR OEM
Origin:Made In China
Category:Industrial Supplies / Machinery / Transmission
Label:Right Angle gearbox , gear reducer , gearbox
Price: US $200 / pc
Min. Order:1 pc
Inquire Now Add to Basket

Member Information

Detail

ZHEJIANG RED SUN MACHINERY CO.,LTD.

Biz MemberZhe Jiang - China
Live Chat:
点击这里给我发消息Last Online:28 Feb, 2020

Product Description

For more details, contact me below:

Carol Ni: carol(at)cn-redsun.com   sales(at)cn-redsun.com

Advantage:

1.Standard and various, ratio 1:1,1.5:1,2:1,3:1, all are exact ratio.
2.When the ratio is not 1:1 and pinion shaft is input, so cross shaft is reduced output.
3. When cross shaft is input, the pinion shaft is increased output.
4.Spiral bevel gear, stable transmission, low noise level, small vibration and strong loading capacity.
5.Double input shaft is available.
6.Multiple output shaft is available.
7.Any mounting position is available.


Main applied for:

1.Agriculture and food
2.Building and construction
3.Forest and paper
4.Metal processing
5.Chemical industry and environmental protection


Technical Data:


Housing material

Cast iron/Ductile iron

Housing hardness HBS190-240
Gear material 20CrMnTi alloy steel
Surface hardness of gears HRC58°~62 °
Gear core hardness HRC33~40
Input / Output shaft material 42CrMo alloy steel
Input / Output shaft hardness HRC25~30
Machining precision of gears Accurate grinding, 6~5 Grade
Lubricating oil GB L-CKC220-460, Shell Omala220-460
Heat treatment Tempering, cementiting, quenching, etc.
Efficiency 94%~96% (depends on the transmission stage)
Noise (MAX) 60~68dB
Temp. Rise (MAX) 40°C
Temp. Rise (Oil)(MAX) 50°C
Vibration ≤20µm
Backlash ≤20Arcmin
Brand of bearings China top brand bearing, HRB/LYC/ZWZ/C&U. Or other brands requested, SKF, FAG, INA, NSK.
Brand of oil seal NAK --- Taiwan or other brands requested



Application Examples:


Packing&Shipping:





Our Company:


1.It is a professional company specialized in researching,developing and selling gearboxes which was founded in 2001.

2.Redsun factory occupies 35000 Sqm and  370 staffs.

3.The annual production capacity of speed reducer is around 70000 sets.

Our Workshop:


Our Exhibition:

Our Certification:

FAQ:

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock.

Q: Can we buy 1 pc of each item for quality testing?

A: Yes, we are glad to accept trial order for quality testing.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance, balance before shippment.
If you have another question, pls feel free to contact us.



For more details, contact me below:

Carol Ni: carol(at)cn-redsun.com   sales(at)cn-redsun.com


Price Terms:FOB,CNF,CIF,etc
Payment Terms:TT/LC/CASH
Packing:Wooden Case, Standard Export Package
Lead Time:15-18 Days
SKU:PCS
Standards Certificate:ISO9001:2015
