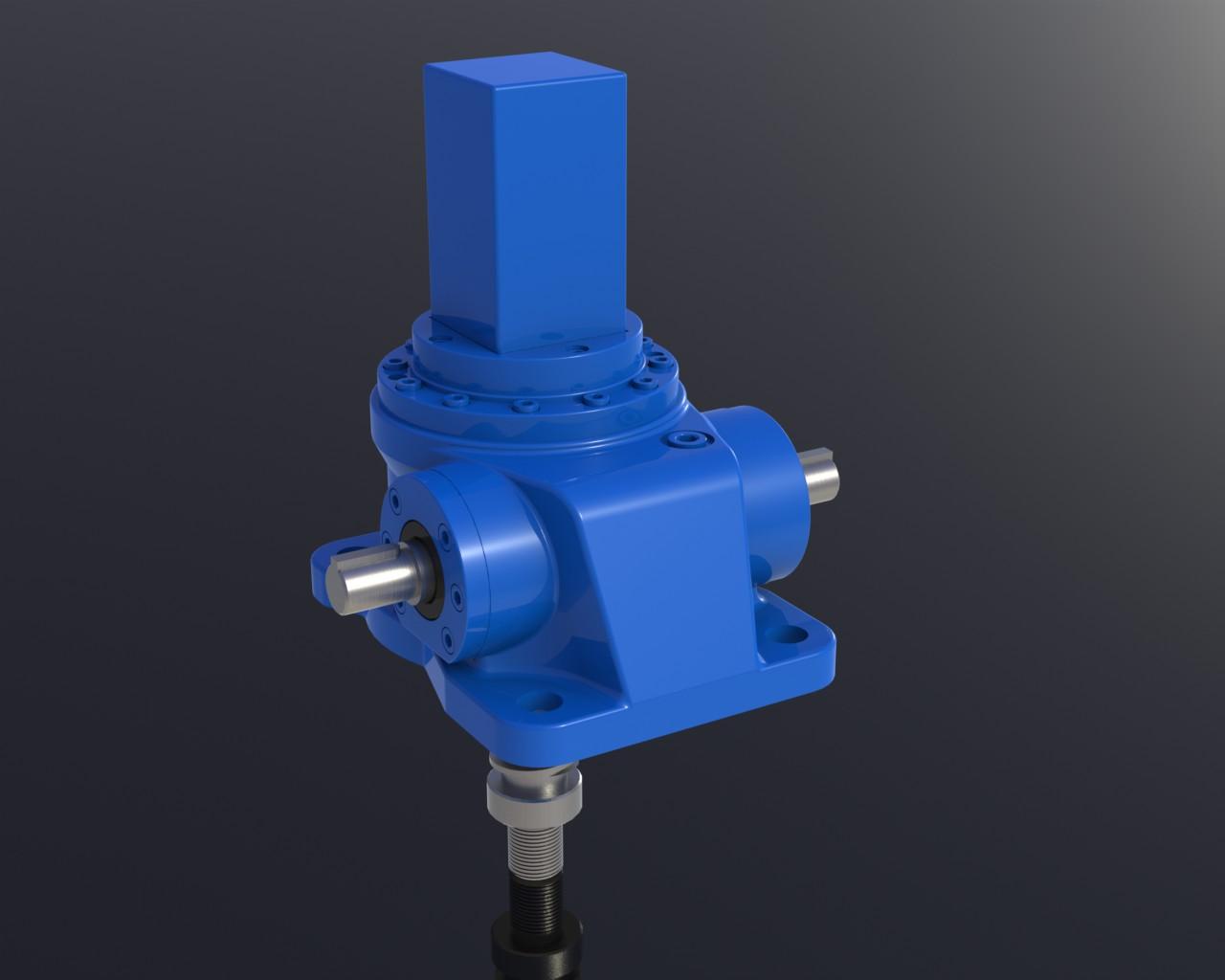

SWL series worm screw jack for lifting platform

Model:JWM002-100T
Brand:REDSUN OR OEM
Origin:Made In China
Category:Industrial Supplies / Machinery / Transmission
Label:Trapezoidal jack , lift jack , worm screw jack
Price: US $200 / pc
Min. Order:1 pc
Inquire Now Add to Basket

Member Information

Detail

ZHEJIANG RED SUN MACHINERY CO.,LTD.

Free MemberZhe Jiang - China
Live Chat:
点击这里给我发消息Last Online:10 Aug, 2023

Product Description

For more details, contact me below:

Carol Ni: carol(at)cn-redsun.com    sales(at)cn-redsun.com



Product Description:

Features

Original modular design, biomimetic surface with owned intellectual property right.
Adopt German worm hob to process the worm wheel.
Low friction, long lifecycle, high efficiency.
Diverse drives, motor or other power drive, also can be driven by hand.
Various output type.



Main applied for

Hoist and transport
Building and construction
Forest and paper
Metal processing
Agriculture and food



Technical Data:

Housing material

Cast iron/Ductile iron

Housing hardness HBS190-240
Gear material 20CrMnTi alloy steel
Surface hardness of gears HRC58°~62 °
Gear core hardness HRC33~40
Input / Output shaft material 42CrMo alloy steel
Input / Output shaft hardness HRC25~30
Machining precision of gears Accurate grinding, 6~5 Grade
Lubricating oil GB L-CKC220-460, Shell Omala220-460
Heat treatment Tempering, cementiting, quenching, etc.
Efficiency 94%~96% (depends on the transmission stage)
Noise (MAX) 60~68dB
Temp. Rise (MAX) 40°C
Temp. Rise (Oil)(MAX) 50°C
Vibration ≤20µm
Backlash ≤20Arcmin
Brand of bearings China top brand bearing, HRB/LYC/ZWZ/C&U. Or other brands requested, SKF, FAG, INA, NSK.
Brand of oil seal NAK --- Taiwan or other brands requested


Model Selection:

Redsun Jw Series Electric Worm Gear Screw Jack
Redsun Jw Series Electric Worm Gear Screw Jack

Redsun Jw Series Electric Worm Gear Screw Jack


Product shows:
Redsun Jw Series Electric Worm Gear Screw Jack



Our Company:

1.It is a professional company specialized in researching,developing and selling gearboxes which was founded

in 2001.
2.Redsun factory occupies 35000 Sqm and  370 staffs.
3.The annual production capacity of speed reducer is around 70000 sets.


Redsun R Series Helical Gearbox (R17-167)



Our Workshop:

Redsun R Series Helical Gearbox (R17-167)

Exhibitions:

Redsun R Series Helical Gearbox (R17-167)
Certifications:

Redsun R Series Helical Gearbox (R17-167)

FAQ:

Q: Are you trading company or manufacturer?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. Or it is 15-20 days if the goods are not in stock.

Q: Can we buy 1 PC of each item for quality testing?

A: Yes, we are glad to accept trial order for quality testing.

Q: What is your terms of payment?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance, balance before shippment.
If you have another question, pls feel free to contact us.


If you have another question, pls feel free to contact us.

For more details, contact me below:

Carol Ni: carol(at)cn-redsun.com    sales(at)cn-redsun.com


Price Terms:FOB,CNF,CIF,etc
Payment Terms:TT/LC/CASH
Packing:Wooden Case, Standard Export Package
Lead Time:15-18 Days
SKU:PCS
Standards Certificate:ISO9001:2015
