Description

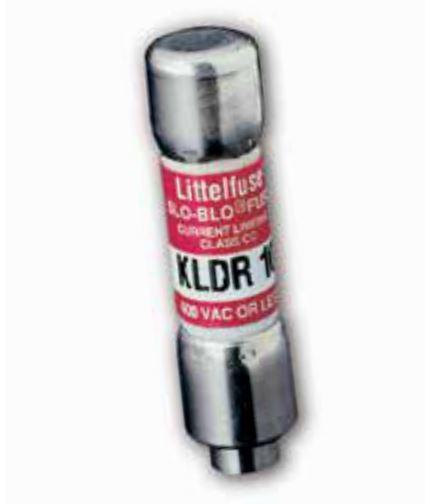

KLDR fuses are time-delay fuses designed to protect control transformers, solenoids and similar inductive
components with high magnetizing currents during the first half-cycle. They provide excellent protection of motor branch circuits containing IEC or NEMA rated motor controllers or contactors.

Features/Benefits
• Meets UL and CSA standards
• Class CC fuses are the smallest 600 V, 200,000 A.I.R. fuses approved for branch circuit protection
• Rejection feature prevents use of fuses with lower interrupting ratings or voltage ratings when used with corresponding fuse holders
• Extremely current limiting reduces damage caused by heating and magnetic effects of short-circuit currents

Applications
• Transformer Protection

Recommended Fuse Holders
L60030C Series
LPSC Touch-Safe Series

Specifications
Voltage Rating AC: 600 V
DC: 300 V
Amperage Rating 1/10 – 30 A
Interrupting Rating AC: 200 kA rms symmetrical
DC: 20 kA
Material Body: Melamine
Caps: Nickel-plated Bronze
Fuse Weight .019 lb (8.62g)
Approvals AC: Standard 248-4, Class CC
UL Listed 1/10-30 A (File: E81895)
CSA Certified 1/10-30 A (File: LR29862)
DC: Littelfuse self-certified
Environmental RoHS Compliant
Country of Origin Mexico

KLDR.100TXP
KLDR.125TXP
KLDR.150TXP
KLDR.187TXP
KLDR.200TXP
KLDR.250TXP
KLDR.300TXP
KLDR.400TXP
KLDR.500TXP
KLDR.600TXP
KLDR.750TXP
KLDR.800TXP
KLDR001.TXP
KLDR1.12TXP
KLDR1.25TXP
KLDR01.4TXP
KLDR01.5TXP
KLDR01.6TXP
KLDR01.8TXP
KLDR002.TXP
KLDR2.25TXP
KLDR02.5TXP
KLDR02.8TXP
KLDR003.TXP
KLDR03.2TXP
KLDR03.5TXP
KLDR004.TXP
KLDR04.5TXP
KLDR005.TXP
KLDR05.6TXP
KLDR006.TXP
KLDR6.25TXP
KLDR007.TXP
KLDR07.5TXP
KLDR008.TXP
KLDR009.TXP
KLDR010.TXP
KLDR012.TXP
KLDR015.TXP
KLDR17.5TXP
KLDR020.TXP
KLDR025.TXP
KLDR030.TXP
