Aluminium Rod Continuous Casting and Rolling Line

Model:LGZ-1500/Y
Brand:INNOVATIVE
Origin:Made In China
Category:Industrial Supplies / Electrical & Electronic Product Equipment
Label:aluminum casting , casting machine , casting line
Price: -
Min. Order:1 pc
Inquire Now Add to Basket

Member Information

Detail

HEFEI INNOVATIVE ELECTRICAL & MACHINERY SCIENCE CO.,LTD.

Biz MemberAn Hui - China
Live Chat:
点击这里给我发消息Last Online:17 Sep, 2019

Product Description



1.Machine Name & Type

LGZ-1500/Y Aluminium Rod Continuous Casting and Rolling Line

2.Machine Application

  Specially for producing aluminium rod of diameter 9.5mm for electrical wire.

3.Machine Characteristic

  Fixed holding furnace designed to provide easy operation.

  Crystallizing wheel is in type of "M", inner and outer nozzle spraying water to ensure
  the crystal of the cast bar close and equal.It is easy for inner cooling, outer cooling
  to be adjusted and the steel belt to be changed.

  The continuous rolling machine has a function of rods stacking stop.
  With an unique 3-high rolling method, the aluminium rod is provided with a good
  mechanic performance. The rolling emulsion and oil system with the cooler,
  filter and indicator for pressure of the main pipe.

  The rod is coiled by means of centrifugal (laying head).

  The transmission system is in type of DC motor (fully-digital) speed adjusting.




4.Technical Data

                                           Type                     shaft furnace
Melting furnace                 Melting rate                        5 t/h
                                           Type                      fixed-type
Holding furnace                 Capacity                       2×8 t
                                           Casting ring dia.                1500 mm
Casting machine                 Casting bar speed           8 - 12 m/min
                                Casting bar section            2400 mm2
                                Water consumption              90 m3/h
                                Motor for casting rin            4 kW
                                Max. shearing force)         12000 Kg
Accessory shearer               Max. shearing stroke         65 mm
                                            Type                   3-high rolling stand
Rolling mill                    Outlet rod dia.                 9.5 mm
                                No. of rolling stand)             15 pcs
                                Rollers' dia.)                         255 mm
                                Finished rolling speed)        4 - 6 m/s
                               Production capacity)             2.6 - 4 t/h
                               Center height)                        902.5 mm
                                Main motor)                         250 kW
                                Emulsion consumption)         60 m3/h
                                       Coil's size           φ1300 - 1800 mm
Twin-coiler                    Collecting basket)    φ2000×1200 mm
                                      Coils’weight)             1500-1800 kg



5.Line Composition
It is composed of melting shaft furnace, holding furnace, casting machine, accessory
oil-hydraulic shearer, rolling mill, engine oil lubrication system, emulsion lubrication
system, twin-coiler, line electric control, etc.


Payment Terms:TT/LC
Standards Certificate:ISO14001/ISO9001

Product Image

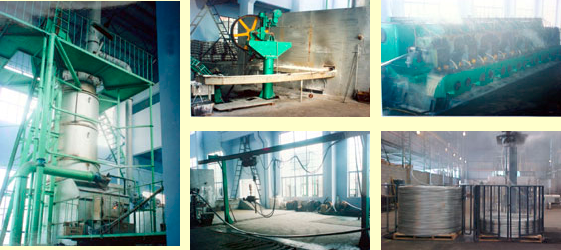

Aluminium Rod Continuous Casting and Rolling Line 1
