| Model: | TF-260 |
|---|---|
| Brand: | Yalis |
| Origin: | Made In China |
| Category: | Industrial Supplies / Textile Machinery Parts |
| Label: | Yalis inspection , Yalis fabric inspect , Yalisinspection mach |
| Price: |
US $5000
/ set
|
| Min. Order: | 1 set |
| Live Chat: |  | Last Online:20 Jan, 2021 |

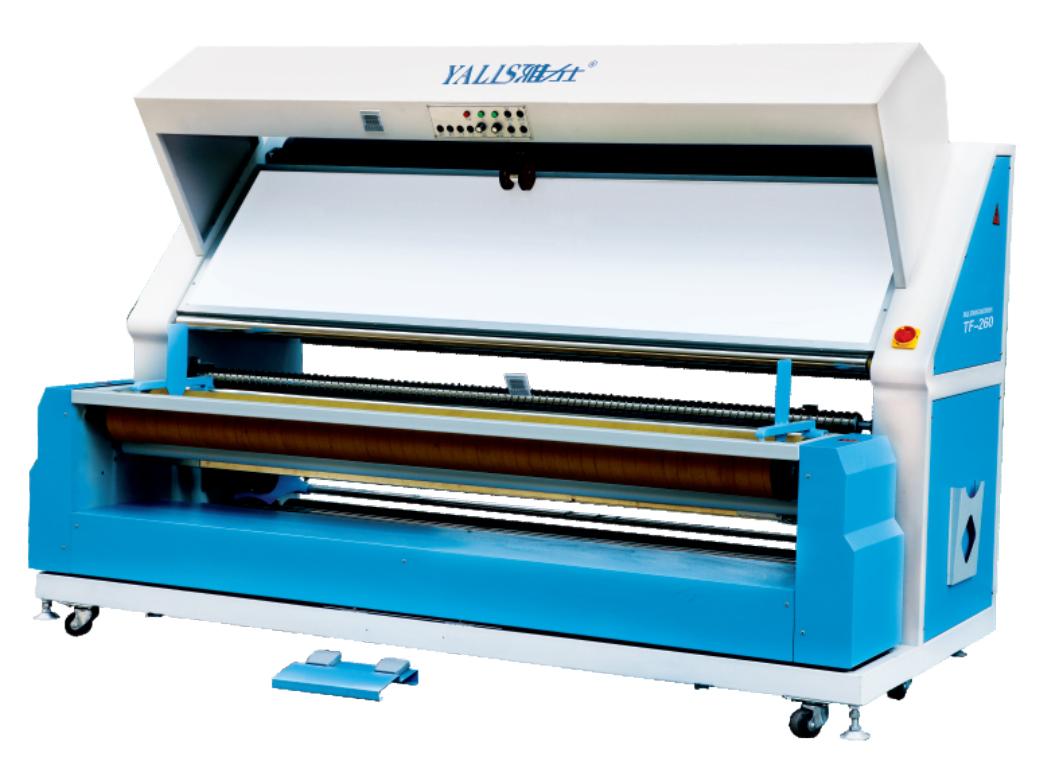

TF-260
FEATURES
§ The machine is equipped with cloth spreading device, so as to spread the wrinkled cloth smooth and fold them neatly.
§ Electronic auto edge alignment systems can fully ensure the good roll edge after rewinded,which can be packed beautifully and used conveniently.
§ It used frequency convertor to control motor for forward and backward rotating,which can adjust the speed to inspect the cloth from 0 to 70 yard every minute.
§ It has the digital display meter counter. Two installation methods can be selected according to different cloths (knitting or woven cloths), so as to display precisely the yards of the inspected cloths.
§ The automatic cloth loosening device designed for various cloths will shutdown automatically when where is no cloth, so that the cloth will be inspected or measured without tension
Specification
|
Model |
TF-260 |
||
| Power supply | 1P/220V | ||
| Diameter of cloths | 500mm | ||
| Cloth width | 72" | 82" | 92" |
| Cloth weight | 150kgs | 180kgs | 210kgs |
| Inspection speed | 35(max)yard/min | ||
| Machine size (LxWxH) | 2230x1250x1920mm | 2530x1250x1920mm | 2830x1250x1920mm |
| Packing size (LxWxH) | 2420x1320x2010mm | 2720x1320x2010mm | 3020x1320x2010mm |
| N.W / G.W | 400/550kgs | 600/750kgs | 800/950kgs
|
