| Model: | - |
|---|---|
| Brand: | AOGANG |
| Origin: | Made In China |
| Category: | Industrial Supplies / Other Industrial Supplies |
| Label: | Pipe making machine , Tube making machine , ERW pipe mill |
| Price: |
-
|
| Min. Order: | 1 set |
| Live Chat: | Last Online:17 Jun, 2019 |
It is designed to roll steel strips to produce continuously to longitudinal welding steel tube, which is used to produce structure round ,square and rectangular tube, profile tube.
Technical Procedures
Coil loading→Uncoiling→Shearing & Welding→Accumulating→Forming→HF welding→Outer de-burring→Seam polishing→water cooling→Fine sizing→Turk straightening→Flying cut off→Run out table→Packaging→storing.
|
Model |
Round Pipe |
Square & Rectangle Pipe |
||
|
Diameter(mm) |
Thickness(mm) |
Diameter(mm) |
Thickness(mm) |
|
|
ERW32 |
Φ8~Φ32 |
0.5~2.5 |
10×10~25×25 |
0.5~2.0 |
|
ERW50 |
Φ12~Φ50.8 |
0.6~2.5 |
15×15~50×50 |
0.6~2.0 |
|
ERW60 |
Φ12~Φ63 |
0.6~3.0 |
15×15~50×50 |
0.6~2.5 |
|
ERW76 |
Φ25~Φ76 |
1.0~4.0 |
20X20 ~60X60 |
1.0~3.5 |
|
ERW89 |
Φ32~Φ89 |
1.5~4.5 |
25X25 ~70X70 |
1.5~4.0 |
|
ERW127 |
Φ48~Φ127 |
1.5~5.0 |
40×40~100×100 |
1.5~4.5 |
|
ERW165 |
Φ60~Φ165 |
2.0~6.0 |
50×50~130×130 |
2.0~5.5 |
|
ERW 254 |
Φ114~Φ254 |
3.0~8.0 |
90×90~200×200 |
3.0~6.0 |
|
ERW273 |
Φ114~Φ273 |
4.0~10.0 |
90×90~200×200 |
4.0~8.0 |
|
ERW325 |
Φ165~Φ325 |
4.0~12.0 |
150×150~250×250 |
4.0~10.0 |
|
ERW426 |
Φ165~Φ426 |
6.0~14.0 |
130×130~300×300 |
6.0~12.0 |
|
ERW508 |
Φ165~Φ508 |
6.0~16.0 |
130×130~400×400 |
6.0~16.0 |
|
ERW630 |
Φ325~Φ630 |
6.0~18.0 |
300×300~500×500 |
6.0~18.0 |
Note : The line is non-standard machine and can be produced according to user requirements, parameters sheet for reference only.

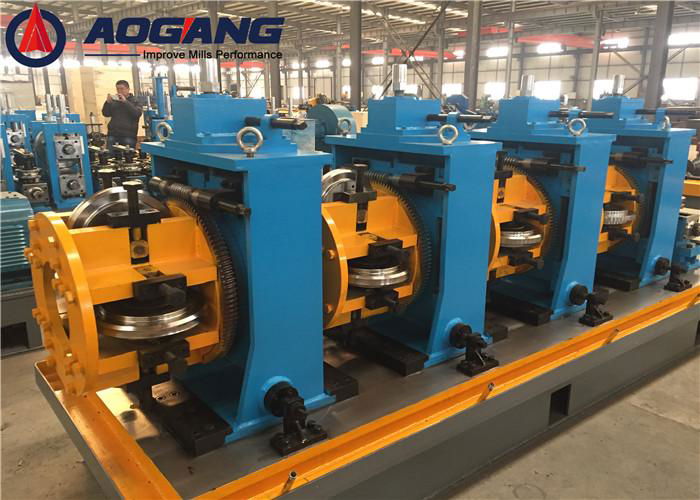

Product image
