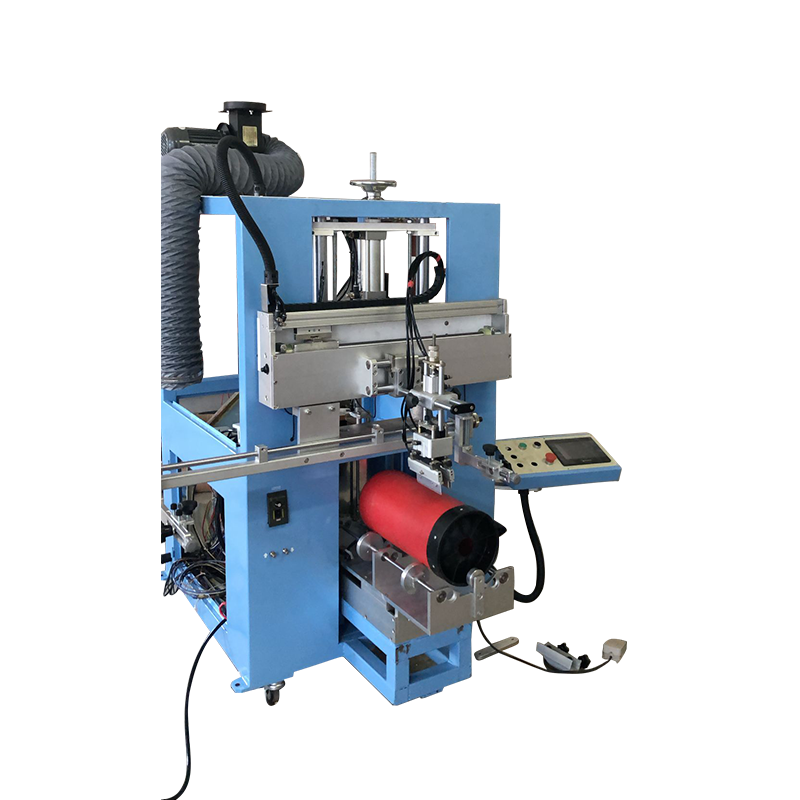

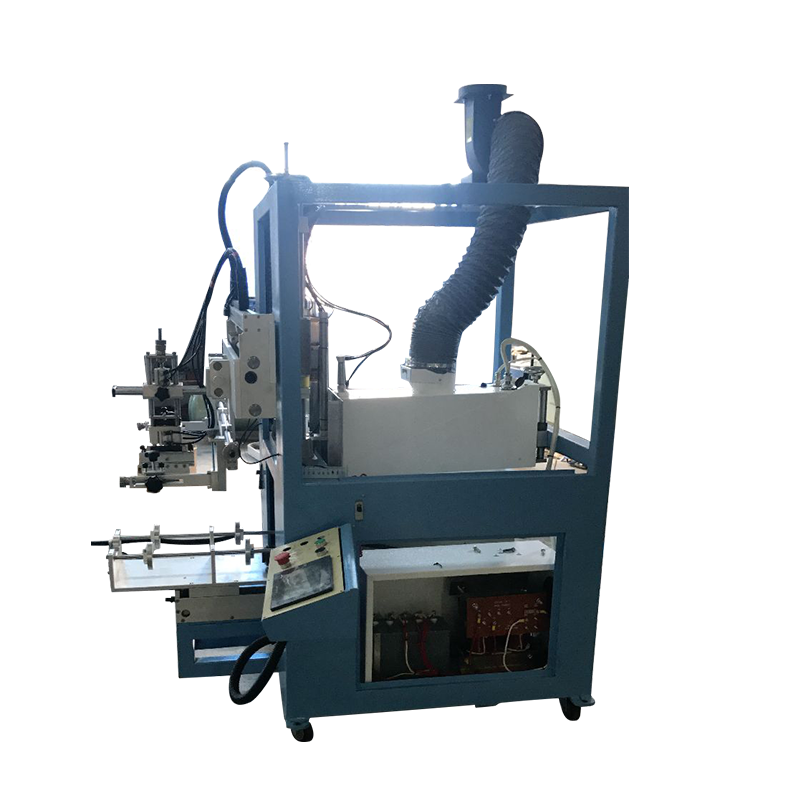

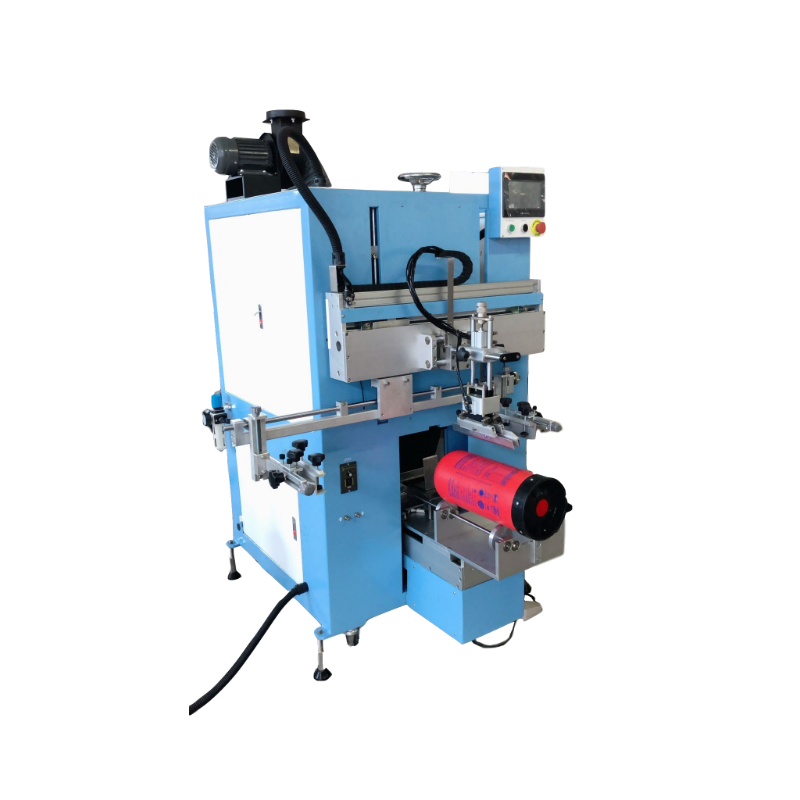

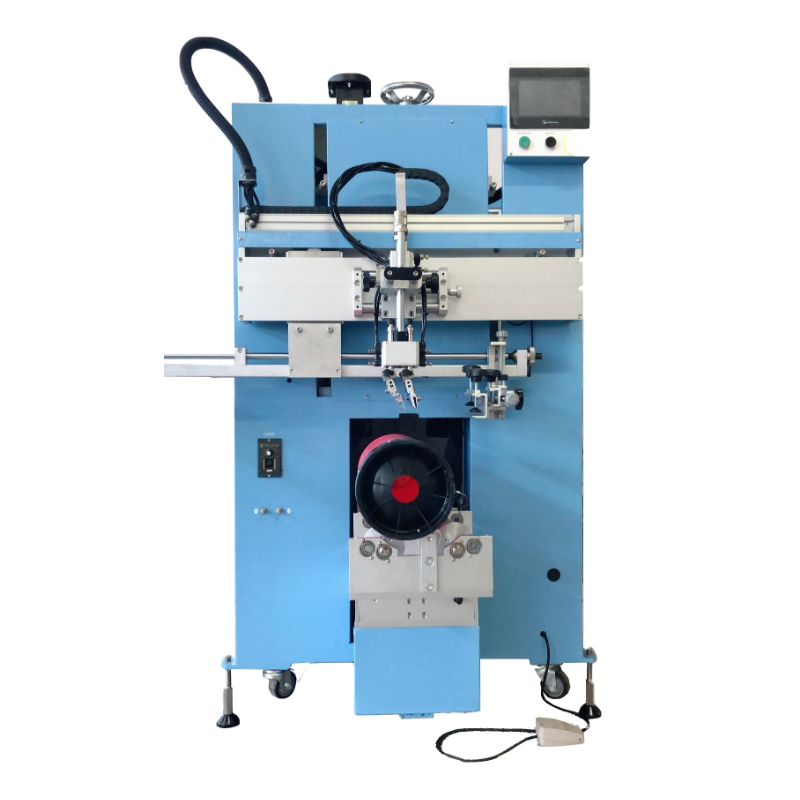

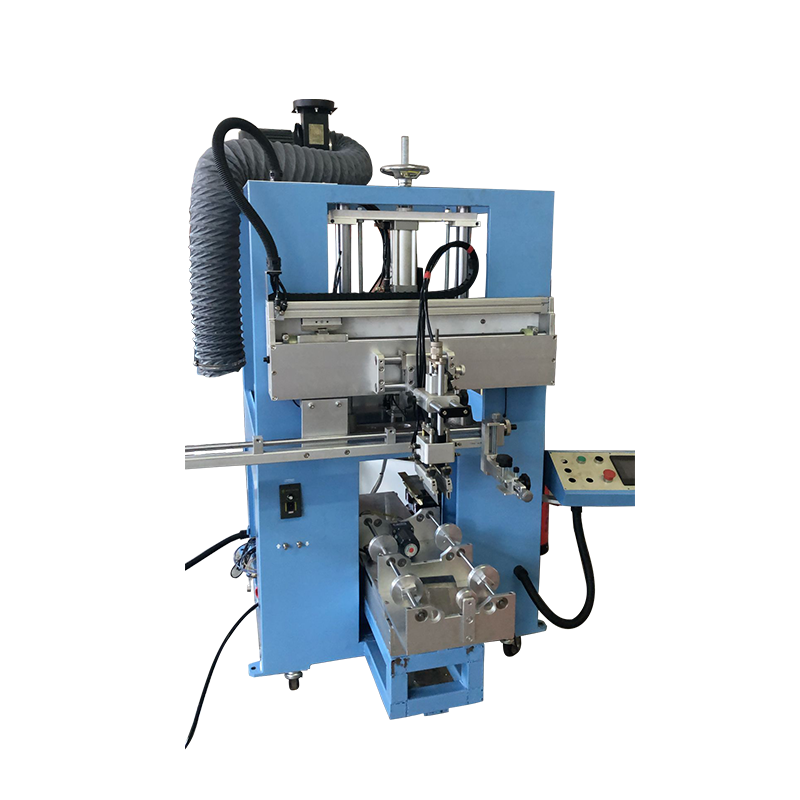

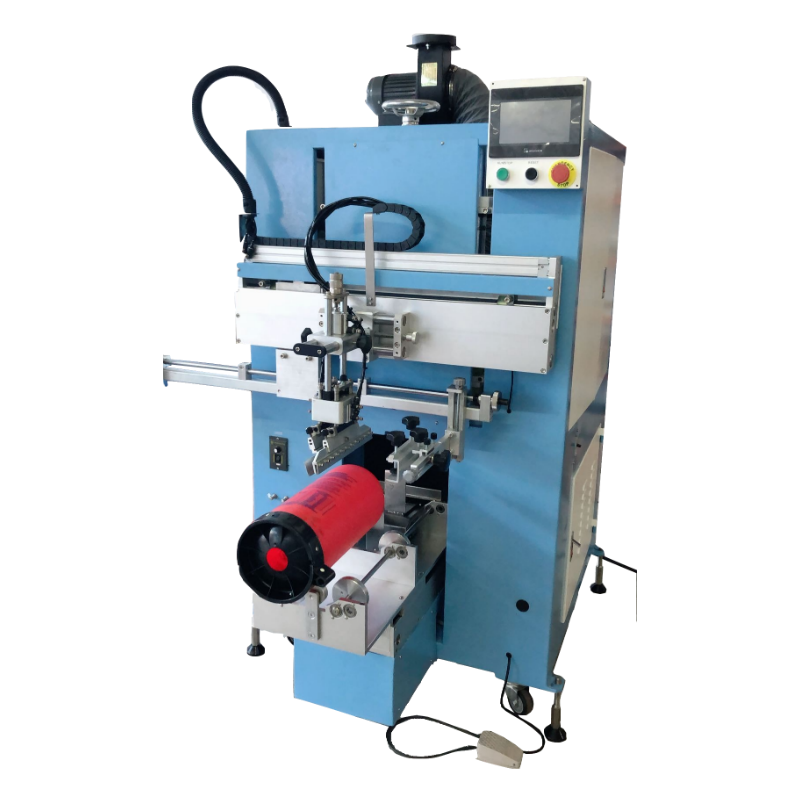

AUTOMATIC UV SCREEN PRINTING DRYING MACHINE FOR FIRE EXTINGUISHER

This machine can be used for long cylindrical printing, such as pump, water gun, water cannon, fire hydrant, crutches, ceremonial scepter, baton, fishing rod, column sound, barrel, barrel, forced gun, steel Cannon, fire extinguisher, oxygen cylinder, diving tube, ice bucket, beer keg, wine bottle, furniture, crafts, 3D human bones, medical supplies

From screen printing to UV drying, manual feeding, automatic printing, automatic drying, automatic shift to the origin, can be color-register, multi-color printing, manual unloading, printing speed adjustable, 600-800 times / hour.

Automatic screen printing UV ink, after the printing, the fixture automatically retracts to drying area, the track returns to UV drying, the middle shutter will block the UV light, after the drying is completed, the track will return to the silk screen position, the can take off the FIRE EXTINGUISHER by hand

1. Model No.: LC-600UVC
2. Product appearance: Round
3. print size: height 270mm,width 460mm
4. Max printing area:350*670mm
5. Max product gradient: <14º
6. Printing Speed: 200 PCS/H
7. Air pressure: 6 bar , 50W
8. Power supply:3phase 415V 50 hertz
9. Max UV curing round product height :270mm
10.Max UV curing Products width : 460mm
11. curing size of workpiece: Cylinder products:270X460mm
12. (United Kingdom)UV lamp power:6KW
13. UV Drying products speed：200PCS/HR

Machine main parts brand:
1.screen printer cylinder : Germany festo brand
2.uv lamp :United Kingdom Primar
3.PLC : Japan Omron
4.other parts made in Taiwan and China ,all comply with international standards
