| Model: | YRT325 |
|---|---|
| Brand: | Monton |
| Origin: | Made In China |
| Category: | Industrial Supplies / Machine Hardware / Insulation |
| Label: | YRT325 , yrt series rotary t |
| Price: |
¥60000
/ pc
|
| Min. Order: | 1 pc |
| Last Online:25 Apr, 2019 |
YRT325P5 Detailed Product Description

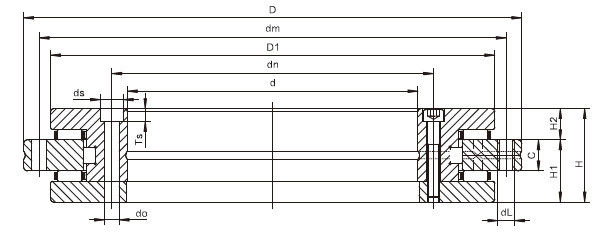

| bearing type | Dimensions | fixing holes | ||||||||||||
| d | D | H | H1 | C | D1 | J | J1 | inner ring | outer ring | |||||
| unit: mm | d1 | d2 | a | qty | d3 | qty | ||||||||
| mm | mm | |||||||||||||
| YRT325 | 325 | 450 | 60 | 40 | 20 | 415 | 342 | 430 | 9.3 | 15 | 8.2 | 34 | 9.3 | 33 |

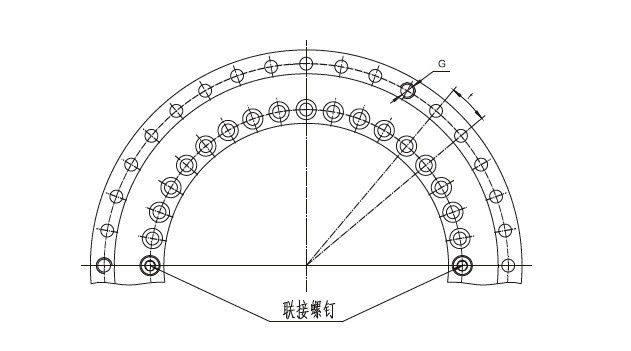

| bearing type | Number of retaining screws | Extraction thread hole | Number of pitches X angle of pitches | Screw tightening torque | Basic load rating | Limiting speed | Bearing frictional torque | weight | ||||
| axial | radial | |||||||||||
| dynamic load | static load | dynamic load | static load | |||||||||
| MA2) | Ｃａ | Coa | Cr | Cor | grease | |||||||
| G | qty | qty×t | Ｎｍ | KN | r/min | Nm | Kg | |||||
| YRT325 | 2 | M12 | 3 | 36×10° | 34 | 275 | 1930 | 120 | 345 | 170 | 40 | 25 |
| Machining tolerances for shafts | |||||||
| Bearings | shaft diameter (mm) | roundness(○) | perpendicularity(⊥) | parallelism(∥) | roughness Ra | ||
| Nominal dimension | upper | lower | t1(µm) | t3(µm) | t4(µm) | Ra(µm) | |
| YRT325 | 325 | 0 | -0.025 | 13 | 9 | 9 | 0.8 |
| Machining tolerances for housings | |||||||
| Bearings | (mm)housing diameter | roundness(○) | perpendicularity(⊥) | parallelism(∥) | roughness Ra | ||
| Nominal dimension | upper | lower | t1(µm) | t3(µm) | t4(µm) | Ra(µm) | |
| YRT325 | 450 | +0.033 | -0.007 | 15 | 10 | 10 | 0.8 |
