Temperature Limiter Electric Ceramics Auto-Reset Thermostat Washing Machines

Model:ksd301
Brand:Esun
Origin:Made In China
Category:Electronics & Electricity / Electronic Components / Other Electronic Components
Label:disc thermostat , bimetal thermostat , temperature switch
Price: US $0.18 / pc
Min. Order:500 pc
Inquire Now Add to Basket

Member Information

Detail

esun electronic sci&tech.co.,ltd

Free MemberGuang Dong - China
Live Chat:
Last Online:31 Jul, 2019

Product Description

Applications:

Drinking Fountains;Lectric Kettle;Sandwich Toaster;Dishwasher;Dryer;Disinfection Cabinet;Microwave Oven;Coffee Maker;Electric Cooker;Refrigerator;Air Conditioner;Laminator And Electric Appliances.

Specifications:

1)Certification:UL;VDE;TUV;RoHs;SGS;ISO9001

2)AC250V/10-16A,DC24V/20A

3)Bakelite body:0-120C;Ceramic Body:130-280C

4)Life time:100000 cycles.

5)Electric Strength: AC 50Hz 1800V lasted 1min, no flicker, no breakdown

6)Contact resistance: ≤ 50mΩ

7)Insulation resistance: ≥ 100MΩ

8)Normal closed:temperature rise, contacts cut off, the temperature drops, contact connected.

9)Normal opened:temperature rise, contact connected, the temperature drops, the contact cut off.

10)Housing protection: IP00

Packing:

100pcs per inner box;(2000pcs) per carton(L*W*H=45*23*26CM);G/W=13KG/Carton

Delivery time:

1)samples:3-5days

2)Mass order;7-15days

Remark:

Need more information please feel free to contact us.



Thank you visit our website!!!










Price Terms:EXW
Payment Terms:T/T
Packing:Paper Cartons
Lead Time:7-15days

Product Image

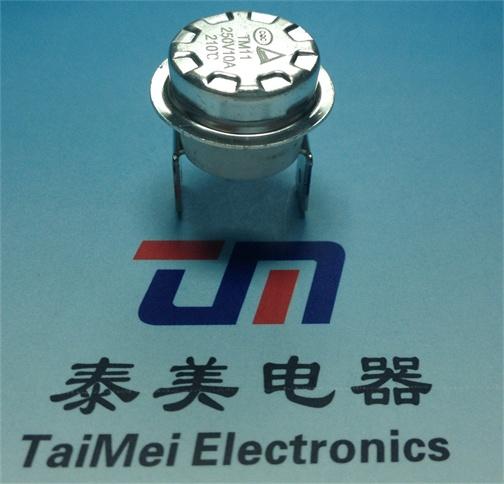

Temperature Limiter Electric Ceramics Auto-Reset Thermostat Washing Machines 1
Img 1
Temperature Limiter Electric Ceramics Auto-Reset Thermostat Washing Machines 2
Img 2
Temperature Limiter Electric Ceramics Auto-Reset Thermostat Washing Machines 3
Img 3
Temperature Limiter Electric Ceramics Auto-Reset Thermostat Washing Machines 4
Img 4
Temperature Limiter Electric Ceramics Auto-Reset Thermostat Washing Machines 5
Img 5
Temperature Limiter Electric Ceramics Auto-Reset Thermostat Washing Machines 6
Img 6
