Product Description
| POE NVR |
| Model |
4CH POE NVR |
8CH POENVR |
| System |
Main processor |
Hi3520D |
| Operating System |
Embedded Linux |
| System resources |
Simultaneous multi-channel real-time recording, playback,network operation,USB backup |
| Interface |
Operator interface |
16-bit true color graphic menu operation interface, support mouse operation |
| Preview |
1/4/8 |
1/4/8/12 |
| Video |
Video input (IP) |
4*1080P/8*960P/8*D1 |
8、4*1080P/12*960P/8、4*720P |
| Access bandwidth |
24Mbps |
48Mbps |
| Forwarding bandwidth |
24Mbps |
48Mbps |
| Video compression |
H.264 |
| Display quality |
Max 1920*1080 |
| Playback quality |
1080P/960P/D1 |
1080P/960P /720P |
| Decode |
1*1080P/1*960P/4*D1 |
2*1080P/4*960P/4*720P |
| Motion detection |
Support(depend on camera) |
| Audio |
Audio compression |
G.711A |
| Intercom |
Unsupport |
| record &play back |
Recording mode |
Manual>Alarm>Dynamic Detection>Timing |
| Local payback |
1*1080P/1*960P/4*D1 |
2*1080P/4*960P/4*720P |
| Search mode |
Search by Time/Calendar/Event/Channel |
| Record storage |
HDD、Network |
| Backup mode |
Network backup, USB hard disk,USB burner, SATA burner |
| External interface |
Video output |
1ch VGA，1ch HDMI HD output |
| Audio I/O |
0/0 |
| Alarm I/O |
0/0 |
| Network interface |
The expansion board provides a network connection |
| USB interface |
2*USB2.0 ports |
| HDD |
1 SATA(Up to 8TB for each disk) |
| ESATA |
No |
| Serial interface |
No |
| ONVIF |
Support |
| Power supply |
Expansion board 48V power supply |
| Power Consumption |
<10W(Without HDD) |
| POE IPC |
| Model |
1MP IPC |
1.3MP IPC |
| System structure |
Embedded RTOS,dual-core 32bit DSP( XM510 ),pure hard compression ,watch dog |
Embedded RTOS,dual-core 32bit DSP( XM510 ),pure hard compression ,watch dog |
| Sensor |
1.0M 1/4" H62 CMOS sensor ,color 0.1Lux@F1.2,black/white 0.01Lux@F1.2 |
1.3M 1/3" H65 Low illumination CMOS sensor ,color 0.01Lux@F1.2,black/white 0.001Lux@F1.2 |
| Video compression |
H.264,support dual stream,AVI;0.1M~6Mpbs variable;1~30f/s variable |
| Image output |
Main stream: 1280*720;sub-stream: 704*576; |
Main stream: 1280*960@22fps,1280*720;sub-stream: 704*576; |
| Noise reduction |
Support 2D/3D |
| Wide dynamic |
Support digital |
N/A |
| Network interface |
1*RJ45 10/100M adaptive Ethernet port;support RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP etc |
| Singal interface |
One photo resistance interface,one IR-CUT interface ,support photo resistance signal and IR-CUT links to IR |
| Auto iris |
N/A |
| SD Card |
N/A |
| Reliability |
Comprehensive lightning protection,in line with national and international standards; 7 * 24 hours 65 ℃ high temperature stable and reliable testing (including mounted machine testing) |
| Other function |
Support OSD,live video transmission,motion detect and IO alarm,front-end storage/playback/download, and center reminder and image inkage,support JPEG capture; united remote client monitoring sofaware、MYEYE;perfect SDK; |
| ONVIF |
Support |
| Mobile monitoring |
Support multiple mobile monitoring（iOS，Android） |
| Power |
DC12V/2A input, power consumption:≤3W |
| Explain |
Support POE power supply |

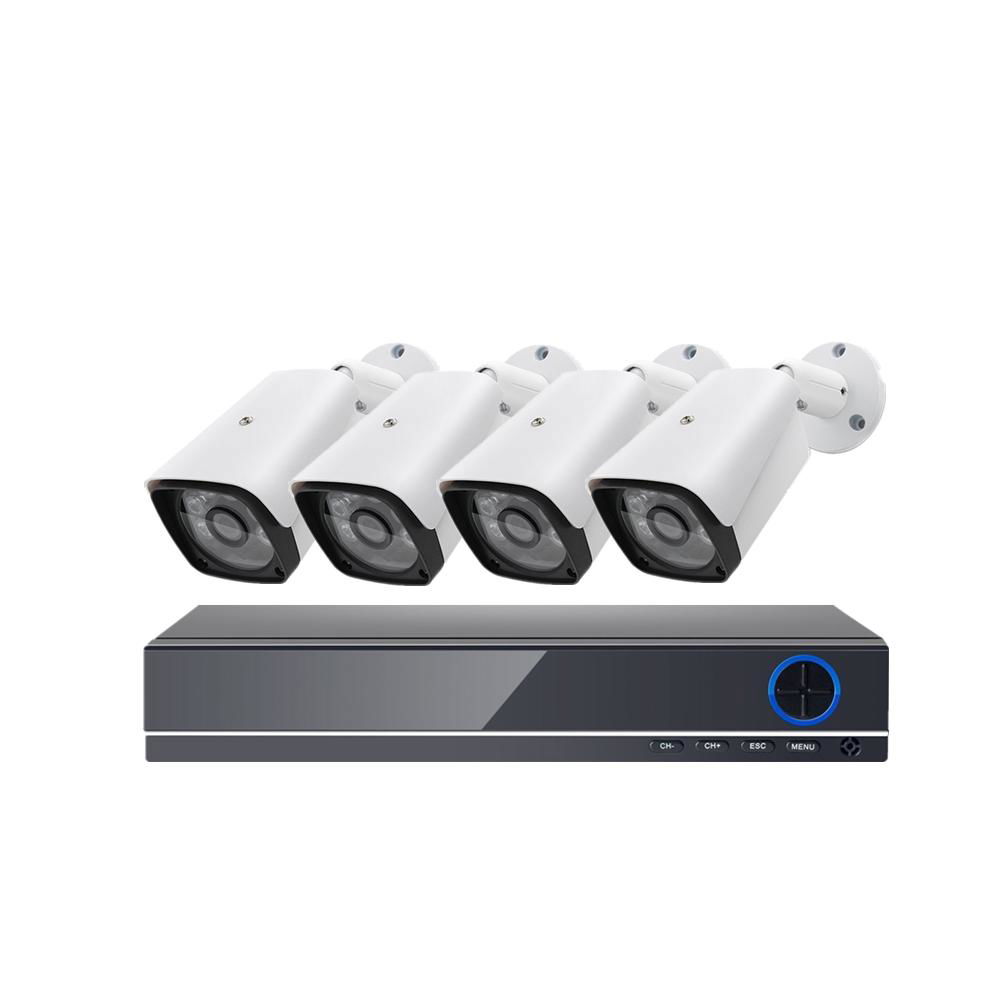

Product Image
