JAKI JK three-phase solid state relay JKAC4C75A-3FB100 JK SSR

Model: JKAC4C75A-3FB
Brand:JAKI
Origin:Made In Taiwan, China
Category:Electronics & Electricity / Electronic Components / Relay & Contactor
Label:JKAC4C75A-3FB100 , JKAC3C75A-3FB100 , JAKI
Price: -
Min. Order:-
Inquire Now Add to Basket

Member Information

Detail

Chiahang Automation Co.,LTD

Biz MemberFu Jian - China
Live Chat:Last Online:27 Jul, 2021

Product Description

Three-phase solid state relay Random trigger, AC to AC control

1. It replaces the shortcomings of heat dissipation, current resistance and voltage withstand voltage of single-phase SSR, and is inconvenient in assembly.

2. Built-in over-temperature protection system (included above 55A), the heat sink temperature is above 95°C, and it is automatically returned below 70°C.

3. Applied to load: IR tube, quartz tube, heater.

4. Small size and high capacity, the fuselage and heat dissipation are integrally formed, and the heat dissipation is optimal.

Main power supply voltage: AC 220V, 48~440V 380~480V±10%

Control voltage: AC 90~265V

Current Rating: 5A 7A 10A 15A

Horsepower: 1.5HP~7.5HP

Working frequency: 47~63Hz

Output voltage range: 0~100%

Operating environment: -10° C~50° C Humidity 90% RH or less

Insulation resistance: 20 MΩ or more (between power supply and case), 20 MΩ or more (between input signal and case)

Compressive strength: between the power supply and the enclosure 2500VAC / 1 minute, power and input signal 1000VAC / 1 minute


Product Image

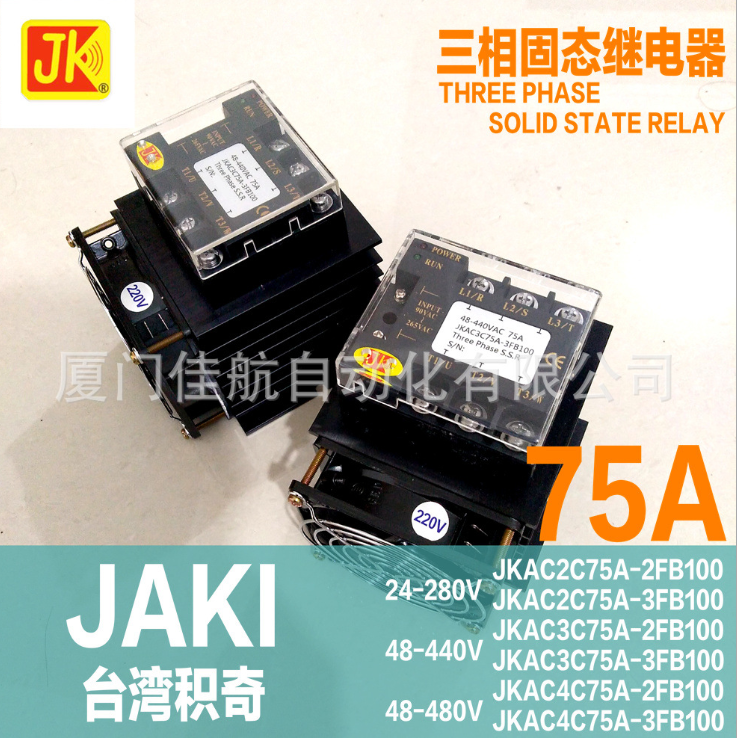

JAKI JK three-phase solid state relay JKAC4C75A-3FB100 JK SSR 1
Img 1
JAKI JK three-phase solid state relay JKAC4C75A-3FB100 JK SSR 2
Img 2
JAKI JK three-phase solid state relay JKAC4C75A-3FB100 JK SSR 3
Img 3
