| Model: | QZ-005 |
|---|---|
| Brand: | Qingzhong |
| Origin: | Made In China |
| Category: | Industrial Supplies / Construction Machine |
| Label: | Block Machine , Block Molding Machin , Concrete Cover Machi |
| Price: |
US $12000
/ set
|
| Min. Order: | 1 set |
| Live Chat: | Last Online:15 Aug, 2022 |

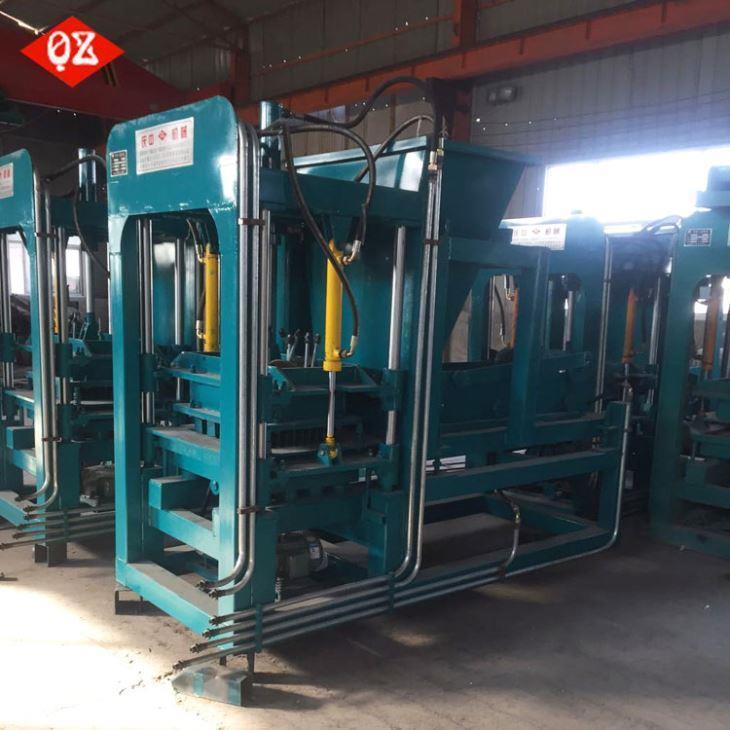

Concrete Cover Machine
The water-permeable cover blocks machine adopts hydraulic transmission, the operation is smooth and reliable, the hydraulic pressure is combined with the high efficiency vibration forming, the block quality is good.
Reasonable raw material ratio can produce high strength standard cover blocks, after forming, can stack immediately.
|
Main Technical Parameter |
|
|
Overall Dimension |
6350*1680*2850 mm |
|
Vibration Frequency |
5100 r/min |
|
Molding cycle |
15-20S |
|
Pallet size |
1050*700*30 mm |
|
Power |
29Kw |
|
Weight |
8T |
Main Features
Fully automatic,hydraulic,Mitsubishi PLC control
New type smaller ,but capacity lager,low invest
Make different kinds of Special stealth cover blocks for Bridges, High strength reinforced concrete cover block, Concrete steel protective bedding cover block, The bridge is in the shape of a plum (butterfly) cover blocks etc.
Concrete cover machine is one of the Qingzhong machinery, cover block machine equipment, the equipment structure is simple and practical, outlook is novel and attractive, in addition to produce permeable cover blocks, it is particularly suited to the production of standard cover blocks, replacement of mold can produce many kinds of cover blocks.
If you have any need, please just contact us.
Huaxian Qingzhong Machinery Factory
Christina
hxqzjxc@126.com
0086 15893802694
| Payment Terms: | T/T,L/C |
|---|---|
