| Model: | EL-350LS |
|---|---|
| Brand: | S4A |
| Origin: | Made In China |
| Category: | Security & Protection / Other Security & Protection |
| Label: | magnetic kit , magnetic and bracket |
| Price: |
US $15.2
/ pc
|
| Min. Order: | 1 pc |
| Live Chat: | Last Online:02 Apr, 2019 |
S4A Industrial Co.,Limited is a manufacturer of access control products .
we specialize in this line for decade.
We focus on "Electromagnetic Lock" "Standalone Access controller " "UHF Long range reader" "RFID Access Card reader".etc ,
S4A believe that long term business always is a win-win strategy.
If you ready to have a try,pls email :sales1@s4a-access.com .
and take a glimpse of our website :www.s4a-access.com .
Here is details for EL-350LS:

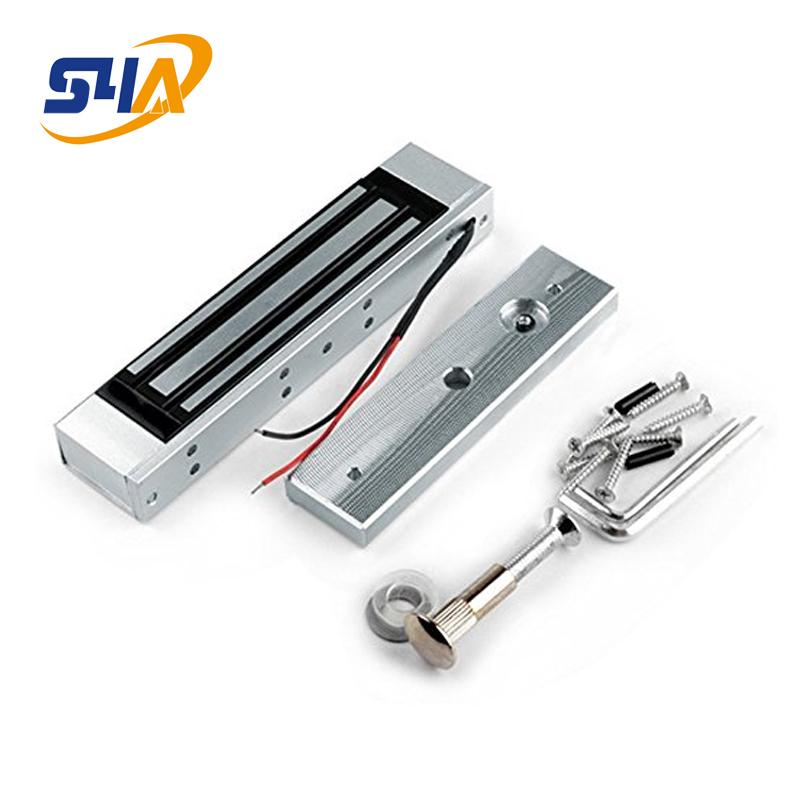

180KG Single door EM lock with 5wires
1: Voltage: DC12V or DC24V
2: Holding Force: 180KG(350Lbs)
3: Lock Size: 200Lx41.7Wx21.7H(mm)
4: Current Draw: 12V/300mA 24V/150mA
| Item | Parameter |
| Lock Size | 200Lx41.7Wx21.7H(mm) |
| Armature plate | 130Lx33Wx10.5H(mm) |
| Holding Force | 180KG(350Lbs) |
| Voltage | DC12V or DC24V (24V need to customize) |
| Current Draw | 12V/280mA 24V/150mA |
| Suitable for | Wooden door , Glass door ,Metal door , Fireproof door |
| Finishes for Shell | Anodized aluminum surface texture processing |
| Finishes for Magnetic | Zinc |
| Finishes for Armature | |
| Weight | 1.2kg |
