Yttrium Stabilized Zirconium Oxide Ceramic Grinding Media Balls

Model:TG-B-YSZ
Brand:TOGOAL
Origin:Made In China
Category:Industrial Supplies / Chemical Machinery
Label:zirconia balls , grinding media ball , ball mill media
Price: US $85 / kg
Min. Order:1 kg
Inquire Now Add to Basket

Member Information

Detail

Hunan Togoal Instrument & Equipment Co., Ltd.

Free MemberHu Nan - China
Live Chat:
点击这里给我发消息Last Online:23 Apr, 2019

Product Description

Togoal Yttrium Stabilized Zirconium Oxide Ceramic Grinding Media Balls






Overview

      Highly polished Yttrium stabilized zirconium oxide balls, 60 times the hardness of regular steel, highly wear-resistant and resistant to acid and solvents. Different sizes of zirconium oxide grinding balls available: 3mm, 5mm, 10mm, 15mm, 20mm etc. The grinding media balls are extensively applied to in the fields of Paint, Ink, Geology, Metallurgy, Electronics, Construction Material, Ceramics, Chemical Engineering, Light Industry, Medicine, Environmental Protection and so on.



Features

1. High cost-effective, low wear and long lifetime

2. High specific gravity, high efficiency

3. Highly wear resistant to acid and solvents

4. Highly polished, smooth, easy to clean, low abrasion to the equipment

5. High mechanical strength, good toughness, impact resistance, no broken beads

6. Mainly used for lab planetary ball mill machine



Technical Data

Item No.:

TG-B-YSZ

Main Material

zirconium oxide -ZrO2

Ball Diameters:

3/5/10/15/20mm

Shape:

sphere

Density:

6.06 kg/dm3

Color:

milk white

Hardness:

9 Mohs

Compatible Ball Mill Jars:

zirconia jar, PA jar, PP jar, PU jar, PTFE jar, HDPE jar

Abrasion Resistance:

very good

Suitable for:

fibrous, abrasive samples



Photo Gallery of Zirconia Ceramic Balls



























Material Data for Zirconia Balls

Material Specification

ZrO2

Y2O3

TiO2

SiO2

P

S

N

94.48%

5.15%

0.0018%

0.007%

0.035% Max

0.03% Max

0.25% Max

Physical Properties

Corrosion resistance

 Excellent

Density

 6.06 g/cm3

Max working temperature

 400°C

Crushing Load (KN)

 20( Ø 2mm)min

Size Range

3/5/10/15/20mm

Hardness

9 Mohs



Number and Size of the Balls

1. Pregrinding the coarse, hard material with large balls

2. Use of many small balls will increase the fine fraction if the running time is increased

3. A higher mass (spec. weight) of the grinding balls will accelerate the grinding

4. Size of the Grinding Balls

Type of feed material

Ball diameter

Hard samples feed particle size <10 mm

30 mm or 40 mm

Medium piece size (<5 mm)

20 mm

Fine material (0.5 mm)

10 mm or 5 mm

Homogenisation of dry or liquid samples

10 mm

Homogenisation of viscous samples

20 mm

These are just clues: the size of grinding jars and grinding balls should be determined experimentally if necessary.



Material Data of Grinding Tools

Material

Main component

Density (g/cm3)

Abrasion resistance

Use for material to be ground

Agate

SiO2

2.65

Good

Soft to medium-hard samples

Sintered corundum

Al2O3

3.8

Good

Medium-hard, fibrous samples

Silicon nitride

Si3N4

3.25

Excellent

Abrasive samples, metal-free grinding

Zirconium oxide

ZrO2

6.06

Very good

Fibrous, abrasive samples

Stainless steel

Fe –Cr –Ni

7.93

Good

Medium-hard, brittle samples

Tempered steel

Fe –Cr

7.65

Good

Hard, medium-hard, brittle samples

Tungsten carbide

WC

14.95

Very good

Hard, abrasive samples

Polypropylene disposable jar

MC/PA/PTFE/PU/HDPE/PP

**

Good

For homogenisation


      Thank you for choosing grinding parts or accessories from TOGOAL. As a professional supplier of application-oriented laboratory instruments for sample preparation and particle size analysis, we offer you outstanding quality.

      Our packaging is designed for world-wide transport; nevertheless, transport damage may occur in individual cases. Please check the product upon delivery or no later than during unpacking.

      Grinding parts are wearing parts and are therefore not subject to the normal guarantee. We hope you will understand that we cannot accept complaints regarding grinding parts that have already been used.



Related Grinding Balls




Related Planetary Ball Mills

vertical-400ml-togoal-17



Guarantee & After-sale Services

Grinding parts are wearing parts and are therefore not subject to the normal guarantee.

Complaints cannot be accepted regarding grinding parts that have already been used.

Free replacement for defective parts due to manufacturing.

Transport damage may occur in individual cases. Please check the product upon delivery or no later than during unpacking.

TOGOAL reserves right to inspect all defective claims.



Payment & Shipping Terms


1. By FedEx /DHL /UPS /TNT /EMS door to door services.

2. By Air or by Sea for batch goods; for FCL. You'll have to pick up the goods at the airport or port.

3. Customers specifying freight forwarders or negotiable shipping methods are available.


1. Payment: 100% T/T, Western Union, PayPal or Alibaba Trade Assurance in advance;

2. No MOQ;

3. Grinding jars are wearing parts and are not subject to the normal guarantee.



Hunan Togoal Instrument & Equipment Co., Ltd.

factory-1



Please feel free to contact us for further details and quotations.


Payment Terms:T/T, Western Union, Alibaba Trade Assurance

Product Image

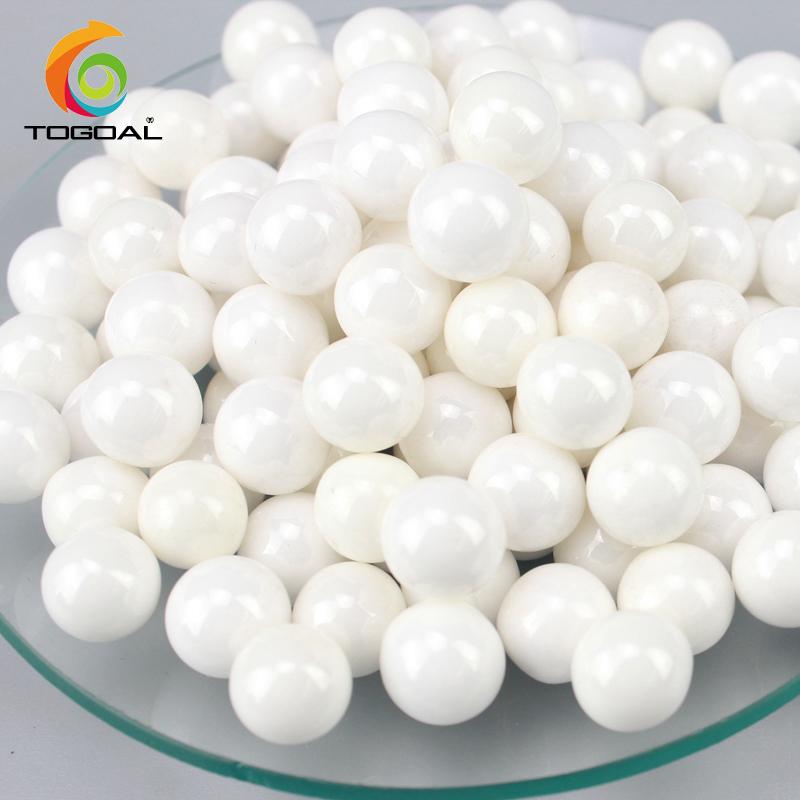

Yttrium Stabilized Zirconium Oxide Ceramic Grinding Media Balls 1
