13 Spindle High Speed Shoelace and Rope Braiding Machine

Model:DR-13
Brand:DURA
Origin:Made In China
Category:Industrial Supplies / Shoes & Accessories Machine
Label:Braiding Machine , Winding Machine , Textile Machine
Price: ¥2545 / set
Min. Order:1 set
Inquire Now Add to Basket

Member Information

Detail

SHANGHAI DURA INDUSTRIAL CO.,LTD.

Free MemberShang Hai - China
Live Chat:
点击这里给我发消息Last Online:08 Aug, 2023

Product Description

The 13 spindle High speed braiding machine mainly used to produce flat type shoelace or tape, Piping Tape, Jacquard Tape, Elastic Band, Fibre Band, Various Rope, Special Band and so on.
Advantages:
1.Base casting was machined in machining center after aging treatment to ensure the flatness.
 2. Panel uses ductile iron 800, was machined in machining center after aging-treatment to ensure its precision and wearing.
 3. Core shaft rotor(impeller) uses ductile iron 600, firstly machined in machining center, high-frequency treatment on its surface to enhance its hardness, then machined by precision grinder.
 4. Tolerance of fit between Spindle base and impeller is controlled within 0.03mm.
 5. Rotor nylon pad was casted by nylon 66 with imported wearing-grease to make it last long.
 Characters:
Adopts high-quality shafts, reasonable structure, to ensure a stable function and longer lifespan.
Humanization design, safe and easy operation, direct and convenient maintenance. Reasonable spindle structure ensures customers to change the Bobbin in a fast and simple way.
This equipment uses auto yarn cutting device.
Motor uses frequency converter to change the speed freely.
Standard accessories kit and complete after-sale service.
Specification:

Model: DR-13
Machine Size (mm) 1150 x 450 x 1700
Bobbin Dimension 48*140MM
Production Heads 4
Carriers Per Head 13
Max. R.P.M. 300
Motor Power (kw) 0.75
Voltage 220/380/VAC, 50/60HZ
Max. M.P.H 60 x 4


Quality Control: All the machines will be inspected carefully before delivery.
Oversea service: We have agent in different countries, so oversea service is available.
Certificate: CE

Packing: The quantity under 10 sets packed in single wooden case, over 10 sets order will load in full container.

Delivery Time: Order quantity smaller than 10 sets, delivery time is 20 days; order quantity over 10 sets, the delivery time is 30 days.



Product Image

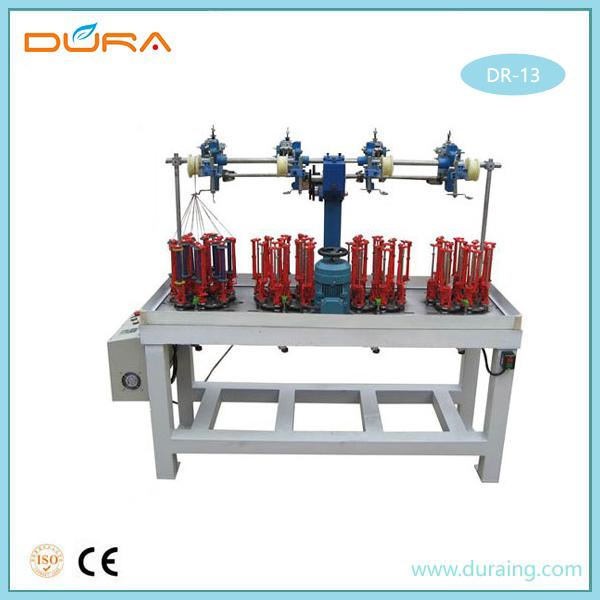

13 Spindle High Speed Shoelace and Rope Braiding Machine 1
Img 1
13 Spindle High Speed Shoelace and Rope Braiding Machine 2
Img 2
13 Spindle High Speed Shoelace and Rope Braiding Machine 3
Img 3
13 Spindle High Speed Shoelace and Rope Braiding Machine 4
Img 4
