Lab Chemical Jacketed Glass Reactor Price

Model:NB-50L
Brand:Nanbei
Origin:Made In China
Category:Chemicals / Chemical Lab Supplies
Label:Reactor , Chemical Reactor , Glass Reactor
Price: US $625 / pc
Min. Order:1 pc
Inquire Now Add to Basket

Member Information

Detail

Product Description

Lab Chemical Jacketed Glass Reactor price


Brief introduction of jacketed glass reactor:
The kettle body is designed by double glazing glass reactor, the inner layer into the reaction solution to do the reaction was stirred interlayer can pass into the type of the cold heat source circulating heating or cooling the reaction can also be used in high temperature, low temperature, or vacuum experiment reflux and distillation of the reaction solution. It is the ideal equipment for primary and secondary schools of modern chemistry experiments, biopharmaceutical and synthesis of new materials.

Features:
1. A full set of glassware with GG3.3 borosilicate glass production with good chemical and physical properties
2. Limit temperature of 250C for high temperature experiments, and limit temperature of -60C for low temperature experiments.
3. Titanium ring, new titanium alloy mechanical seal, sealing 0.098Mpa.
4. The PT100 temperature, and is a liquid crystal display. More accurate temperature measurement and more convenient.
5. Frequency control, AC induction motor. Constant speed, brushless, no spark, security and stability, and continuous work.
6. Quality 304 stainless steel all-inclusive PTFE stirring rod and a three-bladed propeller structure.
7. The bottom flanged discharge port with a Teflon value, aluminum parts flange fixed container no dead ends.

Parameter for large double layer glass reactor:


Model NB-10L NB-20L NB-30L NB-50L NB-100L NB-150L NB-200L
Glass Material GG-17
Frame Material 304 Stainless steel
Moving mode Brake type universal corner wheel
Reaction bottle capacity 10L 20L 30L 50L 100L 150L 200L
Jacketed Capacity 6L 8L 10L 12L 18L 23L 28L
Flanged out of the oil circulation port Low feed high outlet
Reaction bottle cover port 6ports
Discharger port distance to ground 450mm
Temp. range  -80-250°C
Vacuum  0.098Mpa
Stirring speed 0-450rpm 0-450rpm 0-450rpm 0-450rpm 0-450rpm 0-280rpm 0-280rpm
Stirring diameter 12mm 12mm 12mm 12mm 15mm 15mm 15mm
Stirring power 90W 90W 120W 120W 250W 750W 750W
Voltage(V/Hz) 220V/50Hz
Dimension(mm) 520*520*2000 560*560*2100 760*560*2300 760*560*2450 610*610*2400 1250*850*2920  1300*900*3400
Packing size(mm) 1370*590*800   1480*660*810 1720*680*850 1720*680*850 1900*700*870 2200*930*1350 2300*930*1350
Packing weight(KG) 68 80 88 92 125 180 190


We also have

1-5L small jacketed glass reactor:

Model NB-1L NB-2L NB-3L NB-5L
Glass Material GG-17
Frame Material 304 Stainless steel
Reaction bottle capacity 1L 2L 3L 5L
Jacketed Capacity 0.4L 0.5L 0.6L 0.8L
Flanged out of the oil circulation port Low feed high outlet
Reaction bottle cover port 5 ports
Discharger port distance to ground 30mm
Temp. range  -80~250ºC
Vacuum  0.098Mpa
Stirring speed 0-800rpm
Stirring diameter 8mm
Stirring power 40W 40W 90W 90W
Power(V/Hz) 220V/50Hz
Dimension(mm) 350*345*1000 350*345*1000 350*410*1250 350*410*1250
Packing size(mm) 1200*480*400 1200*480*400 1380*500*400  1380*500*400
Packing weight(KG) 32 32 38 38kg

Product Image

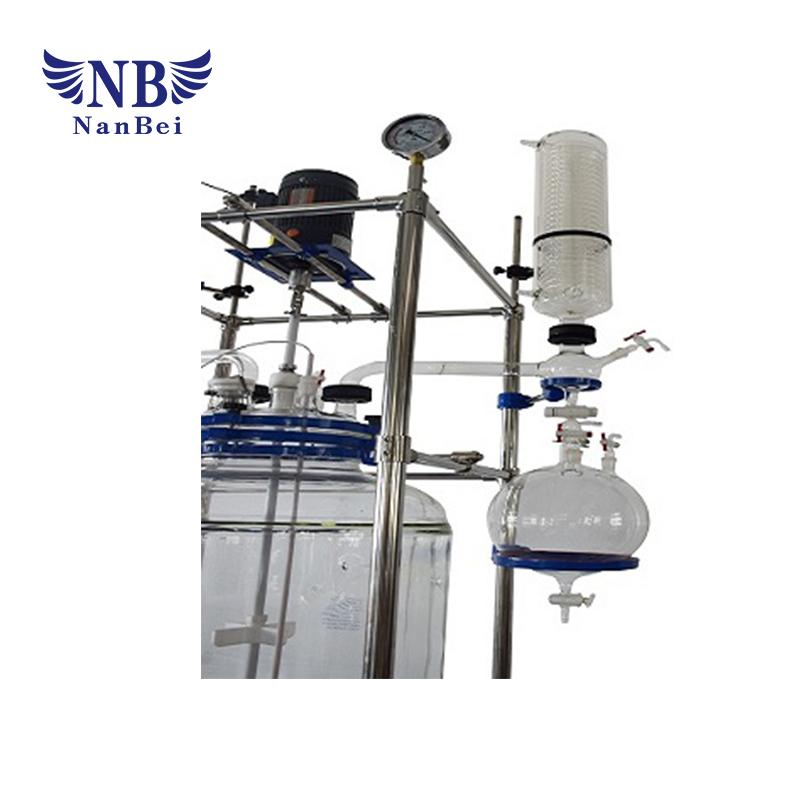

Lab Chemical Jacketed Glass Reactor Price 1
Img 1
Lab Chemical Jacketed Glass Reactor Price 2
Img 2
Lab Chemical Jacketed Glass Reactor Price 3
Img 3
