8pcs Set Shipping ISO1161 Container Corner Castings

ISO1161 Container Corner castings are the corners of a shipping container.  They are the structural element allowing a shipping container to be connected to: (1) other containers both horizontally and vertically, and (2) transport modes including ship, rail, and road.  In addition, corner castings allow shipping containers to be picked up and moved around as required.

Our container corner fittings are manufactured and tested, which is super high quality in accordance with ISO 1161 requirements for ISO shipping containers.

Material: SCW480 casting steel

Standard:ISO1161

Finish:Painting

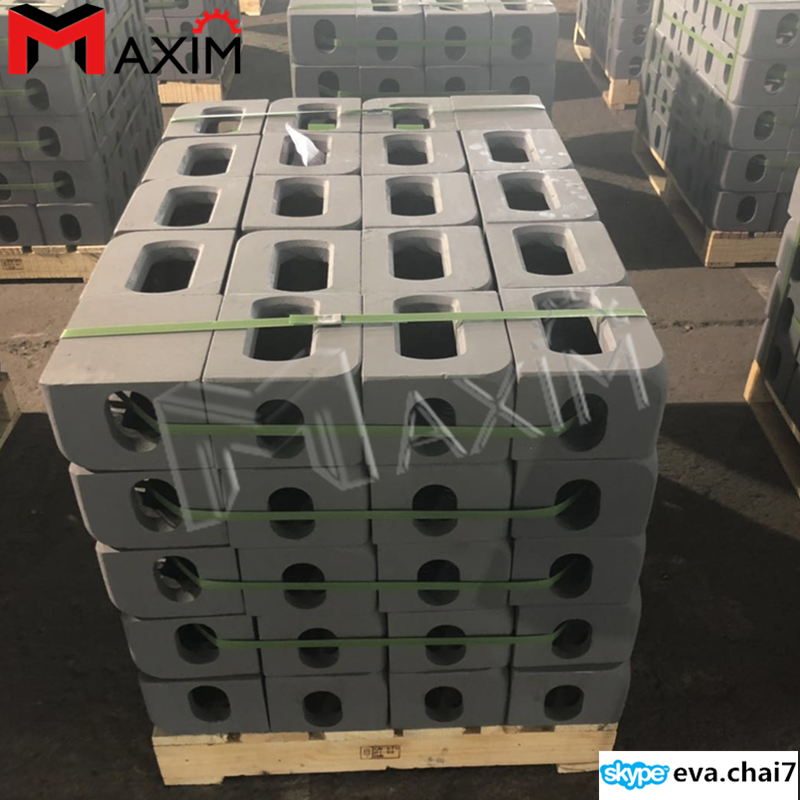

Package:100 set/pallet

A standard 96" wide ISO container uses 8 corner castings consisting of:
Top Left - 2 pcs
Top Right - 2 pcs
Bottom Left - 2 pcs
Bottom Right - 2 pcs

 The top corner fitting has a shape side hole whereas that of the bottom corner fitting is a semicircle.  Such shape and dimensions are dictated by ISO 1161.

All 8 corner castings of an 96" wide ISO container,  they work with the corner posts and the other basic components of the container frame to absorb the forces that locking units or lashings exert when containers are stacked on top of one another, and during handling and transport.

In addition to carbon steel material, we have corner fittings available in stainless steel and aluminum
