I. The technical flow of the production line

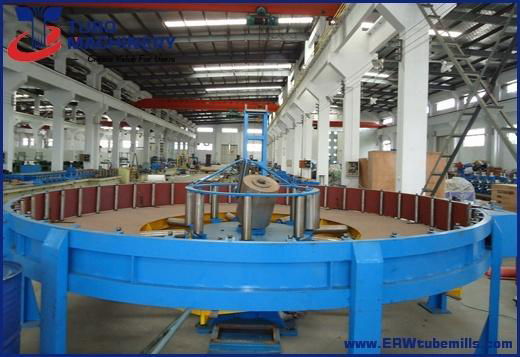

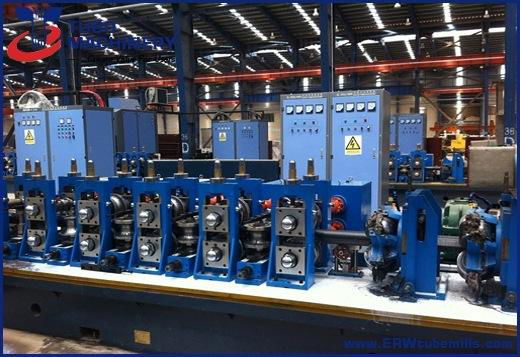

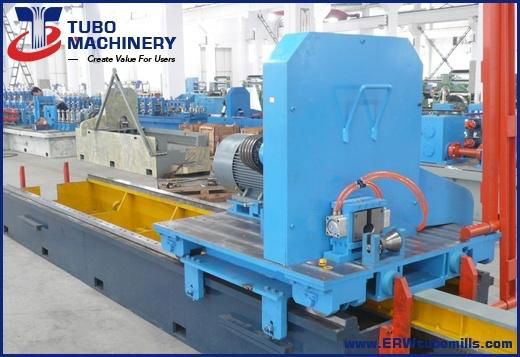

{SteelTape} → Hydraulic Single Mandrel Uncloier → Automatic Butt Shear & Welder →Spiral Accumulator → Forming section(Flattening unit +Main driving unit +Forming unit +Guide unit +High frequency induction welding unit +squeeze roller)→Remove inner burr device → Zinc Patching→Cooling unit → Sizing Section and straightener → Cutting Saw → Run-out table
II. Basic conditions:
| 1. Production Capacity | |
| Round Pipe | 38mm - 127mm |
| Square & Rectangular | 30*30 - 100*100(120*80)mm |
| Wall Thickness | 1.0 - 4.0mm (Round Pipe);
1.0 - 3.0mm(Square Pipe) |
| Speed | Max.80mm |
| Pipe Length | 6m – 12m |
| 2.Steel Strip Specification | |
| Material | Low Carbon Steel,Q345, Q235, Q195 |
| Coil I.D. | 460 - 510MM |
| Coil O.D. | Max. 1800mm |
| Strip Width | 120mm – 400mm |
| Strip Thickness | 1.0mm – 4.0mm |
| Max. Weight | 4000kgs |
| 3. Electricity | |
| Dynamic power: | 380V, 3 phases, 50Hz (Depending On Local) |
| Control Power: | 220V, one phase, 50 Hz |
| 4. Solid State High Frequency Welder: 300Kw | |
| 5. Electric installed capacity: Approx. 600KW | |
| 6. Cooling Water | |
| Reservoir for High Frequency equipment: | 30m³, one set |
| Reservoir for circulating cooling water: | 30m³, one set |
| 7. Compressed Air | |
| Pressure | 0.5MPA |
| Flow | 0.8m3/hour |
| 8. Line Speed: Max.80m/min | |
| 9. Size of Whole Line: 70m X 6m (Length X Width) | |
We always design and make each line according to each customer's specific requirements, so each customer can buy his own well-content line from us.
