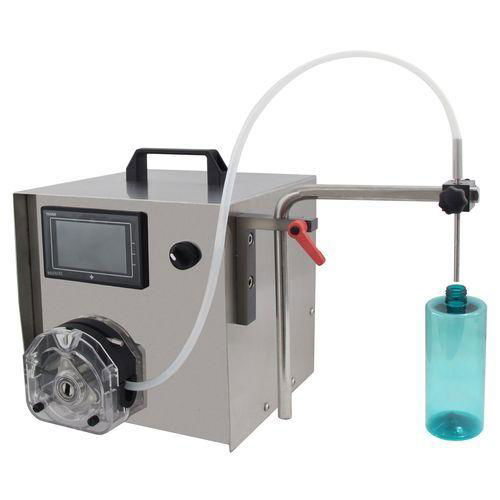

Tabletop Peristaltic Pump Liquid Filling Machine FT-100 is the best system to avoid contamination, product is only in contact with the medically approved tubing and the nozzle, against cross contamination and easy cleaning. Without having to change anything but the dimension of the tubing in use. The target market is small to medium-sized batch production that requires flexibility, high precision and efficiency.
FEATURES:
Easy to set, even if the novice can also with ease
With peristaltic pump, product is only in contact with the tubing
Made of SUS 316 and 316L stainless steel ,meets cGMP requirement
LED display, easy adjusting filling volume, speed and between filling
Draws liquids directly from a tank or drum, or add a hopper if need
Without any change parts other than tubing
Three operating modes: manual , intermittent filling or foot switch
Three kind of filling velocities are available
Apply liquid like water, eye drops, lotion, hot sauce(under 60℃) or any other free flowing liquid
OPTIONS:
3.5L stainless steel tank
Heater (under 140℉/ 60℃)
Diving nozzle with bracket
Foot switch
Photocell activation
Vacuum nozzle
SPECIFICATIONS:
Power: single phase 110/220VAC, 50/60Hz
Filling Range: 30~500ml
Filling Speed: 5~50ml/sec
Accuracy: 0.5%~1%
Machine Dimensions: (L)360mm (W)580mm (H)325mm
(For reference only, the real drawing should be considered as final.)
