| Model: | L70 |
|---|---|
| Brand: | bmv technology |
| Origin: | Made In China |
| Category: | Services / Therapies |
| Label: | veterinary ultrasoun , ultrasound machine f , farm ultrasound |
| Price: |
-
|
| Min. Order: | 1 pc |
| Live Chat: | Last Online:08 Nov, 2022 |
New Professional FarmScan® L70 for Animal Science, Backfat, Muscle Scoring
【Application】
【What’s new】
BMV Technology Co., Ltd announces that FarmScan® L70, the Second Generation ultrasound Long Linear Probe for Back-fact is released now.
FarmScan® L70 back-fat scanner fits with an 150mm,3.5Mhz Linear array transducer and probe standoff, the best to measure the diameter of the loin and the measurement of backfat and loin in a single image, all measured in tenths of a millimeter.
PROBE:
Specific designed linear probe 155 mm long to measure back-fat, perimeter and area of loin. It has a large image resolution and precision in tenths of mm

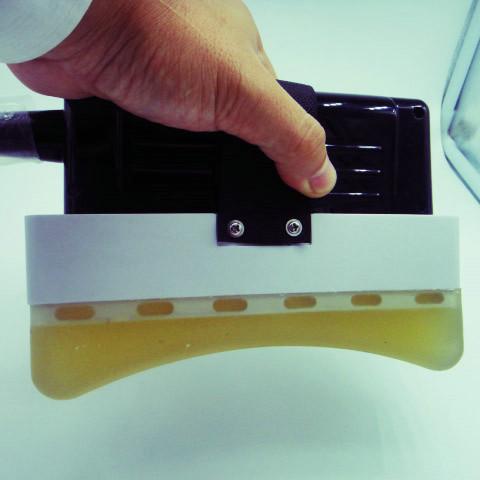

Standoff for measurement of perimeter and area of loin
This standoff is necessary for full display of loin eye in a transverse exploration, to perform the perimeter and area measurement.
[Specification]
|
Scanning method |
Linear Electronic |
|
Probe |
Linear Back Fat 2.5/3.5/5MHz |
|
Monitor |
5.8 LCD |
|
Battery |
2800mAh,working time up to 4.5 hours |
|
Gain |
Near, far and total gain |
|
Grey shades |
256 levels |
|
Main measurements |
Distance, perimeter, area and volume |
|
Cine loop |
516 frames |
|
Focal points |
2 adjustable electronic focusing |
|
Video output |
Video output and 2 *USB ports |
|
Scanning depth |
70—170 mm |
Specification for BackFat probe:
150 mm length, 96 crystal elements ; Resolution: ≤1（depth≤80）；≤2（80＜depth≤130）
