| Model: | - |
|---|---|
| Brand: | GT |
| Origin: | Made In China |
| Category: | Construction & Decoration / Ceiling |
| Label: | Mineral FiberCeiling , Ceiling Board , Fiber Ceiling Tiles |
| Price: |
US $3.5
/ pc
|
| Min. Order: | 2000 pc |
| Live Chat: | Last Online:26 Feb, 2019 |
Details

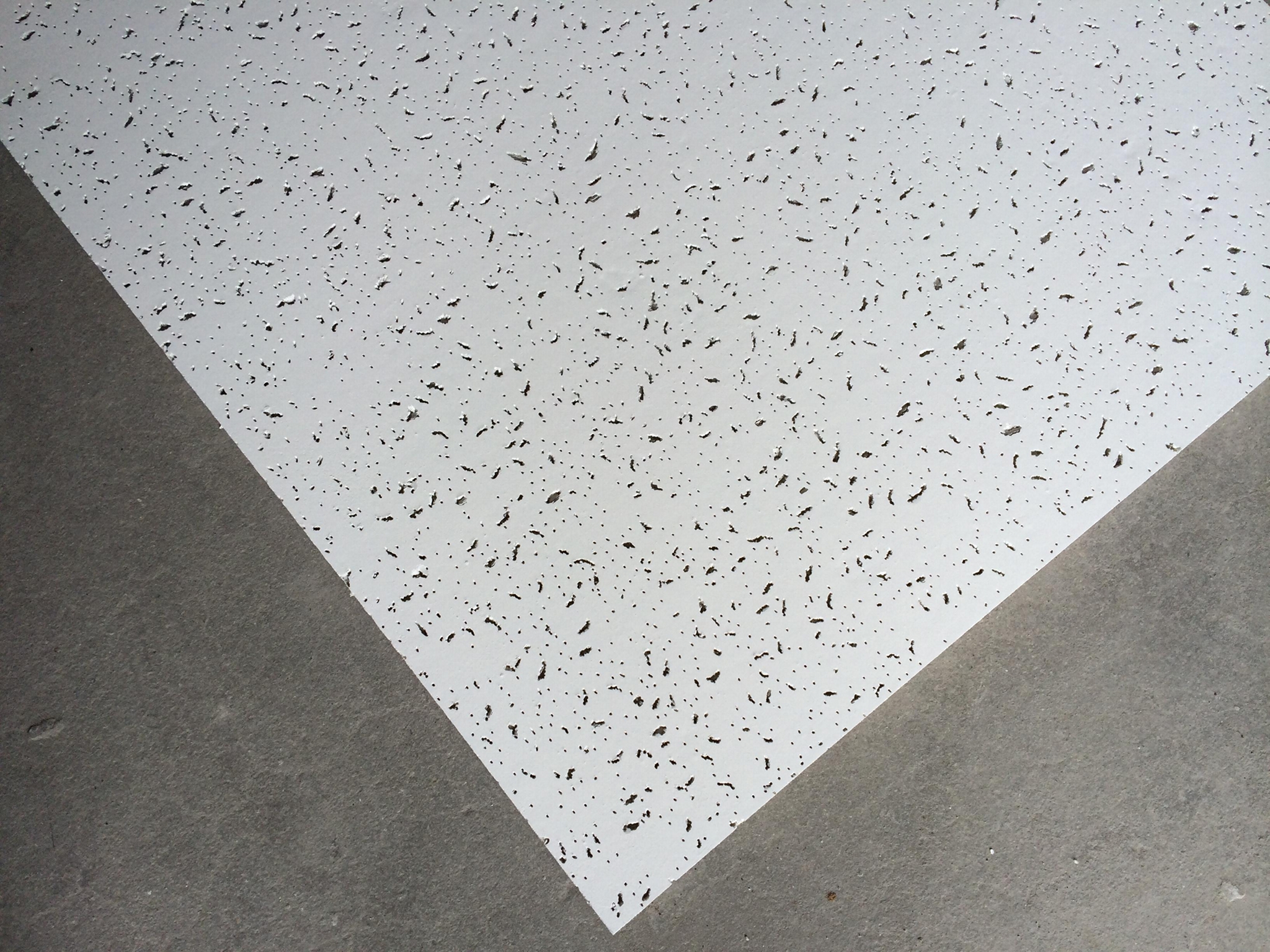

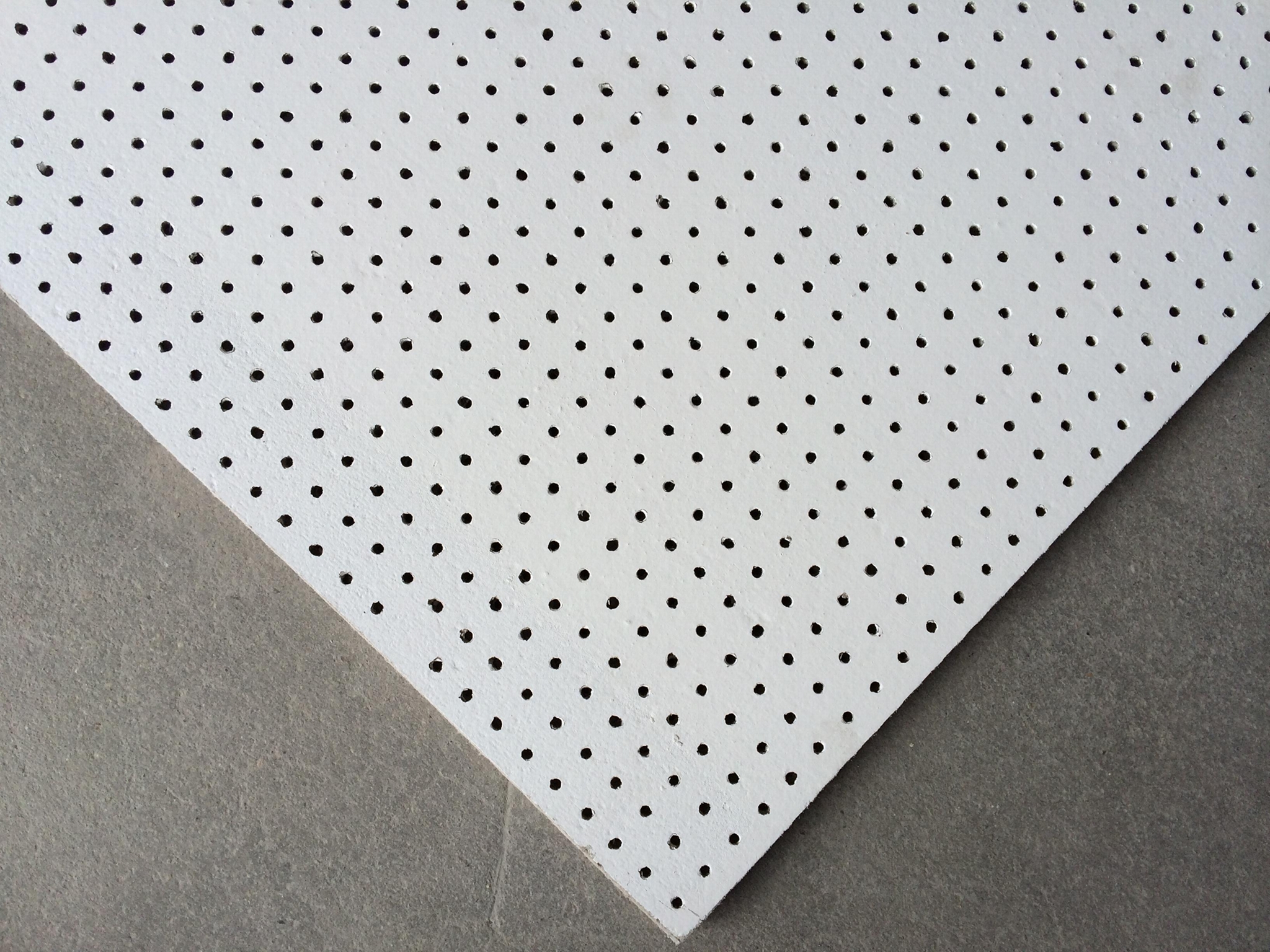

Our company has exported ceiling tiles for over 16 years. Till now we can produce more than 18 kinds pattern of mineral fiber ceiling tiles. Those products provide heat insulation and soundproof, which is a durable, versatile choice for many environments:Offices - Retail&Hospitality- Corridors- Auditorium,Cafeteria- Theaters- Libraries- Lounges- Shops- Canteens etc.
Our mineral fiber ceiling tiles can be recycled and reused. They are marketable in many countries,such as Middle East, Africa, Europe, South America, Australia etc.
Product Specifications & Features
|
ProductItem No. |
Panel Size |
Edge Profiles |
NRC |
CAC |
LR |
Fire Class |
Color |
RC |
|
HBGT-TY |
600X600X10MM |
Square Edge
|
0.55-0.70 |
35 |
0.86 |
Class B |
White/Black |
66-83% |
|
HBGT-TY |
600X600X12MM |
Tegular Edge
|
0.55-0.70 |
35 |
0.86 |
Class B |
White/Black |
66-83% |
|
HBGT-TY |
600X600X15MM |
Mic-Tegular Edge
|
0.55-0.70 |
35 |
0.86 |
Class B |
White/Black |
66-83% |
|
HBGT-TY |
600X600X16MM |
Shadowline
|
0.55-0.70 |
35 |
0.86 |
Class B |
White/Black |
66-83% |
|
HBGT-TY |
600X600X17MM |
Interline
|
0.55-0.70 |
35 |
0.86 |
Class B |
White/Black |
66-83% |
|
HBGT-TY |
600X600X19MM |
Besk
|
0.55-0.70 |
35 |
0.86 |
Class B |
White/Black |
66-83% |
FEATURES:
Material: High Quality Mineral Wool
Surface coating: Vinyl Emulsion Paint
Thermal Conductivity: <=0.065W/mk
Density:280-320kg/m³
Environment protection：No asbestos
RH(Humidity Resistance):Above 90%
Sound Insulation Grade:
30Min Good acoustical performance
Fine texture surface for a clean and contemporary look
RH:75/80/90%
Production Process & National Standards
Quality Control
The national quality inspection standard of mineral fiber ceiling tiles
· 1.Appearance quality:
The front should not this items affect the decorative effect : the scratch, color different, pattern is not complete etc. Products should not have cracks, damage, distortion, which can’t effect the decoration.
· 2.Size tolerance:
Length+/- 0.5mm; Width+/- 0.5mm;
Thickness+/- 0.5mm
· 3.Combustion performance:
Should meet the requirements of GB 8624-1997 B1 in the level, the performance requirements of up to Alevel of products, the two sides agreed by the supplyer and buyer.
· 4.Moisture deflection:
Wet absorption plate of the moisture deflection should be no more than 3.5mm The dry absorption plate of moisture deflection should be less than 1.0mm
