High efficiency and less noise copper belt crimping machine

Model:XX-04MP
Brand:-
Origin:Made In China
Category:Industrial Supplies / Industrial Supplies Stocks
Label:copper belt crimping , wire crimping machin , copperbelt blincing
Price: -
Min. Order:1 pc
Inquire Now Add to Basket

Member Information

Detail

Kunshan Xuxin Industrial Equipment Co.,Ltd

Biz MemberJiang Su - China
Live Chat:
点击这里给我发消息Last Online:14 Sep, 2021

Product Description

Contact: Lora Tang

Mobile: +86-17751717336 ( whatsapp& wechat)



Application score:

The connection with neon resistance, LED and wire connection.

Sliding switch connected with wire (instead of soldering)

Connection of high temperature heating body

Connection of sensitive elements (reed switch, thermostatic fuse)

Tap and wire connection of transformer

Headset line card casing line is fixed.

Enamel wire and lead wire connection.



Features:

1, using high-strength steel plate combination, full CNC machining of blanks, to ensure size and shape tolerance.

2, using power 750W large motor and large turbine transmission power, the output increased by 50%.

3, using double cylinders before and after the active feeding, to ensure the feeding accuracy, adjust the material length is more simple and convenient.

4, using industrial surface coating, more environmentally friendly and more beautiful and more durable.

5, the operation panel is perpendicular to the human face, and the observation parameters and settings are made. The position of the pay-off operation is reduced to the height of the human body, and the hand can support the machine base, which is not easy to fatigue.

6. The upper and lower tool positions have been controlled by the shape and position. When the tool is changed, the lock can be locked at the specified position, and the commissioning and maintenance is simpler.



Parameters:

Model: XX-04MP(Precision type)

Power source: AC110V/220V 50HZ

Motor: Asynchronous motor AC220/ 750W

Energy consumption: Work times under 6000, only need 0.15 kwh per hour (no load)

Crimping capacity: 3T

Applicable Copper-belt : 1-6MM, All can be applied. Need to change mold when The copper belt replaced

Operation: Pedal mode

Volume: 430*430*430mm

Weight: 46KG

Stroke: 23mm


Product Image

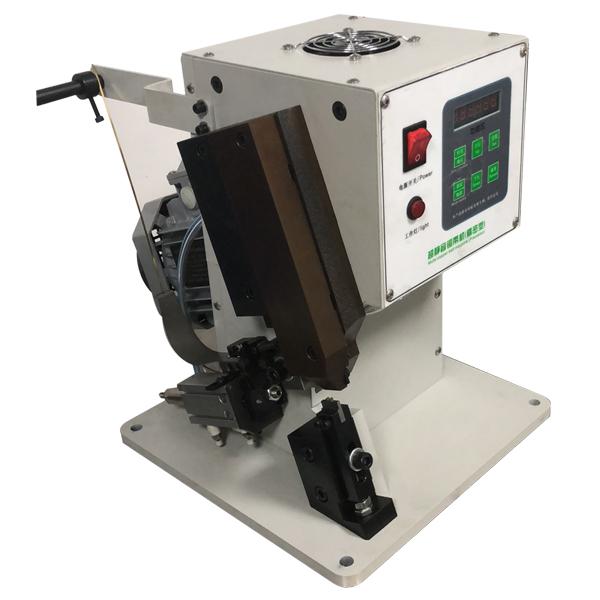

High efficiency and less noise copper belt crimping machine 1
Img 1
High efficiency and less noise copper belt crimping machine 2
Img 2
High efficiency and less noise copper belt crimping machine 3
Img 3
