Double / 2.5 Layer Forming Fabrics Forming Wires

Model:-
Brand:XH
Origin:Made In China
Category:Industrial Supplies / Paper Machinery
Label:double layer fabrics , 2&half layer fabric , forming fabrics
Price: US $10 / sqm
Min. Order:30 sqm
Inquire Now Add to Basket

Member Information

Detail

Xinghua Mesh Industry Co., Ltd.

Free MemberHe Nan - China
Live Chat:
Last Online:22 Apr, 2019

Product Description

Product Description:

2.5 layer forming fabrics can be woven in 8, 16 or 24 shaft patterns. The weave design offers a uniform distribution of fibers and provides outstanding drainage capacity as a result of high top surface open area. The large diameter of weft yarns and long crimp on machine side provides excellent wear resistance and runability. The 2.5 layer forming fabric has the features of excellent fiber support, sheet formation and high drainage.

Specifications:



Type

Warp

Weft

Warp Density

Weft Density

Air Permeability (m3/m2h)

2C50207

0.20

0.20/0.22  0.22

54.0-55.0

35.0-36.0

6200

2C56177

0.17

0.17/0.20  0.20

59.5-60.5

47.5-48.5

5200

2C57177

0.17

0.17/0.20  0.20

65.0-66.0

49.0-50.0

4600

2C56188

0.15

0.17/0.18  0.18

69.5-70.5

51.0-52.0

5100

2C56328

0.17

0.18/0.22  0.22

61.0-62.0

53.0-54.0

5700

2C60188

0.17

0.25/0.32  0.32

60.0-61.0

36.0-37.0

5500

2C5808

0.17

0.18/0.20  0.20

65.0-66.0

46.0-47.0

4800

2B56188

0.17

0.20/0.22  0.22

59.5-60.5

42.5-43.5

6400

2B56188

0.17

0.13,0.18/0.22,0.22

62.0-63.0

53.0-54.0

6800

2B4216

0.17

0.13,0.18/0.25,0.25

52.8-53.3

53.5-54.5

5200

2B64188

0.15

0.18/0.20  0.20

70.0-71.0

52.0-53.0

5100

2B53616

0.17

0.13,0.20/0.25,0.25

62.0-63.0

61.5-62.5

5800

2B563516

0.17

0.13,0.20/0.35,0.35

62.0-63.0

56.5-57.5

5700

2B6016

0.18

0.13,0.20/0.35,0.35

53.8-54.8

54.5-55.5

5300

2B4816

0.17

0.13,0.20/0.40,0.40

52.8-53.3

53.5-54.5

5200

2B5824

0.18

0.13,0.20/0.45,0.45

57.2-57.7

66.5-67.5

4500



FAQ

Q1. Can I have a sample order for product?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks.
Q3. Do you have any MOQ limit for product order?
A: Low MOQ, 30 square meters is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for product?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on packing of product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 2-5 years warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity for defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.




Product Image

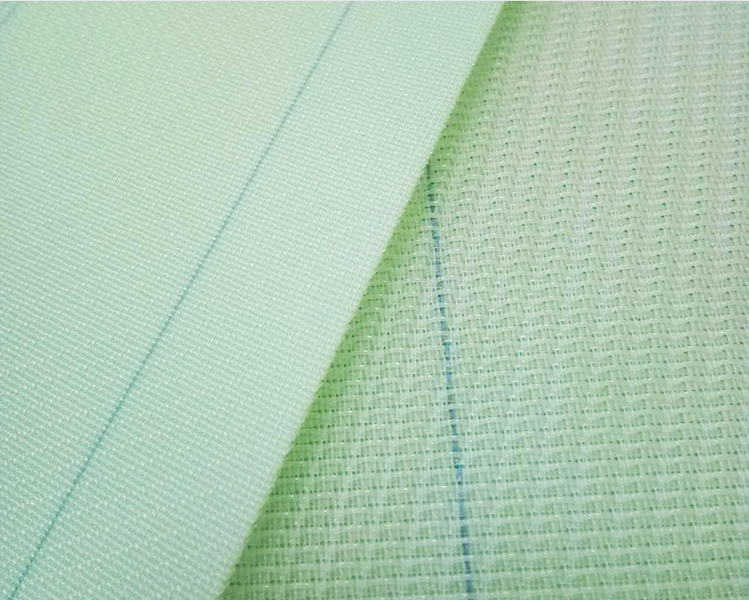

Double / 2.5 Layer Forming Fabrics Forming Wires 1
