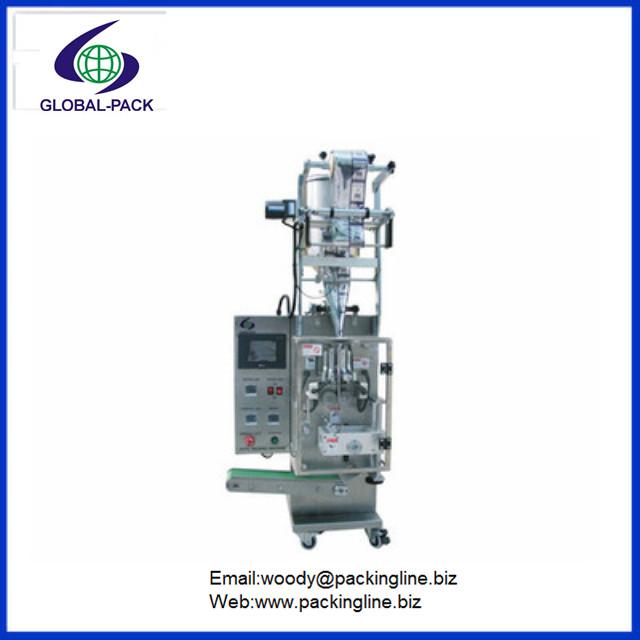

| Model: | GPM-100L |
|---|---|
| Brand: | Global-Pack |
| Origin: | Made In China |
| Category: | Industrial Supplies / Packaging Related Machine |
| Label: | vertical packing , vertical machine , granule machine |
| Price: |
¥3000
/ set
|
| Min. Order: | 1 set |
| Live Chat: | Last Online:07 Dec, 2018 |
Company Introduction
SHENZHEN GLOBAL PACK CO.,LTD. is a professional manufacturer and supplier engaged in various kinds of packing machines, such as labeling machine, filling machine, capping machine, vertical packing machine, vacuum packing machine,shrinking packing machine, etc. and some cheap but high quality packing material, such as packing film, aluminum sealing foil pads,vacuum packing bags,etc. These products are widely used in food, chemical, pharmaceutical, agricultural,cosmetic, hardware fields, etc. We also accept and provide customized service to every customer. We are desirable to work with the customers from all over the world!
Your satisfaction is our motivation！
Application
food,chemical,industrial,cosmetic liquid product packing.
Technical Parameters
|
Model No. |
Applicable Product |
Measuring Range (ml) |
Bag Length (mm) |
Bag Width (mm) |
Speed (Bag/min) |
Power |
Doser |
|
GPM-100G |
Granule |
A:1-10 B: 5-50 |
30-120 |
30-85 |
50-100 |
220V/1ph |
Volumetric cup |
|
GPM-100L |
Liquid |
3-50 |
30-120 |
30-85 |
30-60 |
220V/1ph |
Liquid pump |
|
GPM-100P |
Powder |
3-50 |
30-120 |
30-85 |
30-60 |
220V/1ph |
Screw auger |
|
GPM-100T |
Tablet |
3-50 |
30-120 |
30-85 |
10-60 |
220V/1ph |
Tablet round plate |
|
GPM-100V |
Screw, hardware parts |
3-50 |
30-120 |
30-85 |
10-60 |
220V/1ph |
Vibrating bowl |
Feature
1. The machine can automatically complete the products measuring, conveying and feeding, fillingand bag forming, date code printing, bag sealing and cutting.
2. Motor drivenfilm wheel pulling system.
3. High sensitive fiber optic photo sensor can automatically trace color mark accurately.
4. PLC control system combined with touch screen, can easily set can change the packingparameters. Daily production output and self-diagnostic machine error can beviewed directly from the screen.
5. PID temperature controller monitors heat sealing temperature within +/- 1ºC
6. Automatic edge position control assures consistent film alignment during production to produceuniform bag quality.
7. With CE Certificate.
