1080P USB Camera Module

Model:LCF-23TU1080
Brand:LCF
Origin:Made In China
Category:Security & Protection / Surveillance Equipment
Label:USB CAMERA , 1080P USB CAMERA , usb camera module
Price: -
Min. Order:5 pc
Inquire Now Add to Basket

Member Information

Detail

Lianchao Future Technology Co.,Ltd.

Biz MemberGuang Dong - China
Live Chat:
点击这里给我发消息Last Online:25 Aug, 2019

Product Description

Model No.:LCF-23TU1080



1

Part Number

LCF-23TU1080

2

Sensor

(1/2.7” )

3

Highest significant pixel

1920 (H) *1080 (V)

4

Sensitivity

3300mV/Lux-sec

5

Pixel Size

3µm x3µm

6

Image area

5856µmx3276µm

7

Output

MJPEG/YUV2(YUYV)/H.264

8

Lens

3.6mm 90 degree/2.8mm 120 degree

9

Distance

5M-10M

10

Central definition

1000LW/PH (Center)

11

 (s/n  RATION)

39dB

12

 (Dynamic Range)

69dB

13

Resolution and Frame

1920*1080 30f  1280*72060f    800*60060f  640*480120f  320*240120f

14

Shutter type

Electronic rolling shutter / Frame exposure

15

Interface type

USB2.0 High Speed

16

Automatic Exposure Control AEC

Supported

17

Automatic White Balance

Supported

18

Automatic Gain Control AGC

Supported

19

Lens Specification

Size:  1/2.7,  Relative Illumination (Sensor): 70%

IR CUT: 650±10nm

20

Power supply for IR LED Board

  2P-2.0mm

21

Power supply and Interface

USB BUS POWER  4P-2.0mm

22

Power

DC5V

23

Current

150mW VGA; 200mW QSXGA;

24

Storage temperature

-30°Cto 70°C

25

Working Temperature

0°Cto 60°C

26

USB Cable

1M(2M/3M/5M optional)

27

Operating humidity

15%-85%

28

System Support

Win XP/Vista/Win7/Win8 / Linux with UVCabove linux-2.6.26

MAC-OS X 10.4.8 or later/Android 4.0 or above with UVC


Payment Terms:T/T in advance,Paypal,Western Union
Lead Time:About 3 working days for samples

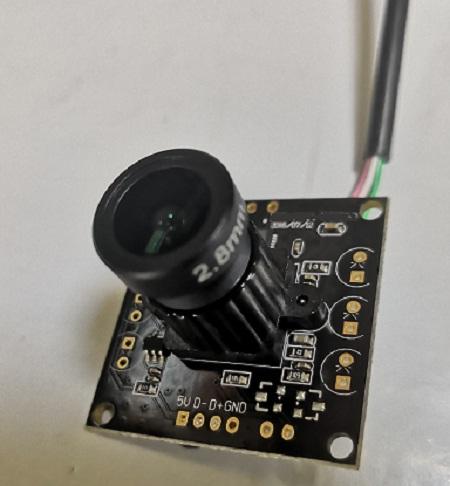

Product Image

1080P USB Camera Module 1
Img 1
1080P USB Camera Module 2
Img 2
