15 Pairs Hyac Self Supporting Telephone Cable 1
  • 15 Pairs Hyac Self Supporting Telephone Cable 1

15 Pairs Hyac Self Supporting Telephone Cable

Model:HYAC
Brand:SURELINK
Origin:Made In China
Category:Electronics & Electricity / Optical Fiber, Cable & Wire / Communication Cable
Label:Hyac , Telephone Cable , Jelly Filled
Price: US $1 / Meters
Min. Order:1000 Meters
Inquire Now Add to Basket

Member Information

Detail

Zhuhai Surelink Communication Cable Co., Ltd.

Biz MemberGuang Dong - China
Live Chat:
点击这里给我发消息Last Online:14 Oct, 2019

Product Description

Surelink 15pairs HYAC self supporting telephone cable







Product Specification



    Item Name     15 pairs HYAC self supporting telephone cable
    TYPE     Cat3, HYAC
    Conductor     BC 0.4/0.5/0.64/0.9mm
    Insulation Material     HDPE (GB/T13849.1-93 Standard)
    Twinning      Twisted pairs
    Pairs     15 Pairs
    Jelly Filled     Yes
    Shielding     Pet tape with Al Foil
    Jacket     Black PE
    Standard     IEC 708-1(1998),YD/T322-1996(P.R.C)
    Application     Telecom
    Operating temperature     -40 ° C - +75 ° C
    Working Life     More than 15 years



Material





Product Feature



1.Type: Aerial telephone cable HYAC

   Size: 10-2400pairs
Referred Standard: IEC, ASTM, BS
2. Structure: Annealed 99.99% copper conductor and HDPE(high density polyethylene) ,pet coated 0.25mm aluminum tape (PAP) longitudinally wrapped , PE sheathed.

3. Min. bending radius : Not less than 15 times of  the outer diameter when the outer diameter is not more than 40mm, not less than 20 times of the outer diameter when the outer diameter is larger than 40mm.

4. Usage:  Transmitting audio frequency signals ,  analog signals up to 150kHz or digital signals up to 2048kbit/s and in certain conditions , it can carry digital signals and which is higher than 2048kbit/s.

5. Support many lay-lengths: keeping good NEXT and FEXT and ensure anti electromagnetic disturb improvement.
6. Application mode: Aerial



Insulation resistance test



HDPE material, insulation resistance up to 20000MΩ





Related Package



1.1000meters,2000meters,3000meters or 4000meters

    Other lengths available according to client's request.
2.Inner packing: delivery with wooden-iron composite drums, strong enough suitable for handling.

   Long distance shipment and storage
3.Outer packing: wooden battens used to protect the drummed cable or a metal tape outside.
4.Other packing available according to client's request.

Related Hot Models





OEM / Related Production



    Product Type       Telephone cable or communication cable or telecom cable
   Conductor       BC 0.4/0.5/0.64/0.9mm
    Insulation       HDPE or foam PE
    Number of Twisted Pair

      2P/5P/10P/20P/25P/30P/50P/100P/150P/

      200P/300P/400P/600P/1200P/2400P

    Shielding       Pet Tape and Aluminum Foil
    Ripcord        Nylon
    Jacket       PE
    Operating temperature       -40 ° C - +75 ° C
    Working Life       20~25 years
    Applications       Aerial/Underground/Duct
      Long distance and local area network communication



Manufacturer Introduction



Zhuhai Surelink Communication Cable Co.,Ltd is one of the leading manufacturer in the cables and telecom accessories.  We have more than 20 years experience in this line.Our factory has over twenty production lines and 300 employees.



Our productions comply with ISO9001.Professional team,powerful factory and strict quality control give
best service to our clients and the quality guarantee in every order.



Our products have been widely installed in Telecom companies and many distributors around the world.
We export to more than 70 countries and our annual revenue is more than hundreds of million USD.



We have established a close relationship with many companies around the world and we sincerely look forward to woking with all clients from all over the world.



Company Show





Certificate





Workshop and Quality Test



Package and Delivery





Payment and Shipping



Payment

We usually use T/T

T/T deposit before production and balance when shipment.

Payment terms: Western Union, Escrow, Paypal, T/T ,L/C

Shipping

If the quantity of the order is not very big, we usually send by express delivery,such as TNT,DHL,UPS,FEDEX or EMS.

For big order,we will ship the goods by air or by sea.



Just Talk To Us!






Product Image

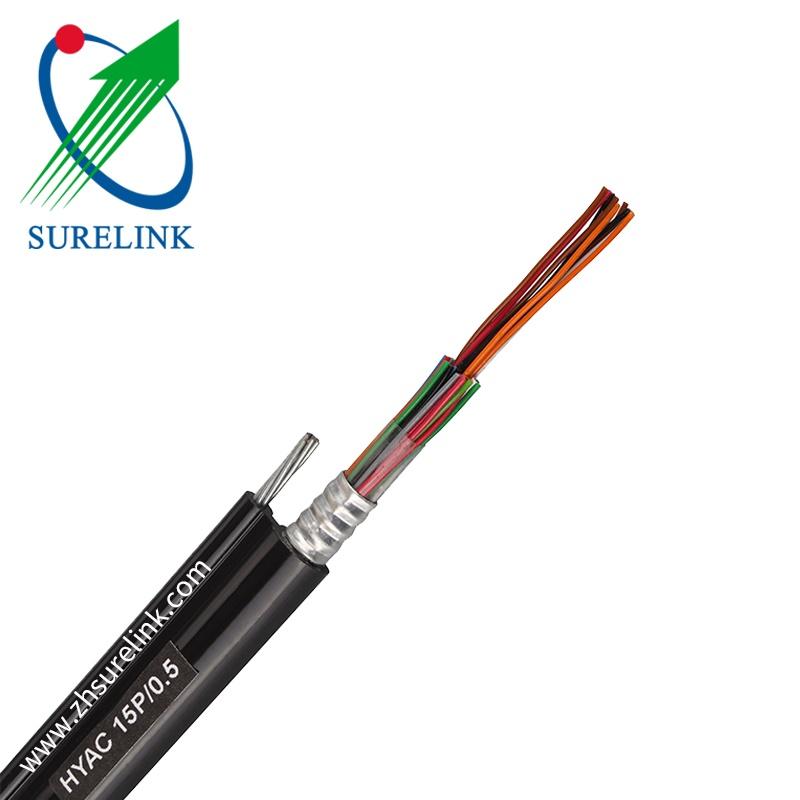

15 Pairs Hyac Self Supporting Telephone Cable 1
Img 1
