Outdoor Steel Tape Armoured Optical Fiber Cable GYTS GYTA

Model:GYTS
Brand:SURELINK
Origin:Made In China
Category:Electronics & Electricity / Optical Fiber, Cable & Wire / Optical Fiber
Label:GYTS , armored Fiber Cable , gyta
Price: US $0.3 / meter
Min. Order:5000 meter
Inquire Now Add to Basket

Member Information

Detail

Zhuhai Surelink Communication Cable Co., Ltd.

Biz MemberGuang Dong - China
Live Chat:
点击这里给我发消息Last Online:04 Aug, 2023

Product Description

Armoured 12 core fiber optic cable

Armoured 12 core fiber optic cable



Armoured 12 core fiber optic cable

Armoured 12 core fiber optic cable

Optical Characteristics:


Optical Characteristics:
Fiber Type G.652D G.655 50/125^m 62.5/125^m
Attenuation (+20X) @850nm     ≤3.0 dB/km ≤3.3 dB/km
@1300nm     ≤1.0 dB/km ≤1.0 dB/km
@1310nm ≤0.36 dB/km <0.40dB/km
@1550nm ≤0.22 dB/km <0.23dB/km
Bandwidth  @850nm     ≥500 MHz·km ≥200 MHz·km
@1300nm     ≥1000 MHz·km ≥500 MHz·km
Numerical Aperture     0.200±0.015NA 0.275±0.015NA
Cable Cut-off Wavelength cc ≤1260nm <1450 nm


Cable Specification:

 Item Name:Fiber optical cable GYTS

Total Fiber Count:2-288

Bend Radius(Static/Dynamic):20 x External Diameter of cable

Working Life:More than 25 years

Application:Backbones and Access,Installed in ducts,Underground conduits.

Structure:

GYTS fiber cable consists of :

1.Fiber

2.Steel wire strength member

3.Cable filler compound

4.Fillers

5.Steel Tape Armor

6.PE sheath

Standards and Certificate:

Fiber optical cable complies with Standard YD/T 769-2003,IEC60794-1

Certificate:CE ROHS ISO9001

Characteristics
· Good mechanical and temperature performance

· High strength loose tube that is hydrolysis resistant

· Special tube filling compound ensure a critical protection of fiber

· Crush resistance and flexibility



Related Package



Package Details:
Iron-wooden drum or fumugated wooden drum,normal wooden drum
Drum size can be designed,details will calculation for suitable for containers

Armoured 12 core fiber optic cable

Related Hot Models



Armoured 12 core fiber optic cable



Armoured 12 core fiber optic cable



Manufacturer Introduction



Zhuhai Surelink Communication Cable Co.,Ltd is one of the leading manufacturer in the cables and telecom accessories.  We have more than 20 years experience in this line.Our factory has over twenty production lines and 300 employees.



Our productions comply with ISO9001.Professional team,powerful factory and strict quality control give
best service to our clients and the quality guarantee in every order.



Our products have been widely installed in Telecom companies and many distributors around the world.
We export to more than 70 countries and our annual revenue is more than hundreds of million USD.



We have established a close relationship with many companies around the world and we sincerely look forward to woking with all clients from all over the world.

OEM and ODM order highly welcome !



Company Show

 Armoured 12 core fiber optic cable



Certificate



Armoured 12 core fiber optic cable



Workshop and Quality Test



Armoured 12 core fiber optic cable



Package and Delivery



Armoured 12 core fiber optic cable



Payment and Shipping



Payment

We usually use T/T

T/T deposit before production and balance when shipment.

Payment terms: Western Union, Escrow, Paypal, T/T ,L/C

Shipping

If the quantity of the order is not very big, we usually send by express delivery,such as TNT,DHL,UPS,FEDEX or EMS.

For big order,we will ship the goods by air or by sea.



Just Talk To Us!






Product Image

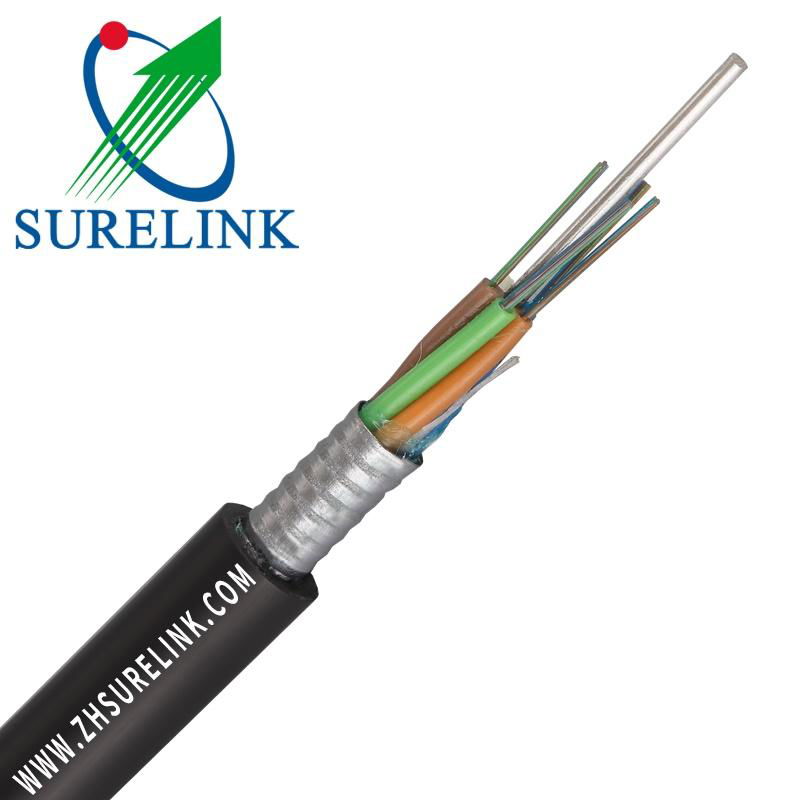

Outdoor Steel Tape Armoured Optical Fiber Cable GYTS GYTA 1
Img 1

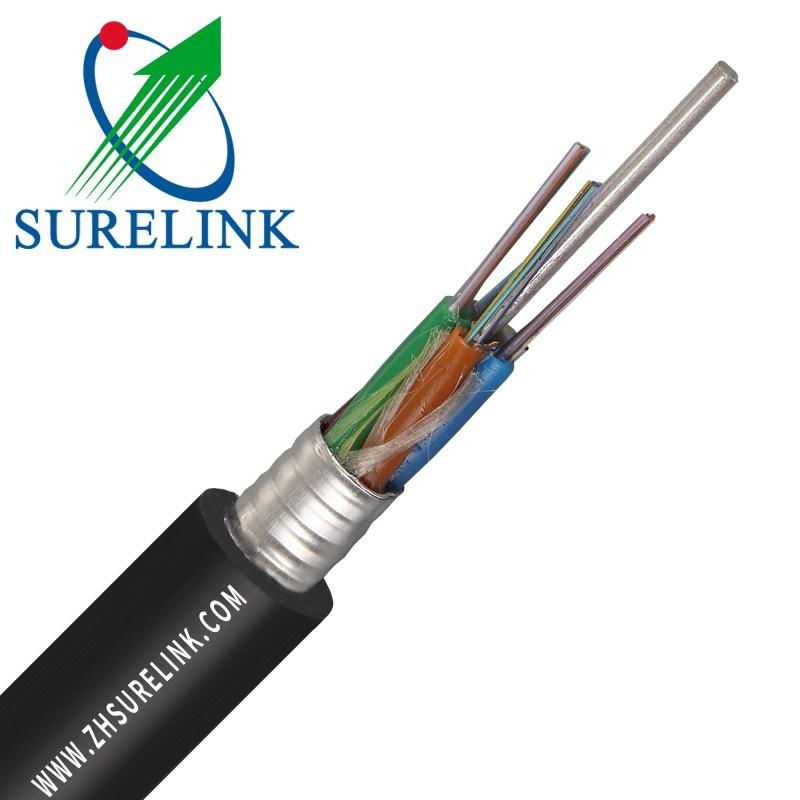

Outdoor Steel Tape Armoured Optical Fiber Cable GYTS GYTA 2
