Factory Price Low Loss LMR400 rg6 rg8 Coaxial Cable

Model:RG8
Brand:SURELINK
Origin:Made In China
Category:Electronics & Electricity / Optical Fiber, Cable & Wire / Communication Cable
Label:Rg8 Coaxial Cable , Coaxial Cables , Rg 8 cable
Price: US $0.08 / meter
Min. Order:20000 meter
Inquire Now Add to Basket

Member Information

Detail

Zhuhai Surelink Communication Cable Co., Ltd.

Biz MemberGuang Dong - China
Live Chat:
点击这里给我发消息Last Online:04 Aug, 2023

Product Description

RF Cable Low loss 50ohm 1.42MM Copper CCA LMR240 LMR300 LMR400 LMR500 LMR600 Coaxial cable RG8




Product Description



Description

Coaxial cable is an electrical cable consisting of a centre conductor wire, coated by PE or Foamed PE insulation, surrounded by cylindric conducting sheath, usually surrounded by a final insulating layer. It is used as a high-frequency transmission line to carry a high-frequency or broadband signal. As to lansan,mainly supplying the most common coaxial cable in use including RG8,RG58 of 50ohm impedance, RG6 ,RG11, RG59 of 75ohm impedance.

Application

50 ohm coaxes, used in radio transmission and computer networks, RG-8 being a rather large cable.

Specification:

Conductor

11AWG/10AWG, stranded bare copper center conductor;

Dielectric

gas expanded polythylene dielectric;Nominal Dia.:7.25mm(0.285in)

Inner shield

aluminum-polypropylene-aluminum laminated tape with overlap bonded to dielectric;

outer shield :,Tinned bare copper braid wire, 95%coverage;

jacket of black PVC (LSZH optional) Nominal outside diameter is 10.3 mm. (0.405 in).

Nominal Impendence: 50ohm.

Structural parameter





RG8

CONDUCTOR



MATERIAL

BC



Nom. Dia.

0.74mm*7

DIELECTRIC

MATERIAL

FPE



Nom. Dia.

7.25mm

SHIELD

MATERIAL

Al foil +0.14mm*144 TC braiding



COVERAGE

95%



JACKET

MATERIAL

PVC



Nom. Thick.

0.8mm



Nom. Dia.

10.24mm



Electrical performance of Dua Belden rg8

Nominal Impedance (Ω)

50

Nominal Velocity of Propagation (%)

66

Nominal Capacitance (pF/m)

100

Sparker Test (VAC)

3000

SRL (dB)

20











Attenuation

[@68°F(20°C)

Frequency(MHZ)

Maximum(Db/100ft)

Maximum(dB/100m)

10

0.55

1.80

20

0.85

2.80

50

1.34

4.40

100

2.07

6.80

200

2.96

9.70

400

4.61

15.10

500

4.94

16.20

600

/

/

800

6.56

21.50

1000

7.47

24.5

Applications:
1) CATV-community antenna television
2) CCTV-closed-circuit television
3) DBS-direct broadcasting satellite

Related Hot Models



 .jpg



Manufacturer Introduction



Zhuhai Surelink Communication Cable Co.,Ltd is one of the leading manufacturer in the cables and telecom accessories.  We have more than 20 years experience in this line.Our factory has over twenty production lines and 300 employees.



Our productions comply with ISO9001.Professional team,powerful factory and strict quality control give
best service to our clients and the quality guarantee in every order.



Our products have been widely installed in Telecom companies and many distributors around the world.
We export to more than 70 countries and our annual revenue is more than hundreds of million USD.



We have established a close relationship with many companies around the world and we sincerely look forward to woking with all clients from all over the world.



Main Cable Categories Provided by Us



1.Optical Fiber Cable and Patch Cord
2.Lan and Network Cable and Patch Cord
3.Alarm Cable and Speaker Cable
4.Drop Wire and Telephone Cable
5.Communication Cable
6.Coaxial Cable
7.Electrical Wire and Power Cable
8.Telecom Accessory.



Company Show




Certificate






Workshop and Quality Test




.png



Package and Delivery



SURELINK PACKAGE.jpg



Payment and Shipping



Payment

We usually use T/T

T/T deposit before production and balance when shipment.

Payment terms: Western Union, Escrow, Paypal, T/T ,L/C

Shipping

If the quantity of the order is not very big, we usually send by express delivery,such as TNT,DHL,UPS,FEDEX or EMS.

For big order,we will ship the goods by air or by sea.



Just Talk To Us!




Product Image

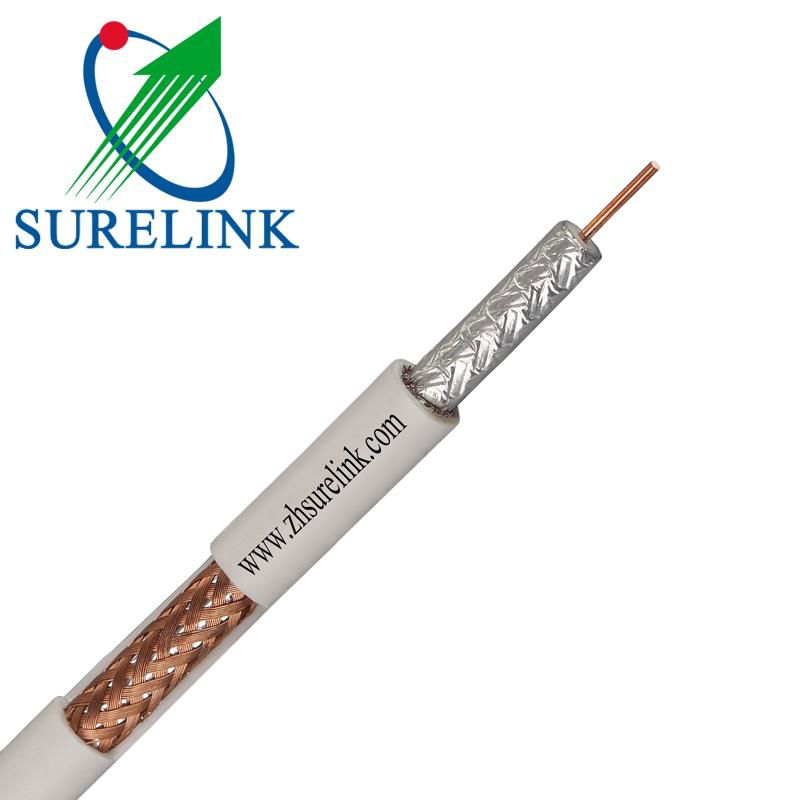

Factory Price Low Loss LMR400 rg6 rg8 Coaxial Cable 1
