| Model: | FTTX |
|---|---|
| Brand: | SURELINK |
| Origin: | Made In China |
| Category: | Electronics & Electricity / Optical Fiber, Cable & Wire / Optical Fiber |
| Label: | fibre optical cable , Flat FTTH Cable , flat drop cable |
| Price: |
US $10
/ KM
|
| Min. Order: | 3 KM |
| Live Chat: |  | Last Online:04 Aug, 2023 |

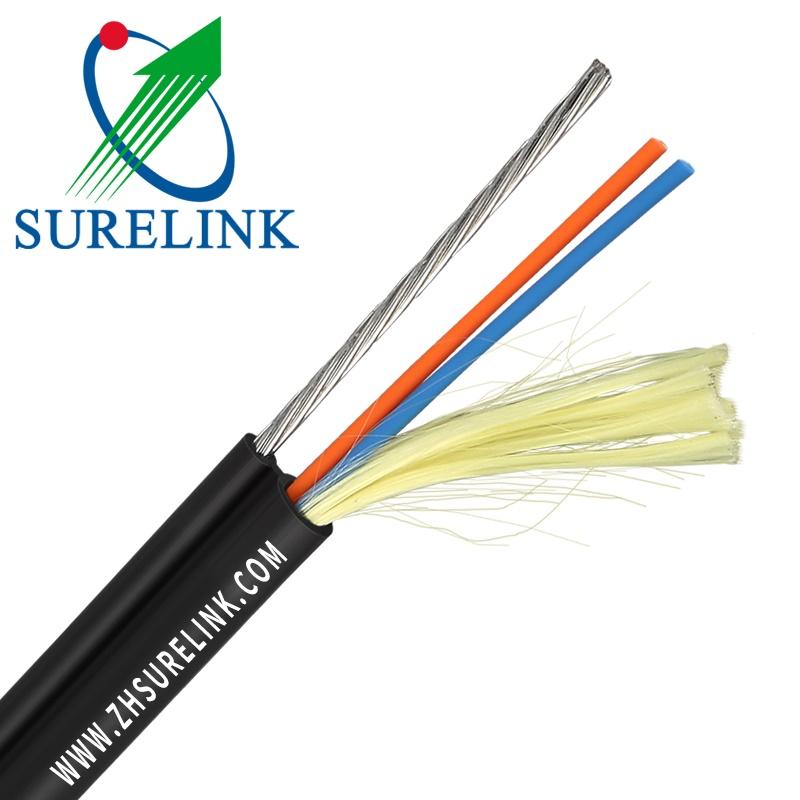

Surelink 2.0mm 24 Core PE Jacket FTTX Optical Fiber Cable
| Cable Structure |
| Technical Parameters |
| No. | Items | Unit | Specification | |
| G.652D | ||||
| 1 | Mode Field Diameter | 1310mm | μm | 9.2+-0.4 |
| 1550mm | μm | 10.4+-0.5 | ||
| 2 | Cladding Diameter | μm | 10.4+-0.5 | |
| 3 | Cladding Non-Circularity | % | <=10 | |
| 4 | Core-Cladding Concentricity Error | μm | <=0.6 | |
| 5 | Coating Diameter | μm | 245+-7 | |
| 6 | Coating Non-Circularity | % | <=6.0 | |
| 7 | Cladding-Coating Concentricity Error | μm | <=12.0 | |
| 8 | Cable Cutoff Wavelength | nm |
λcc≤1260 |
|
| 9 | Attenuation(max.) | 1310mm | dB/km | <=0.36 |
| 1550mm | dB/km | <=0.22 | ||
Cable Parameters
| Items | Specification | |
| Fiber Count | 24 | |
| Colored Coating Fiber | Dimension | 250+-15μm |
| Color | Blue,Orange Blue&Brown,Gray,White,Red,Black,Yellow Violet,Pink,Aqua. | |
| Loose Tube | Dimension | 2.7+-0.1mm |
| Material | PBT | |
| Color | Natural | |
| Strength Member | Dimension | 2.0mm |
| Material | FRP | |
| Color | Natural | |
| Outer Jacket | Dimension | (8.5+-0.3)mmx(4.5+-0.2)mm |
| Material | PE | |
| Color | Black | |
Mechanical and environmental Characteristics
| Items | Unite | Specification |
| Tension(Long Term) | N | 600 |
| Tension(Short Term) | N | 1500 |
| Crush(Long Term) | N/10cm | 1000 |
| Crush(Short Term) | N/10cm | 2000 |
| Installation Temperature | ℃ | -20~+60 |
| Operating Temperature | ℃ | -40~+70 |
| Storage Temperature | ℃ | -40~+70 |
| Related Package |
Package Details:
Iron-wooden drum or fumugated wooden drum,normal wooden drum
Drum size can be designed,details will calculation for suitable for containers
