| Model: | MO-1 |
|---|---|
| Brand: | XZY |
| Origin: | Made In China |
| Category: | Metallurgy , Mining & Energy / Metallurgy & Mining / Metal Mineral |
| Label: | Molybdenum Sheet , Molybdenum Plate , Molybdenum Foil |
| Price: |
US $40
/ KG
|
| Min. Order: | 10 KG |
| Live Chat: | Last Online:27 Jun, 2023 |

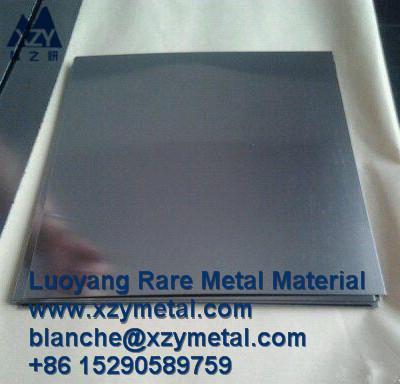

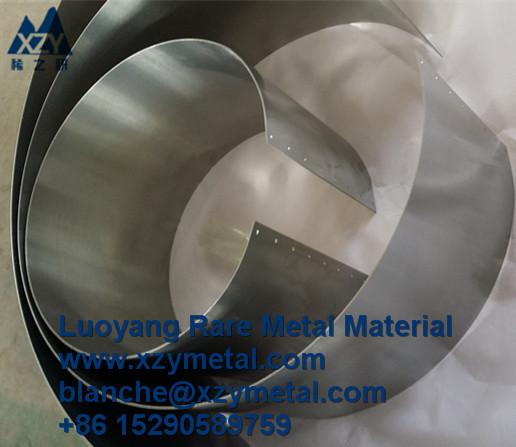

1. Molybdenum Sheet Introduction
Application:
1.Molybdenum sheets are used for producing molybdenum electrodes, heating elements, heat shields, sintering trays, sintering boats, stacking sheets, base plates, sputtering targets, crucibles in electronic and vacuum applications;
2.Widely used for producing reflecting screen and cover inside sapphire crystal growth furnace, as well as reflecting screen, heating tape and connection inside vacuum furnace;
3.Molybdenum sheets are also applied in sputtering target of materials plasma coating, high temperature resistant boat, etc.
Features:
1.The purity of molybdenum sheet is over 99.95%. The high-temperature rare-earth element added molybdenum sheet is also with high purity above 99%;
2.The density of molybdenum sheet is more than or equals to 10.1g/cm3;
3.The flatness is no more than 3%;
4.It has good performances of high strength, uniform internal organization and good resistance to high temperature creep;
5.The surface of molybdenum sheet may present silver gray metallic luster after chemical cleaning.
6. Tungsten foil is under vacuum annealing and leveling before delivery.
7. Our molybdenum sheet is approved by ASTM B 386-2003 and GB 3876-2007 and GB 3877-2006.
Parameters of Molybdenum Sheet:
|
Thickness (mm) |
Width (mm) |
Length (mm) |
|
< 0.10 |
150 |
L |
|
0.10-0.15 |
300 |
1000 |
|
0.15-0.20 |
400 |
1000 |
|
0.20-0.30 |
650 |
2540 |
|
0.50-1.0 |
650 |
2540 |
|
1.0 -2.0 |
600 |
2000 |
|
2.0 -3.0 |
600 |
2000 |
|
> 3.0 |
600 |
L |
Our company also can provide molybdenum sheets according to customers' requirements.
2. Chemical Component
|
Fe |
Ni |
C |
Al |
O |
N |
|
0.004 |
0.002 |
0.0028 |
0.0005 |
0.005 |
0.002 |
|
Si |
Ca |
Mg |
Cd |
Sb |
Sn |
|
0.0013 |
< 0.001 |
< 0.0005 |
< 0.001 |
< 0.0005 |
< 0.0005 |
|
P |
Cu |
Pb |
Bi |
Mo |
|
|
< 0.001 |
< 0.0005 |
< 0.0005 |
< 0.0005 |
>99.95% |
|
3. Packaging & Delivery
Packaging Details
1) Standard wooden cases with plastic bags inside.
2) Three-ply or plywood,fumigation-free.
3) As the clients requirement.
Delivery Detail
10~15 days working days.
4. Shipping
DHL, FEDEX, UPS, TNT, EMS ect.
