| Model: | CW-5200 |
|---|---|
| Brand: | Baodian |
| Origin: | Made In China |
| Category: | Industrial Supplies / Machinery / Refrigeration & Freezers |
| Label: | laser water chiller , small water chiller , water chiller |
| Price: |
US $290
/ pc
|
| Min. Order: | 1 pc |
| Live Chat: |  | Last Online:28 Dec, 2018 |
Product Details

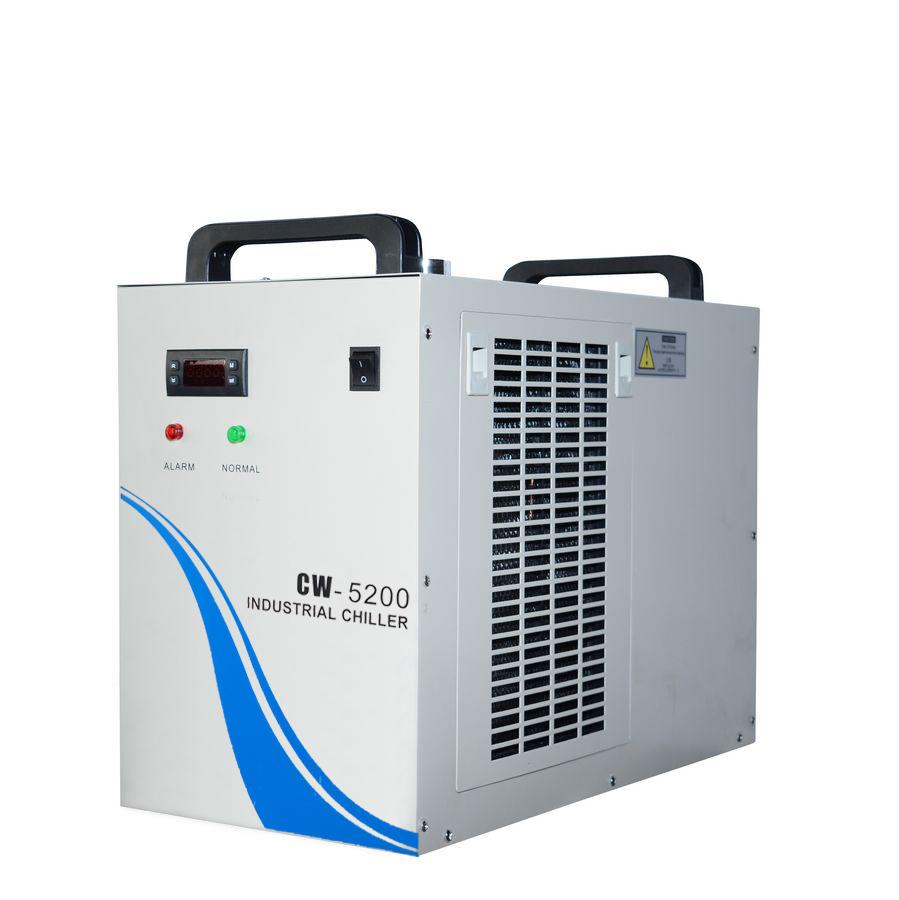

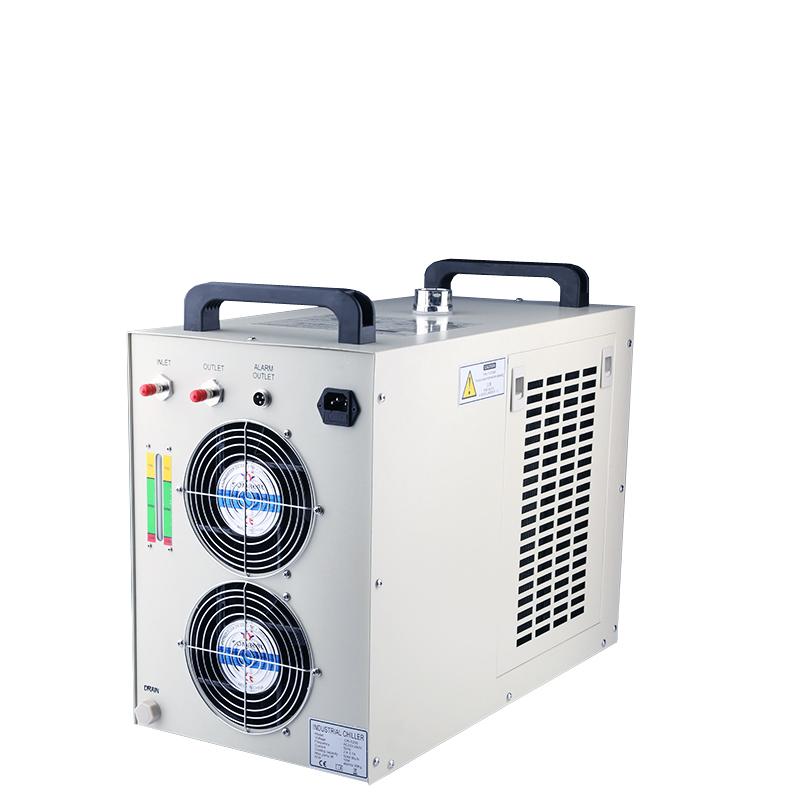

CW5200 Water Chiller For 100w Fiber Laser Machine Features:
1. 1400W cooling capacity; optional environmental refrigerant;
2. Small size, long working life and simple operation;
3. ±0.3℃ precisely temperature control,
4. The intelligent temperature controller has 2 control modes, applicable to different applied occasions；
5. Optional heater and water filter.
CW5200 Water Chiller For 100w Fiber Laser Machine Application:
CW-5200AG: For a single 150W CO2 laser tube or dual 100W CO2 laser tubes;
CW-5200AH: For a single 8KW CNC spindle or welding equipment;
CW-5200AI: applied to a cool single 50W-75W laser diode, a single 30W solid-state laser or a single 50W RF laser tube;
Optional: CW-5200 dual water inlet and outlet series; heat booster; water filter.
CW5200 Water Chiller For 100w Fiber Laser Machine Specifications:
| Model | CW-5200AG | CW-5200BG | CW-5200DG | CW-5200AI | CW-5200BI | CW-5200DI |
| Voltage | 220V | 220V | 110V | 220V | 220V | 110V |
| Frequency | 50Hz | 60Hz | 60Hz | 50Hz | 60Hz | 60Hz |
| Current | 2.4~3.1A | 2.6~3.3A | 4.5~6.5A | 2.4~3.1A | 2.6~3.3A | 4.5~6.5A |
| Compressor power | 0.52KW | 0.5KW | 0.68KW | 0.52KW | 0.5KW | 0.68KW |
| Refrigeration capacity | 1.49KW | 1.46KW | 1.56KW | 1.49KW | 1.46KW | 1.56KW |
| Refrigerant | R-22 / R-134a / R-410a | |||||
| Refrigerant charge | 360g | 380g | 350g | 360g | 380g | 350g |
| Precision | ±0.3℃ | |||||
| Reducer | Capillary | |||||
| Protection | Over current protection for compressor, flow alarm, over temperature alarm | |||||
| Pump power | 43.2W | |||||
| Tank capacity | 9L | |||||
| Inlet and outlet | External Φ10mm brass connector | Φ10mm speedy connector | ||||
| Max. lift | 10 M | 25M | ||||
| Max. flow | 16 L/min | 16 L/min | ||||
| N.W | 29Kgs | |||||
| G.W | 31Kgs | |||||
| Dimension | 56 X 28 X 47 cm (L X W X H) | |||||
| Package dimension | 72 X 44 X 57 cm (L X W X H) | |||||
| Price Terms: | EXW/FOB |
|---|---|
| Payment Terms: | TT |
| Packing: | Carton/Plywood case |
| Lead Time: | within 7 working days |
