| Model: | CYA-1 |
|---|---|
| Brand: | ASSEN |
| Origin: | Made In China |
| Category: | Industrial Supplies / Machinery / Filters |
| Label: | oil centrifugal , oil centrifuge , centrifugal purifier |
| Price: |
US $11500
/ pc
|
| Min. Order: | 1 pc |
| Live Chat: | Last Online:26 Sep, 2022 |

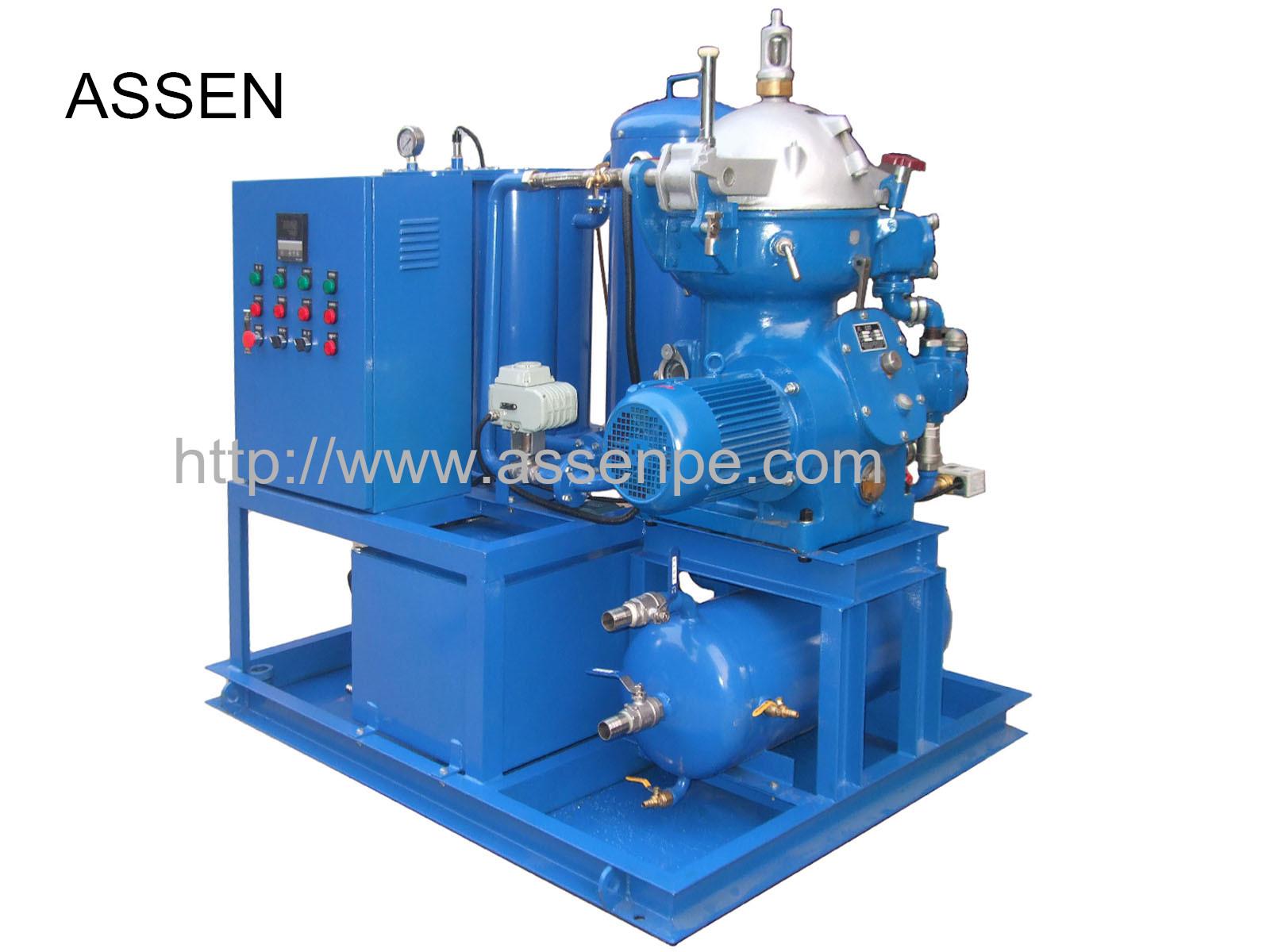

transformer oil purifier
|
Application:
Series CYA oil centrifugal oil purifier machine is mainly used to remove water and mechanical impurities from fuel oil, lubricating oil and other mineral oil in marine diesel engine unit and land-used diesel generator unit of power station so as to reduce wear of the diesel engine and other machine, and prolong engine life. The model is also used to separate two unsolvable liquids with different specific gravity or remove small amount of solid particle from liquid.
Features:
1. High speed centrifugation to remove oil grease and sludge impurities
2. strongy emulsification ability
3. The machine adopts automatic control, it has the advantages of high efficiency, low oil consumption, convenient operation and economic maintenance cost.
4. The clear oil and dirty water are pumped out by centripetal pump, the sludge is discharged automatically and fully.
5. The machine is one kind of rotary machine with high speed, After accurate dynamic balancing, it can run for long time with low vibration, safety and security.
Technical Parameters:
|
Model |
Capacity
|
Drum Diameter(mm) |
Rotation Speed(r/min) |
Motor(Kw) |
Discharge mode |
Separator
|
Weight(kg) |
Size
|
|
CYA-1 |
1000 |
230 |
6930 |
2.2 |
Manual |
6170 |
245 |
850x625x985 |
|
CYA-2 |
2000 |
270 |
7200 |
4 |
Automatic |
6950 |
550 |
865x645x1100 |
|
CYA-3 |
3000 |
315 |
6500 |
5.5 |
Automatic |
7000 |
650 |
900x600x1150 |
|
CYA-4 |
4000 |
385 |
6500 |
7.5 |
Automatic |
7500 |
750 |
1100x1050x1250 |
|
CYA-5 |
5000 |
430 |
6000 |
11 |
Automatic |
8050 |
900 |
1200x950x1400 |
|
CYA-6 |
10000 |
500 |
5500 |
18.5 |
Automatic |
8000 |
1200 |
1250x1000x1550 |
Pls contact:ASSEN
Email:assenoilpurifier@gmail.com or sales@assenpe.com
Sales line:+86-23-88703683
Whatsapp:+86-15223801122
http://www.assenpe.com
| Payment Terms: | TT LC |
|---|---|
