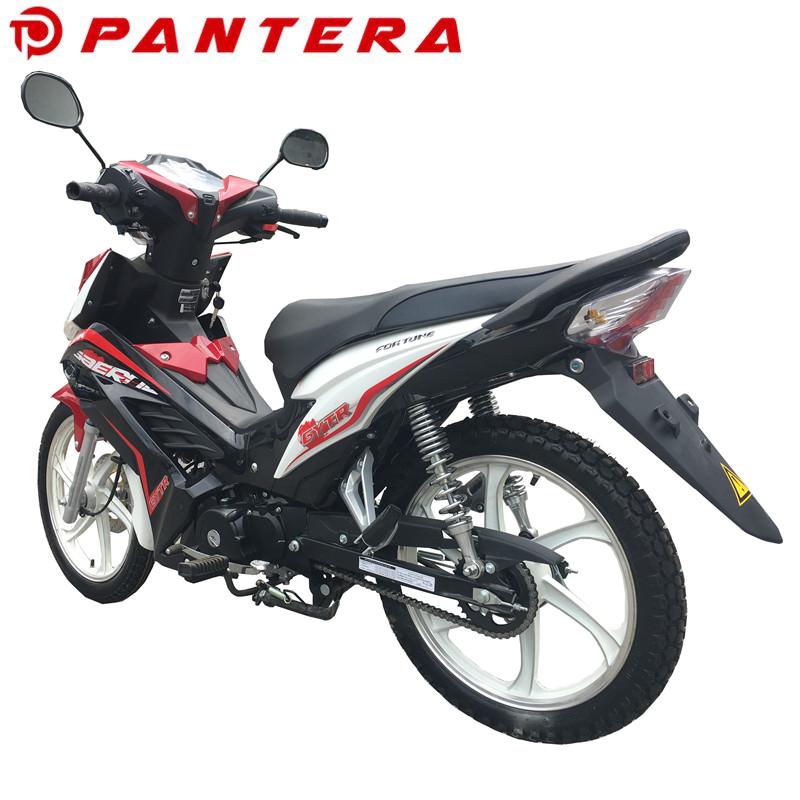

| Model: | PT110-DBY |
|---|---|
| Brand: | PANTERA |
| Origin: | Made In China |
| Category: | Transportation / Vehicles / Motorcycle |
| Label: | Cub Motocicleta , 110cc Motocicleta , 110cc Cub |
| Price: |
-
|
| Min. Order: | 105 pc |
| Live Chat: |  | Last Online:07 Mar, 2022 |
| ENGINE | |
| Engine Type: | Single cylinder,wind-cooled, four stroke |
| Displacement(ml): | 106.7 |
| Bore X Stroke(mm): | 52.4x49.5 |
| Compression Ratio: | 9.3:1 |
| Max. Power(kw/r/min): | 5.3/[8000±500] |
| Max. Torque(N.m/r/min): | 7.2/[6000±500] |
| Max. Speed(Km/h): | 70 |
| Clutch Type: | Auto centrifugal |
| Ignition: | CDI |
| Starting System: | Kick/Electric |
| Transmission System: | Chain drive |
| CHASSIS | |
| Front Brake: | Disc/Drum brake |
| Rear Brake: | Drum brake |
| Front Tire: | 2.50-17 |
| Rear Tire: | 2.75-17 |
| Wheel Type: | Alloy or Spoke |
| DIMENSIONS | |
| L * W * H (mm): | 1910*675*1010 |
| Wheelbase(mm): | 1240 |
| Max. Permissionable Weight(kg): | 150 |
| Dry. Weigth(kg): | 91 |
