125khz mini rfid reader DW-Z3L
Frequency ：125Khz
Card reading type：EM Marine and prox II cards
Reading range：2-6cm
Output interface：Wiegand 26
Input Voltage：6-18V
Current：35mA
Indicator：Red Green color led
Material： Polyamide
Size（mm):78*26*10MM
Converter is designed to operate in the absence of:
Atmospheric fallouts, sunshine and humidity condensation.
Operating conditions
Temperature from -30 ° C to +40 ° C;
Relative humidity less than 98% (at 25 ° C).
When there are changes in maintenance conditions, the specification of product may differ
from the nominal values.

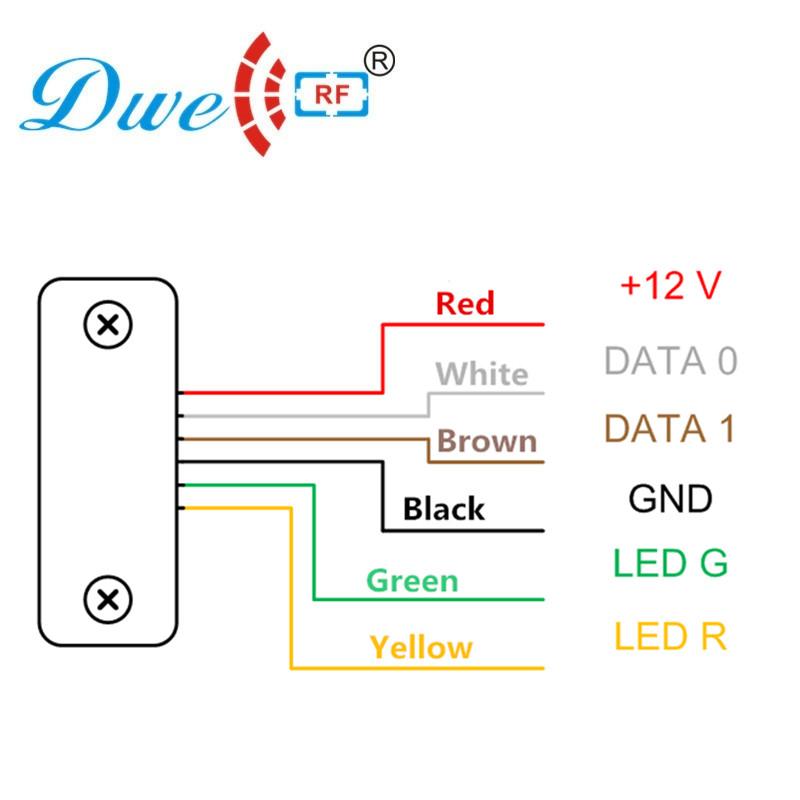

Wire diagram
Red: +12VDC
Black :GND
Brown: data 1
White : data 0
Green : green led control ( Connect Green cable to GND, green color LED always on )
Yellow: red led control (Connect Yellow cable to GND ,red color LED always on )
