IR Hot Drying Tunnel with cooling zone add robot hand automatic unloading system

Model:SD6000R
Brand:LC
Origin:Made In China
Category:Industrial Supplies / Plate Making & Printing Machine
Label:automatic unloading , IR dryer oven , drying tunnel
Price: US $15870 / SET
Min. Order:1 SET
Inquire Now Add to Basket

Member Information

Detail

Luen Cheong Printing Equipment Ltd

Biz MemberGuang Dong - China
Live Chat:
Last Online:29 Sep, 2022

Product Description

Description:

This machine with 2 heating zone 2M*2, one 2M cooling zone and robot hand automatic unloading system

IR Drying tunnel  for variety of screen printing, pad printing and spraying thermosetting ink processing such as heat press, electric products, ( silicon, electric membrane film key press, window glass. )

This conveyor dryer is widely used in the drying of screen printing industry,is especially suitable for solidifying heat-set and special type of printing ink.This  tunnel dryerenables the production of printed products with good colorfastness, high flexibility and high gloss.

 robot hand automatic unloading system can be for 0.1mm paper too.

 Features:

1. Intelligent temperature control system,easy operation,can control of temperature deviation effective.

2.  adopt hot circulating system,save energy effectivly.

3. Teflon screen belt , customers' designs are welcome

4.Far infrared heating pipe is especially suitable for solidifying heat-set and special type of printing ink.

5.Adjustable belt speed and tunnel temperature controls.

 Parameters:

1.

Conveyor length :9000mm

2

Conveyor width:600mm

3

machine size: (L)8100x(W)1050x(H)1260mm  Hight of the entrance :120mm

4

working power: AC 380V 50HZ

5

Temperature adjustment: 0-200 Centigrade

6

constant temperature will be 2º C more or less

7

temperature resolution: 1º C

8

Belt speed adustment: 0-10M/MIN

9

 Gross weight: 1170 KG

Warranty

For all our machines, we provide one-year warranty.
Life-long on-line technical support and provide free parts when problems occur within one year not including shipping cost.
Any warranty shipping cost to us is responsible by buyer.
Any shipping cost to buyer is responsible by us.




Product Image

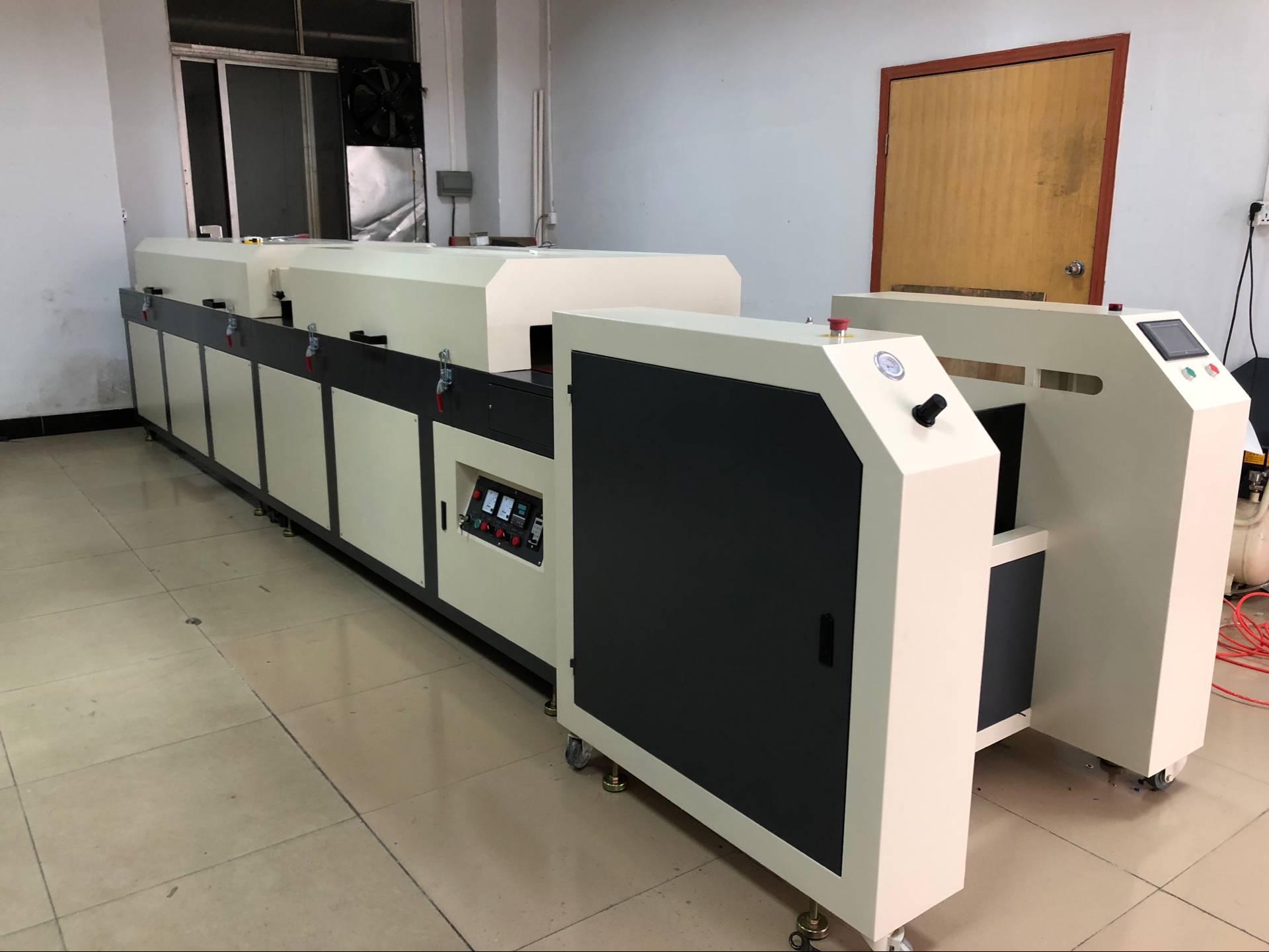

IR Hot Drying Tunnel with cooling zone add robot hand automatic unloading system 1
Img 1

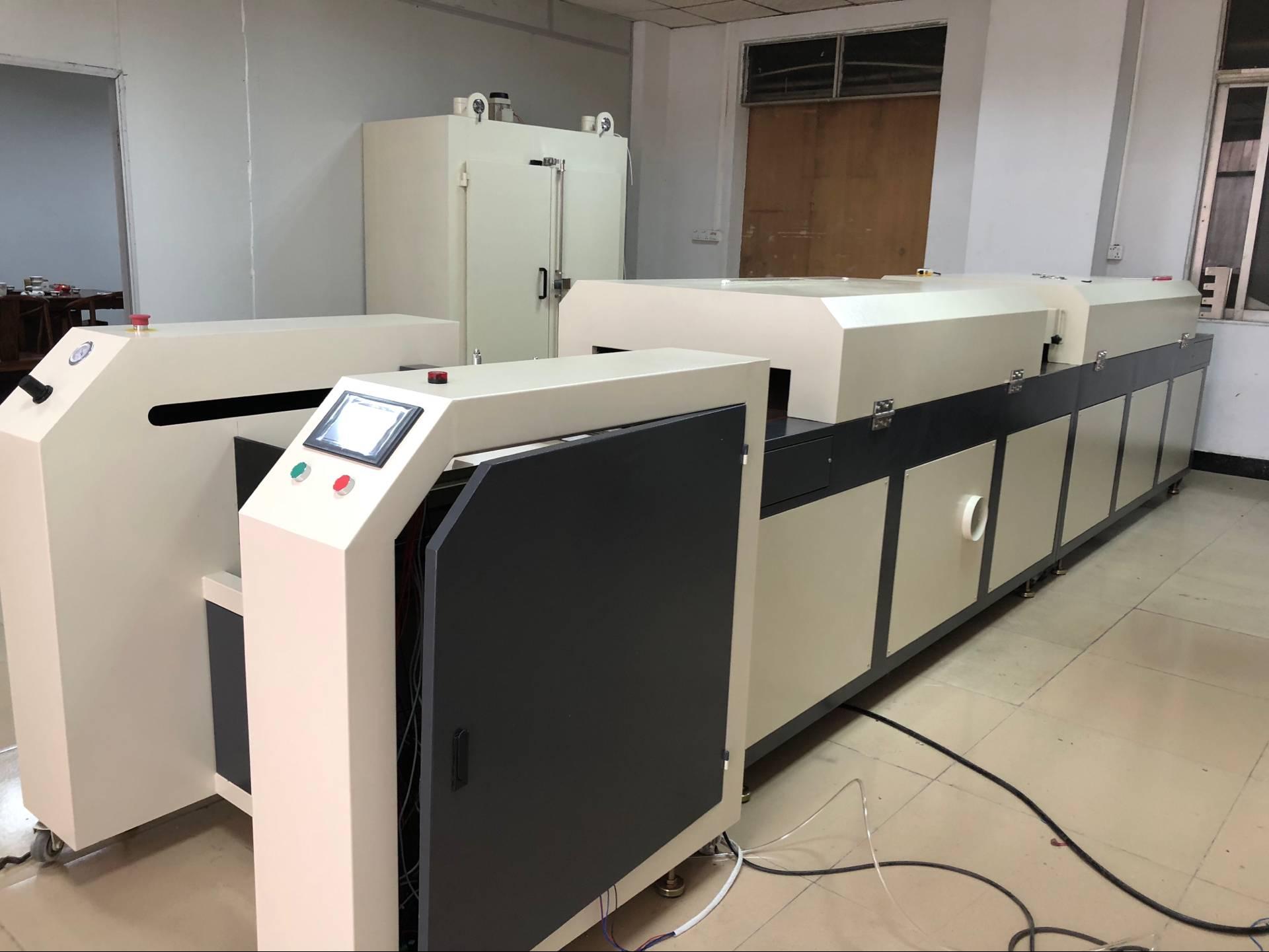

IR Hot Drying Tunnel with cooling zone add robot hand automatic unloading system 2
