| Model: | GJ5038 |
|---|---|
| Brand: | Gateway |
| Origin: | Made In China |
| Category: | Industrial Supplies / Plate Making & Printing Machine |
| Label: | phone case uv printe , led uv printer , automatic uv printer |
| Price: |
¥95000
/ set
|
| Min. Order: | 1 set |
| Live Chat: | Last Online:31 Oct, 2018 |
1. Printer body frame consist of many pieces of cast aluminum, which ensure the printer structure is firm and accurate assembly.

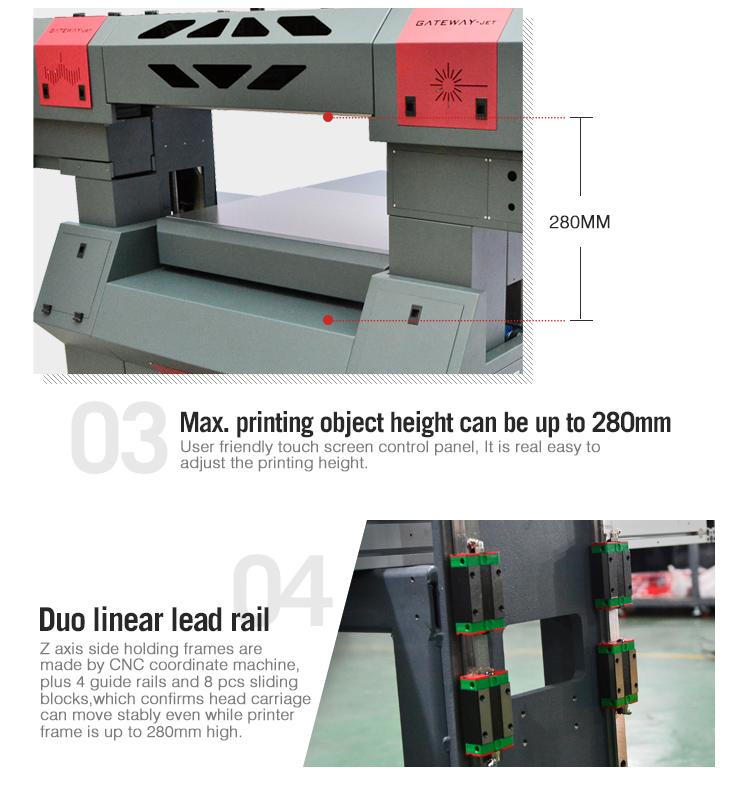

2.Z-axis holding frames are made by CNC coordinate machine, plus 4 guide rails and 8 pcs sliding blocks, which confirms head carriage can move stably even while printer frame is up to 28cm high.
3. The maximum printing height can be up to 28cm.
Print size 900mm*600mm
Print head 6 pieces RICOH GH2220
Print speed 6㎡/H 720*1200dpi
Print color C/M/Y/K+WW
Print resolution 720*1200dpi
Control Software Colorgate RIP Software
Max print weigh 25 kg
Max print height 280mm
LED lamp lift span 8000-10000Hr
Lamp power 300W
Power Supply 110-220V/50-60HZ
UV Cooling System Water Cooling System
Operating System Win XP/win 7
Ink And Ink System UV ink and CISS,150ml/bottle
Ink Usage Without white underbase: 15ml/SQM With white underbase: 30ml/SQM
Working temperature 10-35℃
Working humidity 20-75RH
Operation system Win XP/win 7 or higher
Height Adjustment Manual/ Infrared
Net weight 450kg
Equipment size 2000*1200*1300mm
Warranty One year
Shipping size 2100*1300*1470mm
If you’re interested in our products, please feel free to contact us.
| Payment Terms: | T/T |
|---|---|
