| Model: | uv82 |
|---|---|
| Brand: | baofeng |
| Origin: | Made In China |
| Category: | Electronics & Electricity / Telecommunication & Broadcasting / Wireless Equipment |
| Label: | 2 way radio , radio dual band , radio uhf vhf |
| Price: |
US $23
/ pc
|
| Min. Order: | 2 pc |
| Live Chat: | Last Online:26 Oct, 2018 |
Product Description

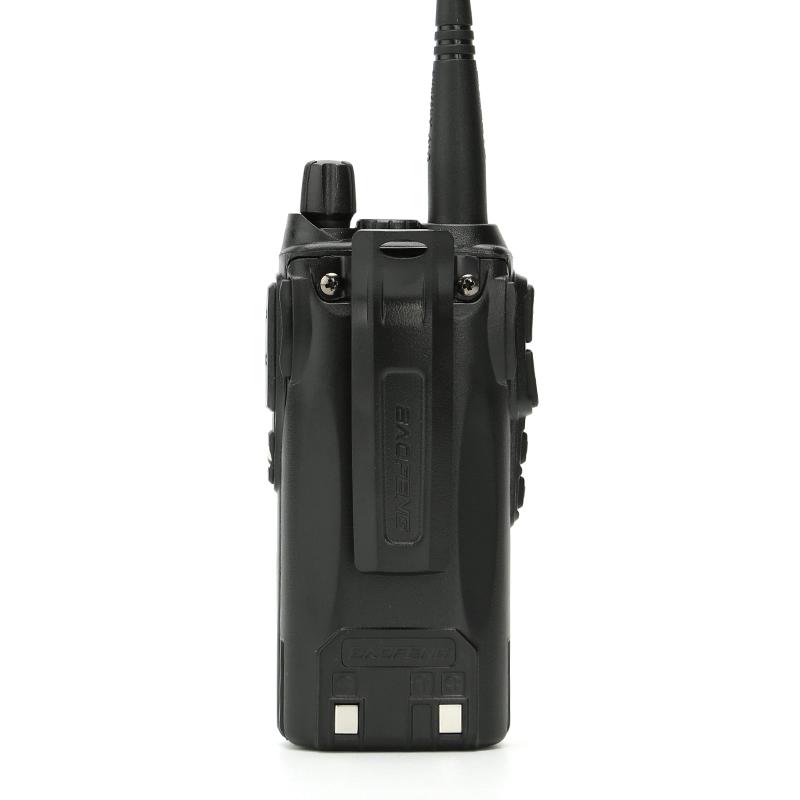

2 way radio 5w baofeng uhf vhf dual band
| General | |
| Frequency Range | VHF136-174MHz |
| UHF400-480MHz | |
| Channel Capacity | 128 |
| Operating Voltage | 7.4V DC ±15% |
| Antenna Impedance | 50Ω |
| Channel Spacing | 2.5/6.25/10/12.5/20/25kHz |
| Working Temperature | -20 °C - +60 °C |
| Frequency Stability | ±2.5 ppm |
| Size (Without Antenna) | 110(W)mmx60(L)mmx36mm(D) |
| Weight(With Battery) | about 250g |
| Battery Capacity | 1800 mAh(Li-ion) |
| Battery Life(5-5-90 duty cycle) | About 12 hours |
| Transmitter | |
| RF Power Output | 4W/1W |
| Modulation Type | F3E |
| Audio Distortion | ≤ 5% |
| Transmitting Current | < 1.3A |
| FM Noise | 45dB(W)/42dB(N) |
| Spurious Emission | 65dB |
| Receiver | |
| Sensitivity(12Db SINAD) | ≤0.20μV |
| Selectivity | 60dB/55dB |
| intermodulation | ≥65dB |
| Adjacent Channel Selectivity | ≥65dB |
| Spurious Response | ≥60dB |
| FM Noise | 30dB/40dB |
| Audio Power Output | 1000mW |
| Audio Distortion | ≤5% |
Packaging & Shipping
Our Services
FAQ
1. Q: What's the MOQ?
A: It is 2 pcs only.
2. Q: Can you offer free sample to test?
A: In General, for new customer you pay the sample fee first, but wehn your order reach required amount we refund the sample cost to you.
3. Q: Do you accept customized?
A: Yes, wo did produce customer requirment, OEM & ODM are welcomed.
4. Q: When can you ship the item?
A: 1-3 days for sample order, 3-5days for bulk order.
5. Q: When can i find tracking in Internet?
A: Usually, we will give you the tracking number and you can find the information on Internet in 2days.
