Scope of Application

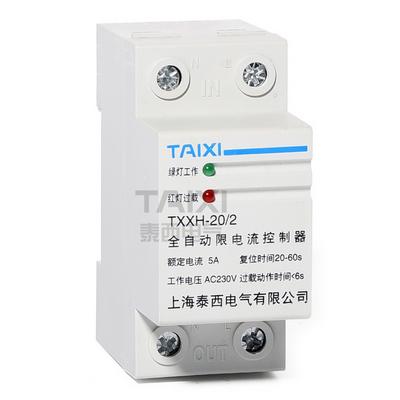

TXXH Current Limiter is applicable to AC 50Hz, operating voltage 220V, current 0.5-20A, power 110W-4.4kW. The current limiting device can be used for hotels, student dormitories, factory dormitories and civil housing in construction site and the automatic control of electricity in the places with the provisions of power, (such as electric stove, heat fast), etc. The current limiting device have no effect on computers, electric fans, general equipment, television sets, incandescent lamps, electronic fluorescent lamps and other (total power not exceeding nominal power). The main purpose of current limiter circuit breaker is to limit waste of electricity, in particular, limit the line over-current heating caused by fire.

Main technical parameters

Operating Voltage: AC 220V

Operating current: 0.5A, 1A, 2A, 3A, 5A, 6A, 10A, 15A, 20A

Working frequency: 50Hz

Rated current / power: 0.5A/110W, 1A/220W, 2A/440W, 3A/660W, 5A/1100W, 6A/1320W, 10A/2200W, 15A/3300W, 20A/4400W

Automatic reset time: 30s±5s

Protection action current error: ±10%

Own power consumption: ≤1W

Dimensions (L × W × H): 85.5×36×66mm

Installation: 35mm Rail installation
