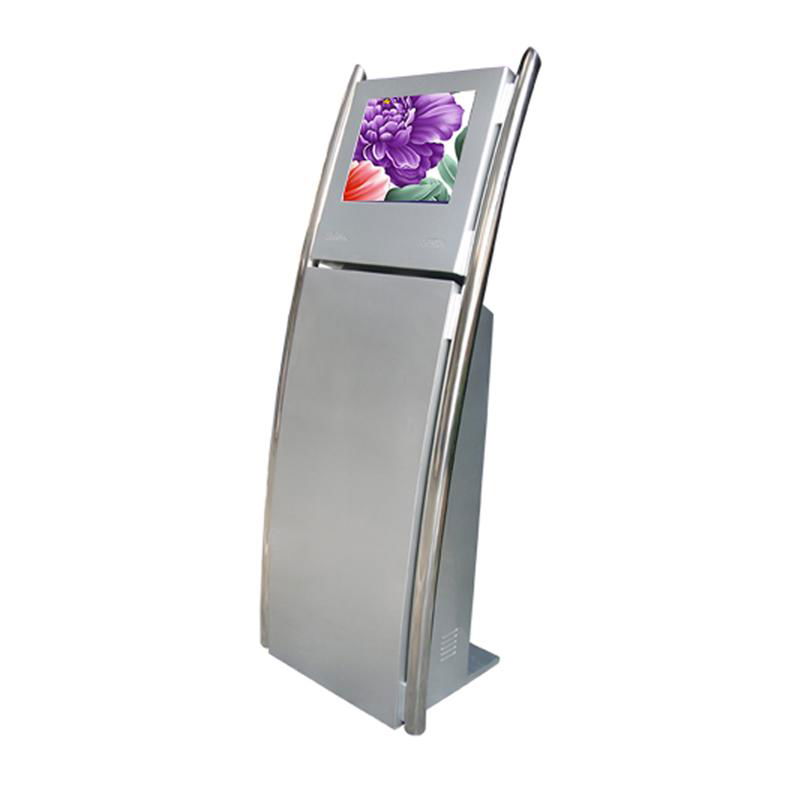

Touch screen LCD digital signage media Player

Overview:

1. 19''durable steel LCD digital signgae media player cabinet

2. Powerful Embedded computer

3. 19'' touch panel, usually with Infrared touch panel

5. 19'' Grade A+ TFT LCD monitor plus touch screen

6. Operating System, internet access

Notes:

the above components could be order seperately, you are welcome to order monitor only, or cabinet only. More information, please feel free to

contact me.

Configuration:

1) Touch screen

a. Infrared Touch screen

b. Resolution: 4096*4096

c. Deviation of Error:±<1.0%

d. Surface Hardness: Mohs' hardness rating of 7

e. Hitting Life Expectancy: 50,000,000 cycle times

f. Operating Force: Touch force less than 100g(adjust allowed)

 Resistive touch panel, SAWtouch panel available.

g. Transmittance: 92%~95%

2) 19″Grade A+ TFT LCD monitor

a. Resolution: 1280x1024

b. Brightness: 300cd/m2

c. Contrast ration: 1000:1

d. Contact Bounce: 5ms

e. lifelong: more than 50 000hours

3) Powerful Embedded Computer

a. CPU: Intel J1900CPU or Industrial mother board

b. Hard disk: Seagate 500GB, SSD available.

d. RAM: DDR 4GB

f. Ports: USB ports, RS-232 ports, ports for mouse, screen, Keyboard

Embedded PC for this touch screen kiosk is upgrade available.

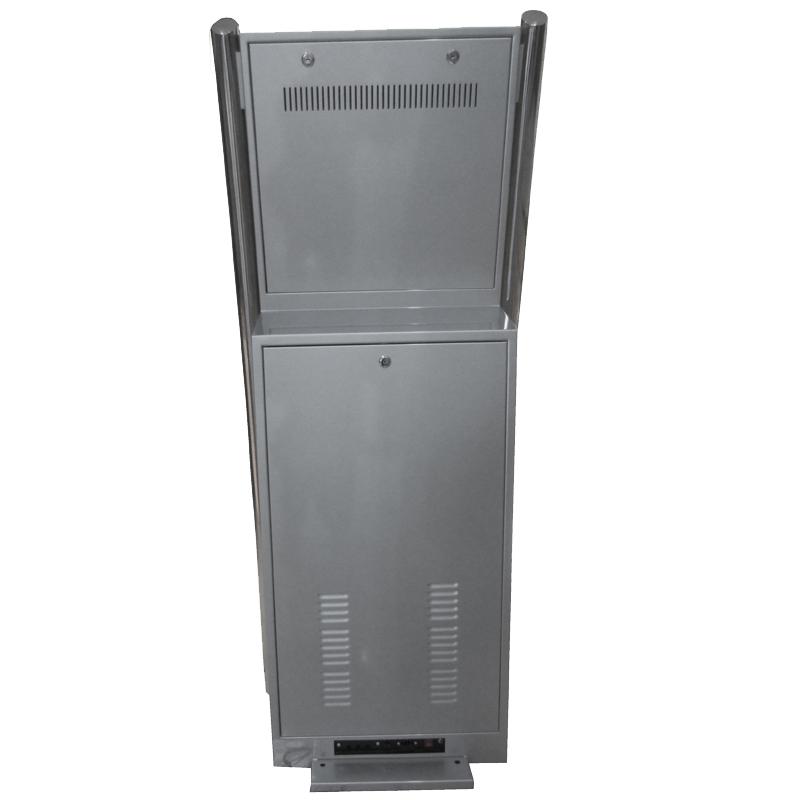

4) kiosk equipment Frame:

a. 1.5mm cold rolled Steel frame, 2.0mm CRS available.

b. build in power control panel, and hi-fi-speaker.

c. RJ45 interface, wired network card.

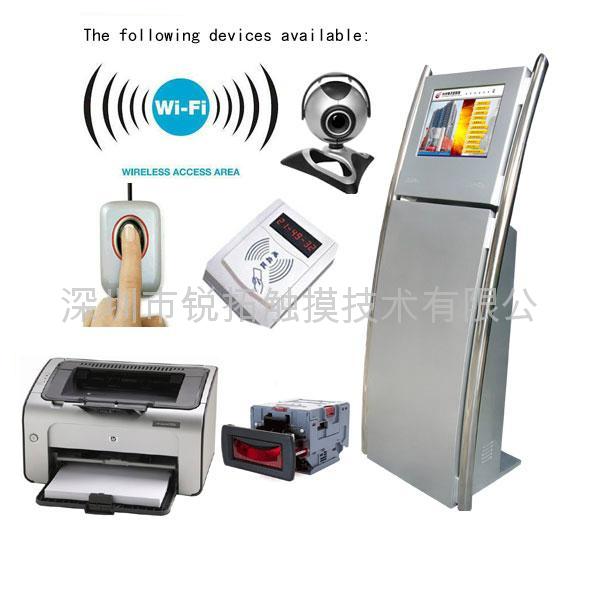

Optional devices available:

1. High quality Camera / Webcam

2. Metal keyboard with traceball&touch pad, digital pinpad(with 16 keys)

3. Bluetooth connection, 3G modem, GPRS, Wifi access

4. 3D barcode scanner, QR code reader

5. UPS(10~20mins)for power supply

6. Card reader: Magnetic card reader, IC smart card reader, RFID&Non touch card reader, Mafare card reader, Credit card reader.

It will be appreciated if you tell me your specific requirement. We are able to customize the kiosks for you.

Test process:

Before we send the kiosk to you, in order to make sure the kiosk run well after you get it, we will test to run it with not less than 24 hours for each kiosk.

Warranty:

1. 1 year warranty for enclosure.

2. 1 year warranty for electrical parts

3. For mass goods, we will offer some free spare parts of electrical device.

Payment:

We accept T/T, Western Union, Escrow and L/C(L/C acceptable only when the total payment is above 30 000 dolloars)

Warm welcome to contact me to get more information, :).
