Gd2 Vertical Putty Paste Mixer

Model:-
Brand:-
Origin:Made In China
Category:Industrial Supplies / Construction Machine
Label:Putty Paste Mixer , High Viscosity Mixer , Liqiud Paint Mixer
Price: ¥4000 / pc
Min. Order:1 pc
Inquire Now Add to Basket

Member Information

Detail

Xinyang Shenghua Chemical Technology Co.,Ltd.

Free MemberHe Nan - China
Live Chat:Last Online:29 Sep, 2018

Product Description

Introduction:

1. It is suitable for mixing materials of powder-powder and power-liquid, especially for powder, paste and thick materials.
2. It is widely used in industries such as pharmaceutical, food, dyestuff & pigment, chemical industry, plastic, pottery, putty and dry mixture etc.
3. Automatic feeding. electric mixing which can scraping wall, electric discharging with foot control switch. It is high efficiency (half an hour completely mixing). Small area, 1 people can operate, daily output (8 hours) 10-20 tons. Stainless steel can be made as required.

Equipment advantage:

1. the vertical paste mixer covers a small area, less investment     2.this paste mixer with clearance mouth, easy cleaning    3. the mixer of viscous materials mixing unique spiral ribbon design makes mixing more uniform and faster.    4. the clearance between the mixing blade and the barrel wall is very small, which can effectively remove the bond on the barrel wall and reduce the waste in the process of material cleaning.    5.  easy to operate, dry powder raw materials feeding from conveyor, liquid can be feed by water pump. It is easy to use and greatly reduces the labor intensity.

Parameters:

Type GD2-1500
Overall size Diameter120cm height 275cm
Mixing capacity 1500kg
motor power 15kw+7.5kw+4kw+4kw
mixing method Vertical shaft forced mix+Scraping
mixing time 30min.

Payment Terms:T/T

Product Image

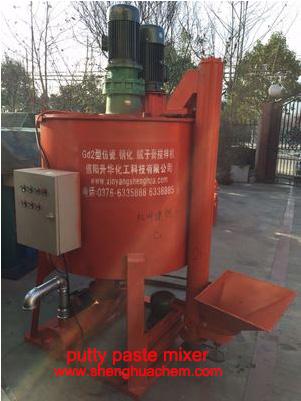

Gd2 Vertical Putty Paste Mixer 1
Img 1
Gd2 Vertical Putty Paste Mixer 2
Img 2
Gd2 Vertical Putty Paste Mixer 3
Img 3
