| Model: | JY-B04 |
|---|---|
| Brand: | JINYU |
| Origin: | Made In China |
| Category: | Industrial Supplies / Apparel & Fashion Machine |
| Label: | jeans label embossin , label embossing pres , jeans label pressing |
| Price: |
US $3500
/ pc
|
| Min. Order: | 1 pc |
| Live Chat: | Last Online:31 Dec, 2021 |

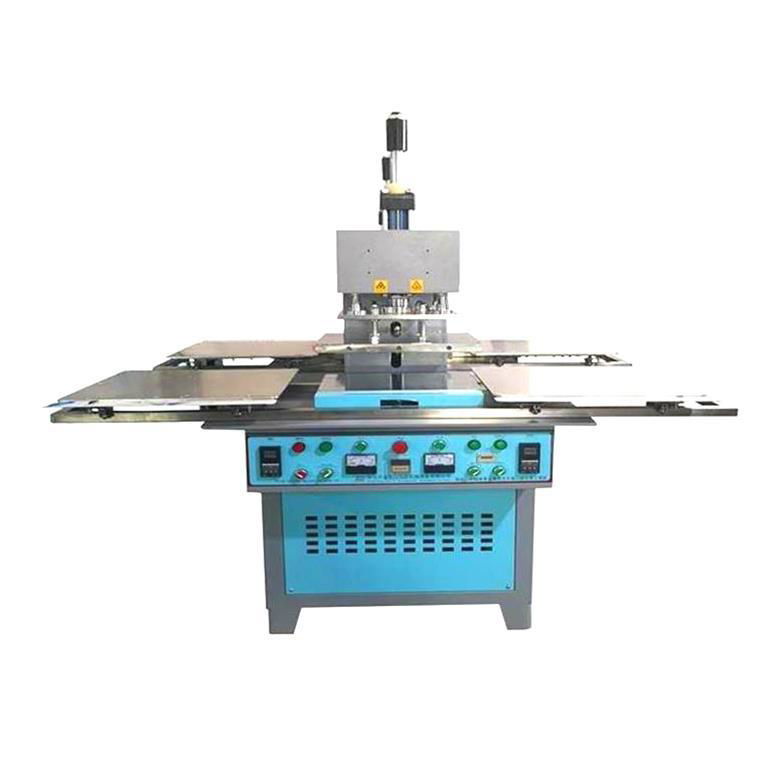

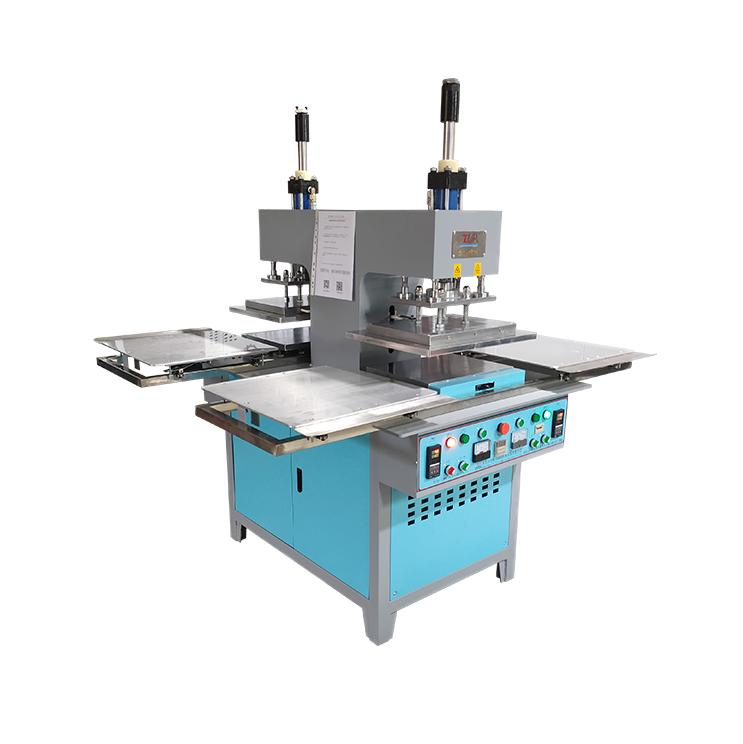

silicone jeans label embossing pressing machine on garment
Technical Parameters
Technical Parameters about garment silicon label heat embossing machine/heat press textile embossing machine/leather embossing machine:
| Type | 5T |
| Stroke (mm) | 200 |
| Work platform (mm) | 400*300 |
| Main cylinder diameter (mm) | Φ63 |
| Horse power (hp) | 3.0 |
| Electrical power (kw) | 10.8 |
| Weight (kg) | 550 |
| Machine size (mm) | 1400*1400*1750 |
Check what we can do
Factory workshop
Features
Features about Silicone label machine,hot melt labeling machine,silicone label transfer machine:
1) Mechanical optional hands move and automatic sliding table control platens fluctuation, timing forming automatic playback, operating more safety
2) Forming time from 0.1 S to 99.99 H arbitrary adjustable, convenient operation, with counting function
3) Intelligent PID output temperature controller, temperature fluctuation, a difference of 1 degree more accurate. Up and down the independent control heating;
4) Hydraulic system: 68 # anti-wear hydraulic oil, HOB type hydraulic cylinder oil pump Taiwan Shenyu, solenoid valve for Taiwan Changmao.
5) The pressure 1-10 t adjustable; Oil cylinder specifications: diameter 100mm * stroke 120mm * adjustable 50mm, 6 head can be operated at the same time
6) Machine's Middle for air pressure, the pressure is equipped with a filter gas cup surge, left and right is oil pressure type, pressure adjustable, 6 head can be operated at the same time.
7) Automatic delay shutdown function, mechanical more energy-efficient, hydraulic motor is 4 Kw, combined double flow pump, to ensure that the four hydraulic cylinder and pressure will not be significantly speed down
8) Oil cylinder and air cylinder have stroke limit device for producing high quality products to provide better security;
9) Mechanical matches a typhoon cooled chiller, as the middle pressure type cooling aluminum provide cold water cooling, cooling temperature from room temperature to 4 degrees arbitrary adjustable
10) On both sides of the hot platen for flat grinding hard chrome plate to ensure press flat, intermediate cooling plate for aluminum alloy panel
11) Mechanical have adjustable machine, automatic and manual three function transformation, with water inward and outward

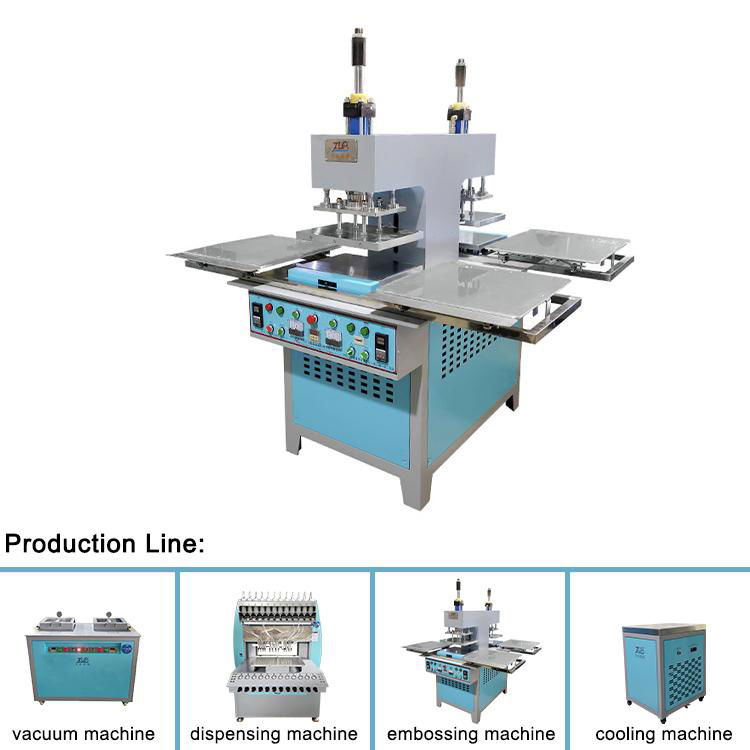

Related Machines:
Silicone label machine,hot melt labeling machine,silicone label transfer machine production line:
Our Service
1.Company have own factory for better quality control
2.Specialist manufactory of pvc machine for more than 10 years
3.Original design manufacture for customised service
4.Overseas after-sale service
5."Serve the customers heart and soul" is our aim that we have persisted for more than 10 years
Packaging & Shipping
