| Model: | DT2240B |
|---|---|
| Brand: | AERMANDA |
| Origin: | Made In China |
| Category: | Electronics & Electricity / Electronic Instrument / Electronic Measurment Apparatus |
| Label: | Stroboscope , tachometer , Non-contact |
| Price: |
US $42
/ Piece
|
| Min. Order: | 1 Piece |
| Live Chat: | Last Online:22 Mar, 2024 |
DT2240B adopts microcomputer technology (CPU), photoelectric technology. Anti interference technology and other advanced technology to realize non-contact speed measurement, and to detect the state of moving object and surface defects. Large screen LCD display with backlight digital control adjustment flash frequency low power consumption
Measurement range: 60 ~ 40000 RPM coarse/fine tuning range: < 1000 RPM coarse adjustment + 10 RPM for fine tuning + / - 0.1 RPM to 1000 RPM or coarse + 100 RPM for fine tuning
Accuracy of + / - 1 RPM: plus or minus 0.05%
Resolution: < 1000 RPM: 0.1 RPM to 1000 RPM or higher: 1 RPM 10 common speed storage function, improve the efficiency of measurement.

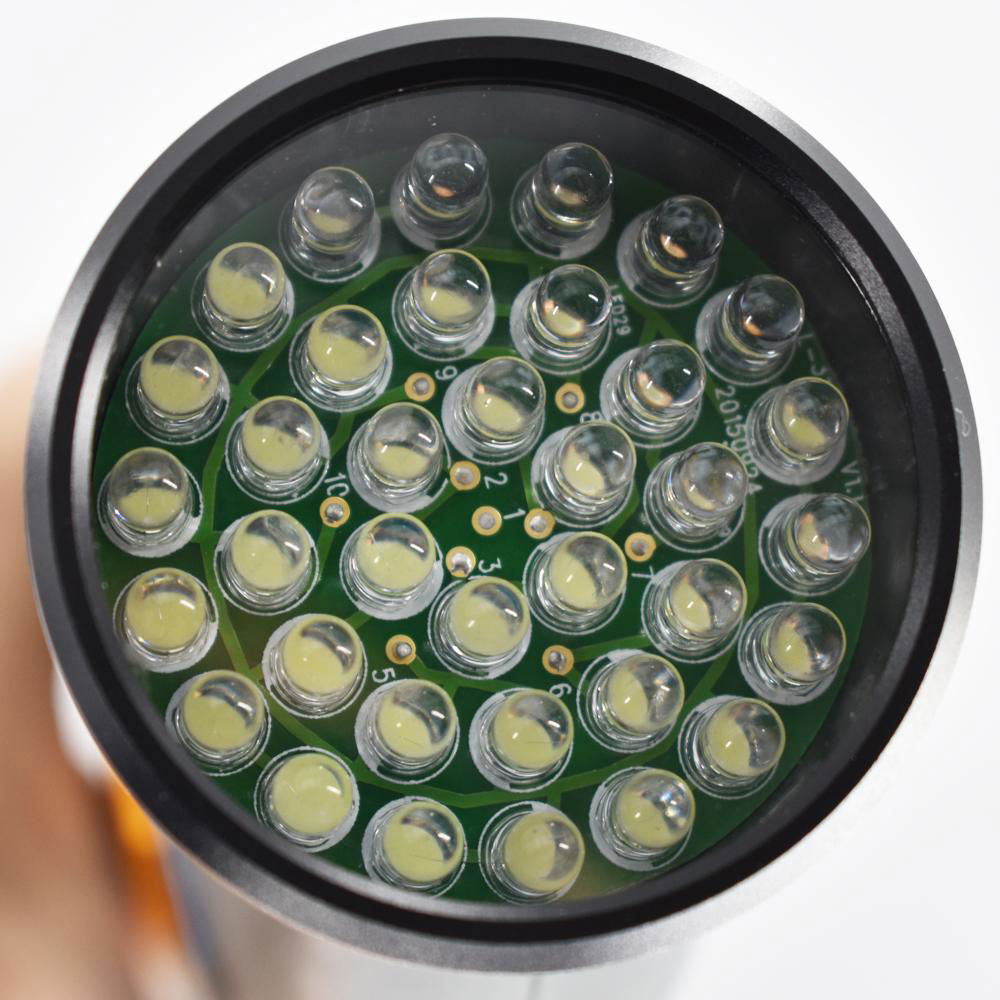

Flash light intensity is 100% higher than that of DT2239B
power: 4 x1. 5 v AA batteries
|
Model |
DT2240B |
|
Measuring range |
60 to 40000RPM / FPM |
|
Coarse / fine amplitude modulation |
<1000RPM, Coarse adjustment: 10RPM/FPM; Fine adjustment:0.1RPM/FPM |
|
≥1000RPM, Coarse adjustment: 100RPM/FPM; Fine adjustment: 1RPM/FPM |
|
|
Accuracy |
0.05% |
|
Resolution |
<1000RPM: N0.1 RPM / FPM ≥1000RPM: 1 RPM / FPM |
|
Time base |
10MHz quartz crystal |
|
Display |
5 digit LCD display with backlight |
|
Maximum display |
40000 |
|
Power |
4pcs*5V AA(UM-3) size battery (not included) |
|
Product size |
195×72×37mm |
|
Product weight |
Approx.200g |
Package:
1 x Stroboscope Tachometer Instrument
1 x English User Manual
