304 316 Stainless steel wire rope mesh

Model:MT-RF-014
Brand:MT
Origin:Made In China
Category:Metallurgy , Mining & Energy / Metallurgy & Mining / Wire Mesh
Label:rope mesh , cable mesh , rope net
Price: US $34.5 / SQ METER
Min. Order:1 SQ METER
Inquire Now Add to Basket

Member Information

Detail

Hebei Martin Technology Co.,Ltd

Free MemberHe Bei - China
Live Chat:
点击这里给我发消息Last Online:07 Sep, 2018

Product Description

1.Introduction of Stainless Steel cable net



The Flexible Stainless Steel Mesh material is used high quality stainless steel wire cable, the stainless steel grade includes

type 304, type 304 L, type 316, type 316L.The  Flexible Stainless Steel Wire Mesh is rhombus mesh, has excellent flexible

performance, virtually indestructible, most impacting-resistant and breaking resistant force, most resisting rain, snow,

hurricane.As the material is virtually indestructible stainless steel, then it can be safely contain any species on

land, in the air indoors or out.

No matter how large, how small, or how cunning you specimens are, we assure their

complete security.



2.Specification of Stainless Steel cable net



1) Knotted Mesh



Cable

    Diameter

Mesh Opening Size

Inch

mm

Inch

mm

1/8

3.0

4.75x4.75, 4x4, 3.55x3.55, 3x3, 2x2

120x120,102x102, 90x90, 76x76, 51x51

3/32

2.4

4x4, 3.55x3.55, 3x3,2.4x2.4, 2x2

102x102, 90x90, 76x76, 51x51

5/64

2.0

3x3, 2.4x2.4, 2x2,1-1/2x1-1/2

76x76, 60x60, 51x51, 38x38

1/16

1.6

3x3, 2.4x2.4, 2x2, 1-1/2x1-1/2, 1.2x1.2,1.0x1.0

76x76, 60x60, 51x51, 38x38,

30x30, 25.4x25.4

3/64

1.2

1-1/2x1-1/2, 1.2x1.2, 1.0x1.0, 4/5x4/5

38x38, 30x30, 25.4x25.4, 20x20



2) Ferruled Mesh

Wire Rope

Cable Diameter

Mesh Opening

Inch

mm

mm

7x19

1/8

3.2

150x260,120x208,100x173,90x156

7x7

3/32

2.4

150x260,120x208,100x173,90x156,80x139

7x7

5/64

2.0

150x260,120x208,100x173,90x156,80x139x70x121,60x104

7x7

1/16

1.6

120x208,100x173,90x156,80x139,70x121,60x104,51x87

7x7

3/64

1.2

80x139,60x104,50x87,40x69

Special Servirce for Wire Mesh



Raw Material Testing

1.X-Ray system for quick testing

2.Accurate chemical testing way



Finishedd Goods Inspecting

All are under the international standards



Inventory

We can keep your stocks according to your average consumption per month



New Products

We can help you design and put new products to test by using CAD software and advanced testing instruments



FAQ

Q1. What is the material of stainless steel protective mesh?

A:The raw material is stainless steel 304,316,316L



Q2.What is the structure?

A:It is 7*7mm, 9*9mm



Q3.What is the MOQ?

A:The MOQ is 1m²



Q4.Term of payment?

A:T,T Western union, LC, Cash



Q5.What is the delivery method?

A:Express, Air, Sea



Q6.How many days can I receive the stainless steel wire rope net?

A:3-7 days after the repayent



Q7.How can I install this stainless steel wire rope net?

A:After delivery, we will attach a manuel for install.we also can arrange our worker to install in your want






Product Image

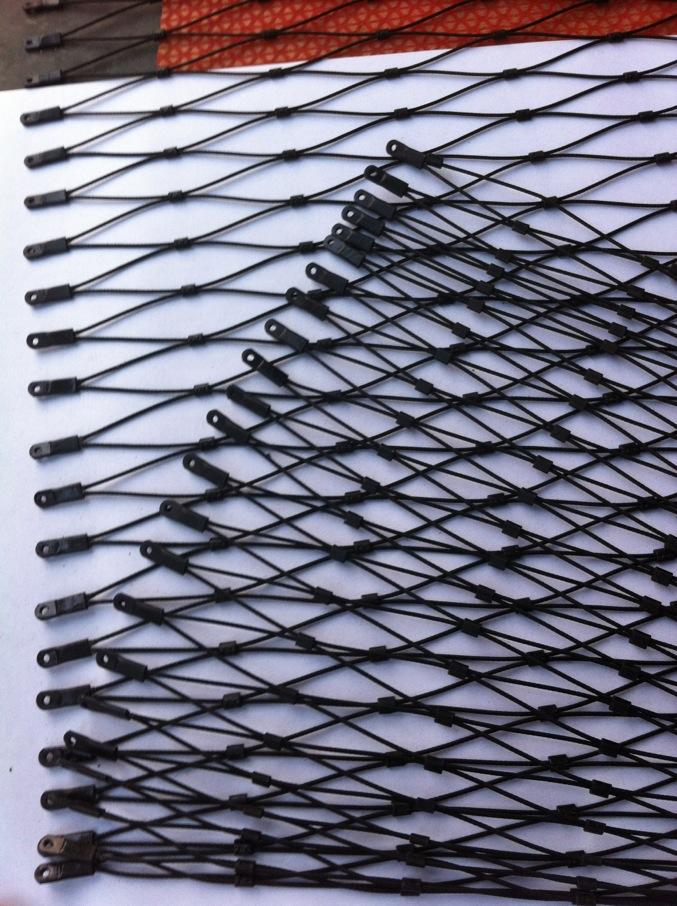

304 316 Stainless steel wire rope mesh 1
Img 1
304 316 Stainless steel wire rope mesh 2
Img 2
304 316 Stainless steel wire rope mesh 3
Img 3
304 316 Stainless steel wire rope mesh 4
Img 4
304 316 Stainless steel wire rope mesh 5
Img 5
