| Model: | HS-MLI |
|---|---|
| Brand: | SMAGALL |
| Origin: | Made In China |
| Category: | Industrial Supplies / Electrical & Electronic Product Equipment |
| Label: | indicator , liquid level meter , level indicator |
| Price: |
US $1500
/ pc
|
| Min. Order: | 1 pc |
| Live Chat: | Last Online:07 Sep, 2018 |

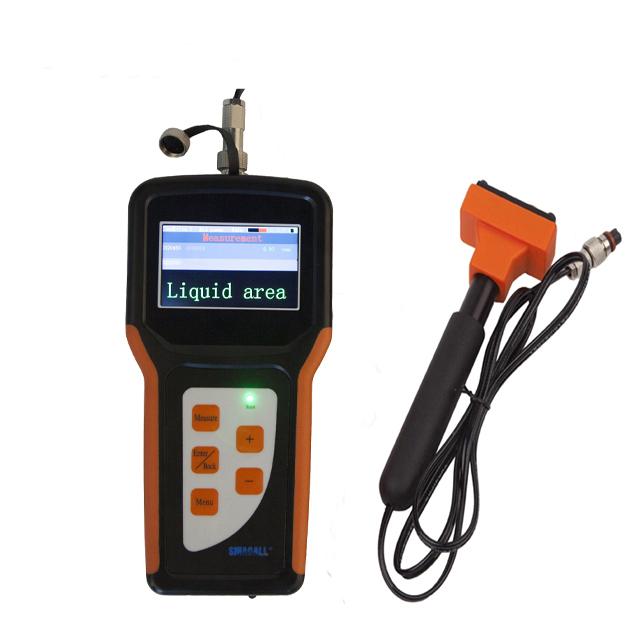

The portable liquid level indicator is designed to measure the presence or absence of liquid at a certain height position in a container or in pipelines. The material of measurable liquid containers can be made of various kinds of materials like metal, glass or unfoamed plastics. Under ordinary conditions, the maximum wall thickness of measurable containers is 30mm. It is noted that medium density, permittivity, conductivity, reflection coefficient, pressure, temperature, precipitation or other factors have negligible influence on the measurement result. The product is applicable to the detection of various types of liquids (without crystallization or other particulate matter). Due to the technique of non-contact detection this liquid level indicator is an ideal choice for the detection of dangerous toxic or corrosive liquids.
Application Fields:
1.Fire Extinguishant Cylinders-locate levels of CO2, Halon and Halon substitutes such as FM200® and NAF S III.
2. Marine Multi Banked Cylinders-Verify levels of extinguishants in multi-banked cylinder rows using extension rod and 90 degree rod.
3. LPG
4. Sprinkler Systems-CO2, Halon and Halon substitutes
5. Water
6. Calibration of liquid level meter
Features:
1.NO-CONTACT with medium, best choice for dangerous toxic or corrosive liquids
2.OLED display,suitable for outdoor use under strong light.
3.ACCURATE results under complicated situations with ultrasonic-waveform-display function.
4.Results VISUALLY displayed with comprehensive software.
5.EASE of operation using push button,no need of training.
6.FLOATING designed probe,suitable for any size tanks without silicone grease.
7.THREE kinds rods for multi-banked rows of cylinders.
8.10h operation duration.
Specifications:
1. Power supply: Two 18650 lithium batteries
2. Accuracy: <2mm
3. Material: Cast aluminum
4. Measurable tank wall thickness: 3~30mm
5. Measurable tank material: Steel, stainless steel, glass, unformed plastics, etc.
6. Medium: Pure liquid, milky liquid, suspension liquid, etc.
7. Ambient temperature: -20℃~+60℃
8. Ambient humidity: 15%~85%RH
9. Current: 100mA
10. Certificates: ISO, CE
