PVC Plastic Roof Tile Machine Trapezoida Roof Tile Making Extruder Machine

Model:ACE-001
Brand:AICHENG
Origin:Made In China
Category:Industrial Supplies / Rubber & Plastics Machine
Label:pvc roo tile machine , pvc sheet machine , roof sheet extruder
Price: US $58000 / set
Min. Order:1 set
Inquire Now Add to Basket

Member Information

Detail

ZHANGJIAGANG AICHENG MACHINERY CO.,LTD

Free MemberJiang Su - China
Live Chat:
Last Online:31 Aug, 2018

Product Description

High Quality PVC Plastic Roof Tile Making Extrusion Machine


Machine list :

No.

Main machine name

Qty.

1

Screw loader

1set

2

SJZ80/156 conical twin-screw extruder

1set

3

Vacuum loader and drying hopper

1set

4

SJ50/30 single screw extruder

1set

5

Extrusion mould and distributor

1set

6

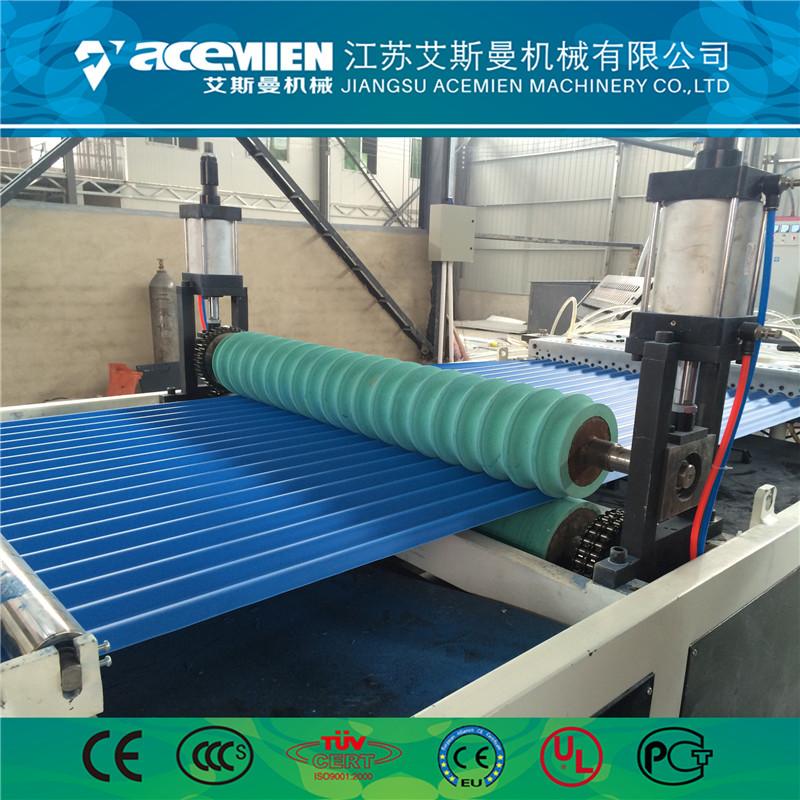

Roof tile forming machine with trimming device

1set

7

Haul off unit

1set

8

Cutter

1set

9

Stacker

1set

10

Ridge tile Oven

1set

11

Ridge tile Forming machine

1set/4sets

No.

Auxiliary machine name

Qty.

12

Screw loader

1set

13

Mixer unit

1set

14

Crusher

1set

15

Pulverizer

1set


Product info:

Raw material & formulation

Bottom layer: PVC powder, CaCO3, CPE, PE-WAX, Stearic acid, Compound stabilizer, ACR, paraffin.
Surface layer: ASA granule

Description of final product

Glazed tile:
Width:880mm;1040mm Thickness: 1.5~3mm;
Main tile:1set
Ridge tile:4sets

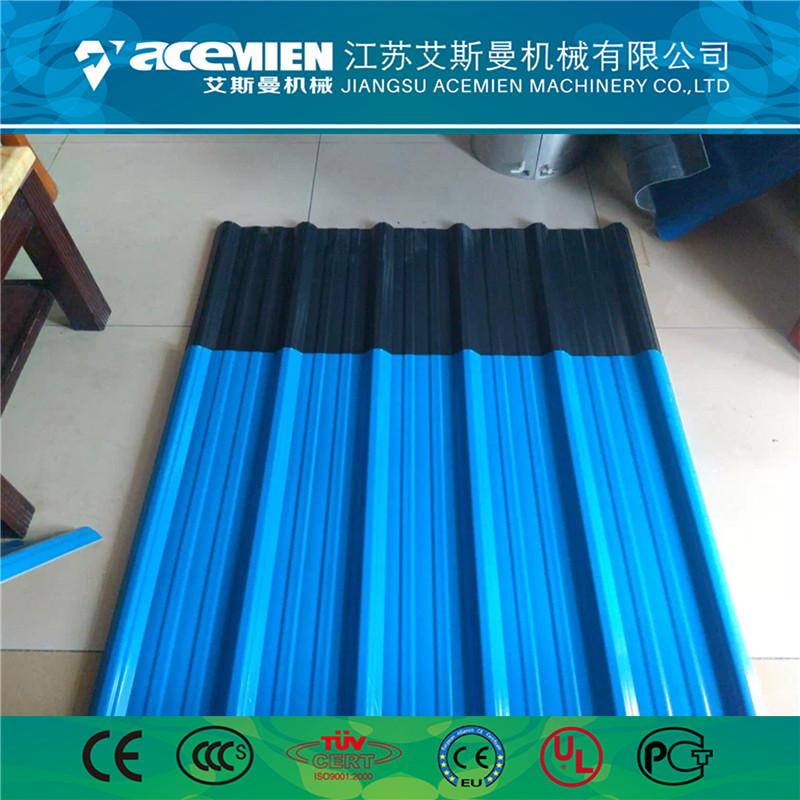

Corrugated tile:
Width:920mm;1130mm Thickness: 1.5~3mm;
Main tile:1set
Ridge tile:1set
All kinds of ridges,customers can choose.

Material

Surface layer

Bottom layer

Name

ASA (Granule)

Mixed by PVC powder, CaCO3, CPE, PE-WAX, Stearic acid, Compound stabilizer, ACR, paraffin

Cost

USD 3400/T, Need 100g/ square meter

USD 300-500/T

Weight

3-5kg / square meter

Thickness

1.5mm,2mm,2.5mm,3mm(adjustable)

Profit

Product cost USD 1.7-USD 3/ square meter

Normally in market sell at USD 2.7-5 / square meter even more

Feature of roof tile

1. Heat insulation,

2. Sound insulation,

3.  Water resistance,

4. Chemical and alkali resistance,

5. Corrosion proof, fire retardant,

6. Eco friendly,

7. Easy to install and move,

8. Light weight as well as cost effective in installation (as less steel and less overlap)

9. As per the efficiency and benefits it provides.

10. Long service life (> 20 years)



Work condition (Provide by customer):

Warehouse/Workshop

Machine Dimension (M*M*M): 25(L)×5(W) ×3.5 (H)
Crane: Machine positioning

Temperature & Humidity

≤40ºC, ≤95%

Power supply

3-phase, 380 V, 50 Hz(or customized)

Wire/cables:

Wires/cables from power supply to control cabinet of this production line;

Cooling Water pool size

8-12m³

Lubrication oil:

Sinopec, Exxon mobile

Compressor

necessary (7.5kw)


Energy consumption

Installation power

Total 284.75KW,Actual consumption about 70%
S ested 200KVA transformer,Needing at least 150KVA transformer

Cooling Water

≤20ºC, ≥0.3Mpa, ~5-6tons/hr

Compressed air

0.3m3/min, >0.6Mpa

Manpower

3 Persons/shift


============================================
Jiangsu Acemien Machinery Co., Ltd

Major Equipment:
We are sincerely providing the following :

PVC roof tile machine

PVC corrugated tile production line

PVC hollow tile machine

PVC wall panel machine

PVC flooring tile machine

PVC door panel machine

PVC foam board machine

PVC marble sheet machine

PVC decoration profile machine

PE/PPR/PVC plastic pipe machine

Auxiliary equipment :

Plastic mixer / plastic crusher / plastic pulverizer.

Plastic recycling machine;

Plastic extrusion line etc.

------------------------------------------------------------------------------------------------------------------------------
"Focus on quality, sincerity service, sincere cooperation, and mutual development" is the ultimate goal of Acemien machinery.

Looking forward to the cooperation with you.

Expect for your inquiry.

With Regards!

Sherry

Te1: +86-177-511-80691


Payment Terms:TT / LC
