| Model: | TUF-2000M |
|---|---|
| Brand: | AERMANDA |
| Origin: | Made In China |
| Category: | Electronics & Electricity / Electronic Instrument / Air & Gas Flowmeter |
| Label: | flowmeter , Flow Meter , insertion transducer |
| Price: |
US $170
/ Piece
|
| Min. Order: | 1 Piece |
| Live Chat: | Last Online:22 Mar, 2024 |
The meter has the advantages of small size, complete functions and low cost. Using guide rail installation, it is suitable to be installed in instrument box or distribution pane.
Optional types of transducers, measuring range from DN15-DN6000mm. No need to stop water.
Working Environment
| Main Unit | Transducer | |
| Protection Level | IP65 | IP68 |
| Humidity |
≤85%RH |
|
| Temperature | -20~60°c | -30~160°c |
Basic Parameters
| Accuracy |
≤1% |
| Velocity range | 0~±10m/s, Bi-directional measurement |
| Pipe size | DN80~DN6000mm |
| Temperature | -30~160°c |
| Type of liquid | Single liquid can transmit ultrasound, such as water, sea water, sewage, oil, alcohol, etc. |
| Pipe material | Steel, stainless steel, cast iron, copper, PVC, aluminmum, glass steel, etc. Liner is allowed. |
| Signal output |
1 way 4-20mA output 1 way OCT pulse output 1 way Relay output |
| Signal input | 3 way 4-20mA input, achieve to heat measurement by connecting PT100 platinum resistor. |
| Interface | RS485, support MODBUS |
| Data storage | SD card regularly store the pre-set results(optional) |
| Power supply |
DC8~36V or AC85~264V |

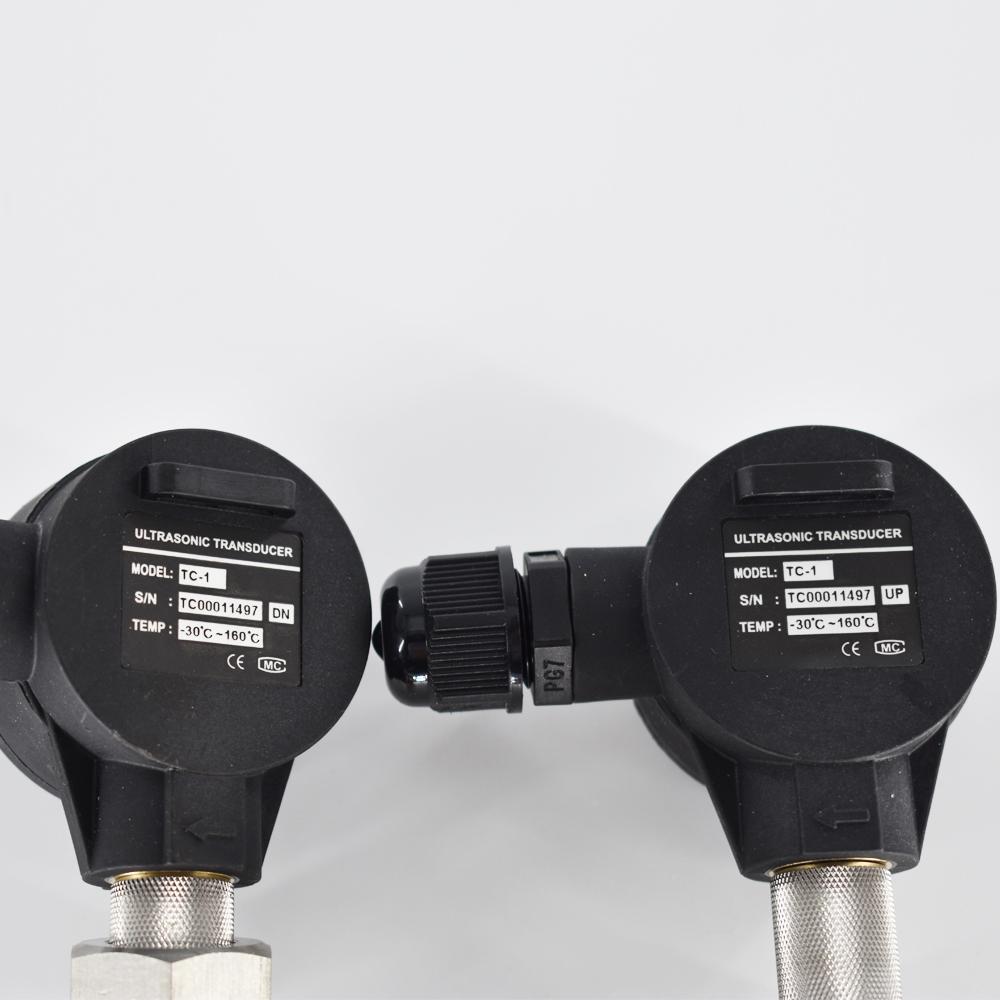

Standard insertion Transducer:
Extended insertion Transducer:
Standard Packing:

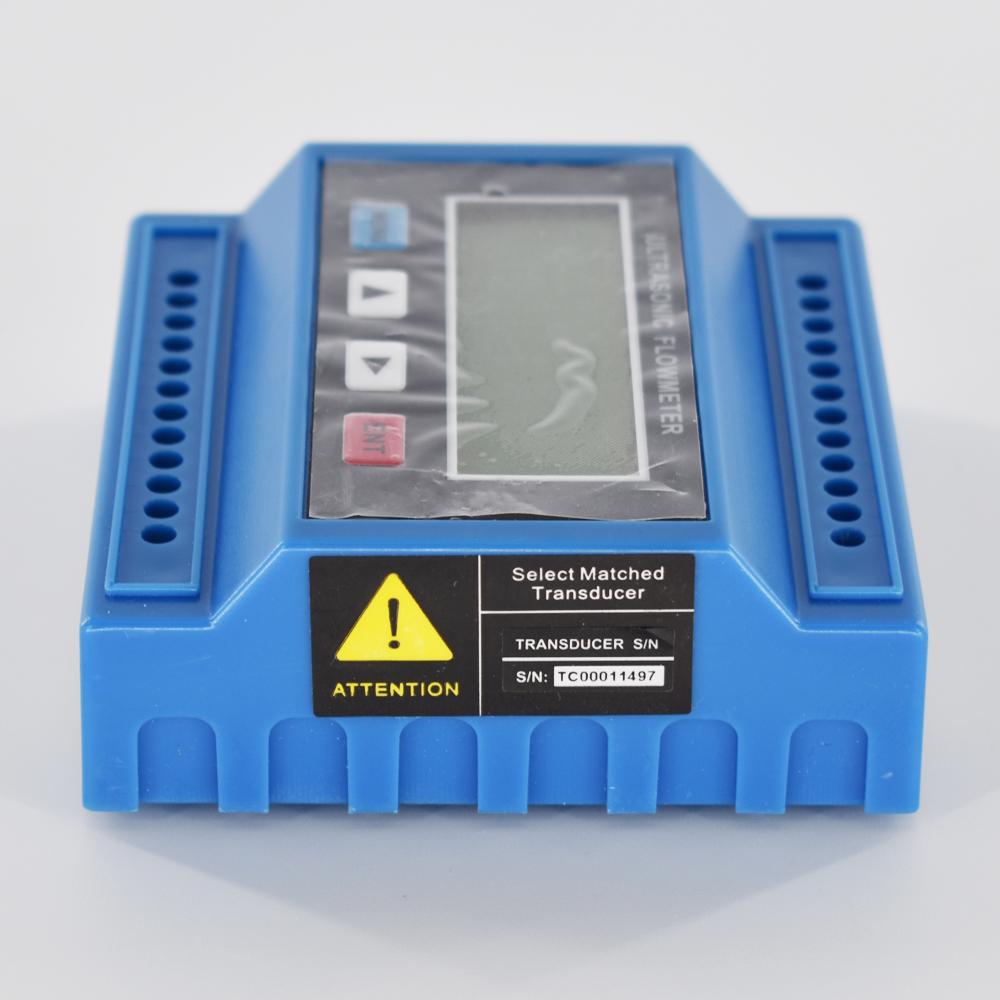

TUF-2000M Ultrasonic Flow Meter
Standard Insertion Transducer
2 x 5m Signal Cable
User manual
If you need other transducer or extend the signal cable length, please contact us.
