| Model: | GR-1325 |
|---|---|
| Brand: | Gaorun CNC |
| Origin: | Made In China |
| Category: | Industrial Supplies / Machinery / Engraving & Etching Machine |
| Label: | Iron cutting , Brass cutting , Aluminum cutting |
| Price: |
US $9000
/ set
|
| Min. Order: | 1 set |
| Live Chat: | Last Online:23 Aug, 2018 |
Advertising Plasma Cutting Machine GR-1325
Parameters
|
Working area |
1300*2500mm(51.2*98.4 inch) |
|
Working material |
Iron, aluminum sheets, galvanized sheets, titanium plates |
|
Plasma power |
60A or 100A |
|
Cutting thickness |
0.5-15mm |
|
Cutting speed |
0-8000mm/min |
|
Consuming power |
8.5kw |
|
Input voltage |
3 phase 380v |
|
Power frequency |
50HZ |
|
Files transfer |
USB interface |
|
Arc |
Untouched arc striking |
Features:
1. Light beam design, good rigidity, light weight and tiny moving inertia.
2. Y axis adopts double motors with double drives. XYZ axis equiped with round rail, moving smoothly, with high accuracy. (option: Square rail )

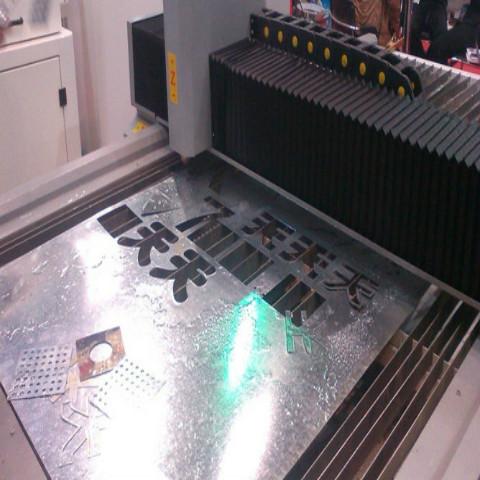

3. Excellent performance on cutting 3D illuminated letters for advertising and channel letters on metal surface board
4. Work together with other advertising machines, such as CNC router and so on, improving working efficiency
5. Small cutting gap, no residua
6. High cutting speed, high accuracy and low cost
7. Advanced CNC control system, auto arc, arcing success rate over99%
8. Support G code files of Wentai, ARTCAM, type 3 software. Also support DXF files of AUTOCAD by transfer software. Control system supports U disk file transfer, easy operation
9. Adopt well known plasma power supply and domestic cutting torch
Applications
Widely used for iron, steel, aluminum sheets, galvanized sheets, titanium plates cutting.
