| Model: | GR-2040 |
|---|---|
| Brand: | Gaorun CNC |
| Origin: | Made In China |
| Category: | Industrial Supplies / Tools / Woodworking |
| Label: | wood mold CNC router , Foam mold CNC router , train mold engraving |
| Price: |
US $10000
/ set
|
| Min. Order: | 1 set |
| Live Chat: | Last Online:23 Aug, 2018 |
Foam / wood mold CNC Router GR-2040
Parameters
|
Stroke range |
X axis 2000mm Y axis 4000mm Z axis1200mm |
|
Reposition precision |
±0.025mm |
|
Structure |
Heavy duty seamless steel structure |
|
X,y,z structure |
X, Y Helical rack and pinion, Z TBI 3205 ball screw |
|
Max ldle speed |
30000mm/min |
|
Spindle rate |
XINGCHEN7.5kw ATC spindle |
|
Spindle speed |
0-12000rpm/min |
|
Motor type |
1800w three pieces YASKAWA servo motor for X Y axis,one piece 1300wYASKAWA servo motor for Zaxis |
|
Command code |
Gcode, HPGL, U00, mmg, plt |
|
Working voltage |
AC380V 3phase 50-60HZ |
|
Operating system |
Syntec control system |
|
Collect |
BT40 |
|
Diameter of cutter |
3.175--32mm |
|
Guide rail |
HIWIN 30mm square guide rail |
Product Highlight

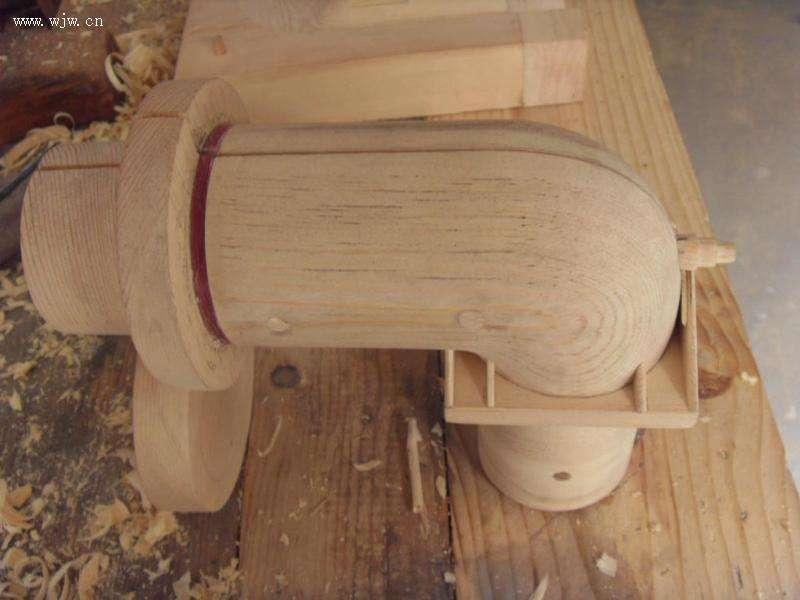

This machine is used for engrave large non-metallic
mold, especially automotive foam mold, wooden ship
mold, aviation and train wood mold. And wood mold
casting, food mold (e.g. moon cake mold) and other
mold making.
Features
1. Large scale three dimensional surface modeling.
2.Three axes adopt Taiwan brand linear guide rail with
high precision.
3.Z axis adopts imported Germany or Taiwan made ball
screw, so high precision and long life time using are
assured.
4.X and Y axis is transmitted by helical rack and pinion.
This makes the machine work faster and has larger
cutting force compared with ball screw transmission.
5.Intelligent processing cross border protection, to
prevent the mechanical impact due to excessive
design documents processing.
6.Syntec control can control the processing speed,
idling speed, the cutting speed, greatly improving the
quality of processed product and processing efficiency.
7.Heavy hard steel lathe body to keep working stability
8. High soft and famous brand electric cables with high
abrasion, fold, high temperature, acid or alkali
resistance.
Applications
Mold industry: wooden ship model, wooden model
aviation and many other wooden model.
Foam industry can carve and cut on any kind of foam
with 2D and 3D dimension processing.
Three dimensions: with 5 axes, big diameter rotary. it
can do any kind of 3D cylinder material and mould
Processing for advertisement industry, cloth and shoes
industry.
