Model: | GT |
---|---|
Brand: | JXWKD |
Origin: | Made In China |
Category: | Industrial Supplies / Mining Machine |
Label: | trommel screen , trommel screen price , trommel screen for s |
Price: |
US $5500
/ SET
|
Min. Order: | 1 SET |
Live Chat: | Last Online:19 Nov, 2018 |

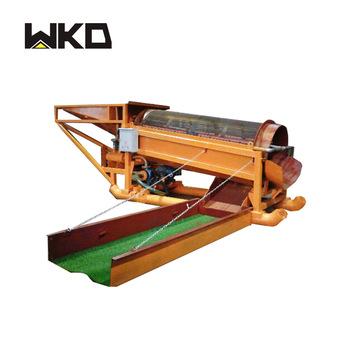

Introduction of trommel screen
The trommel screen can be used not only for wet and dry materials’ classification and desliming in industries of mining,coal,electric power,construction,chemical etc,
but also for dewatering of coarse-grained materials.
with the upgrading of our GT series trommel screen ,it has widely applied in preliminary classification process of beach resources and
alluvial gold mining,as well as in the effective screening and looseness process of the alluvial gold ore with high viscosity clay by cooperating with the rotary scrubber or log washer.
Working Principle of trommel screen
trommel screen includes hexagon drum or round drum, rack, hopper, reducer and motor.
trommel screen depends on centrifugal force and jigging action of the drum rolling,differentsize of the crushed materials can be screened.
and they will be in the respective hoppers and then take away by people or belt conveyor.
Technical Parameters of trommel screen
Model | Capacity | Power | Screen | Discharge | Input Size | Dimension | Weight | |
Diameter | Length | Size | (L×W×H) | |||||
(t/h) | (kw) | (mm) | (mm) | (mm) | (mm) | (mm) | (kg) | |
GT1015 | 50 | 4 | 1000 | 1500 | 0~100 | ≤300 | 3000×1400×2145 | 2200 |
GT1020 | 100 | 5.5 | 1000 | 2000 | 3460×1400×2145 | 2800 | ||
GT1225 | 160 | 7.5 | 1200 | 2500 | 4146×1600×2680 | 4200 | ||
GT1530 | 250 | 11 | 1500 | 3000 | 4460×1900×2820 | 5100 | ||
GT1545 | 350 | 15 | 1500 | 4500 | ≤400 | 5960×1900×3080 | 6000 | |
GT1848 | 450 | 22 | 1800 | 4800 | 6500×2300×4000 | 7500 | ||
GT2055 | 600 | 30 | 2000 | 5500 | 7500×2550×4800 | 8600 |
Payment Terms: | TT/LC/DP/DA |
---|---|
