Basic Features

• Structure: Single-End
• Pressure: High Pressure Mechanical Seals
• Speed: High Speed Mechanical Seal
• Temperature: High Temperature Mechanical Seal
• Performance: Corrosion
• Standard: Standard
• Model NO.: 587
• Balance: Balanced
• Specification: Inner Diameter: 38 mm, 48 mm, 53 mm, 65 mm, 90 mm

Product Detailed Description

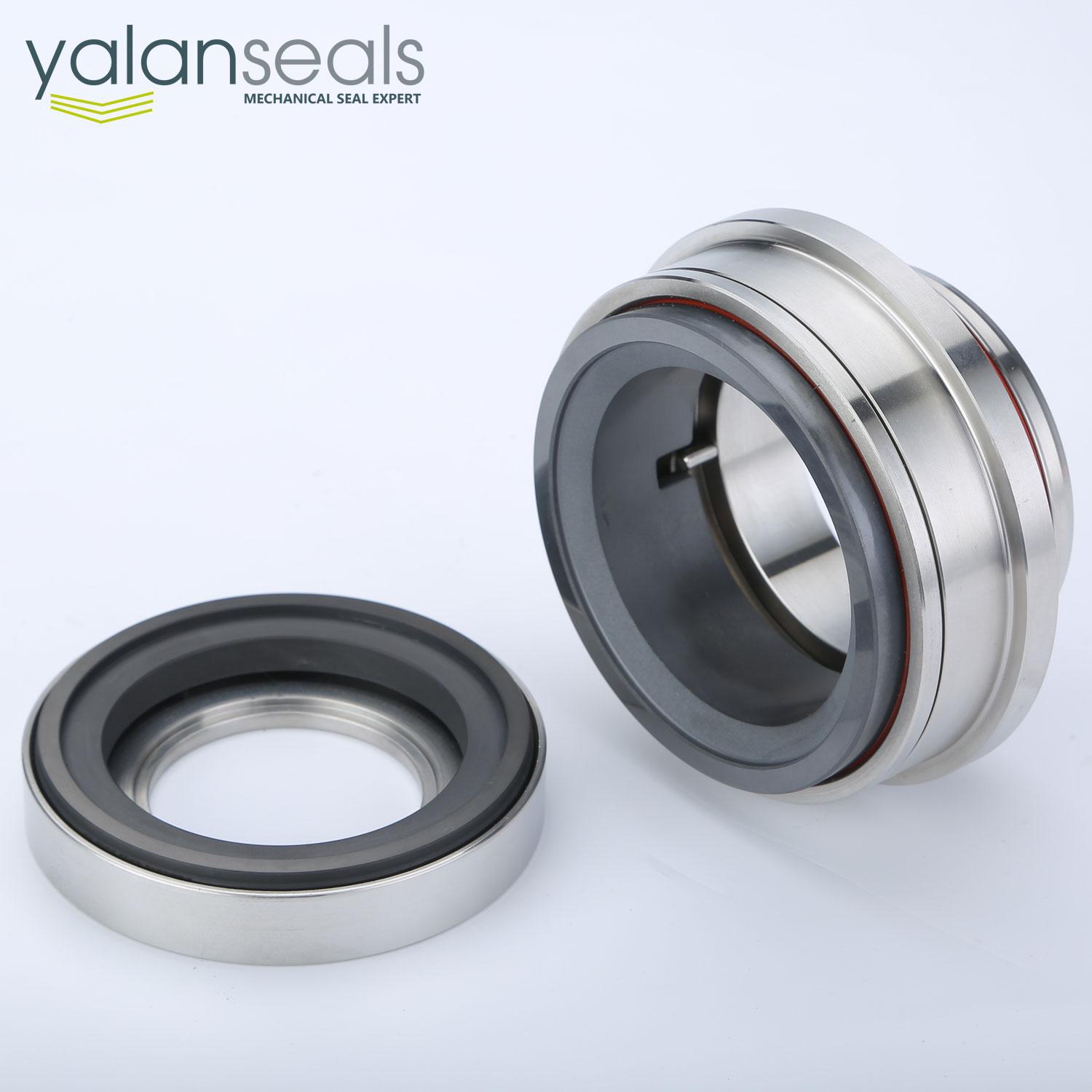

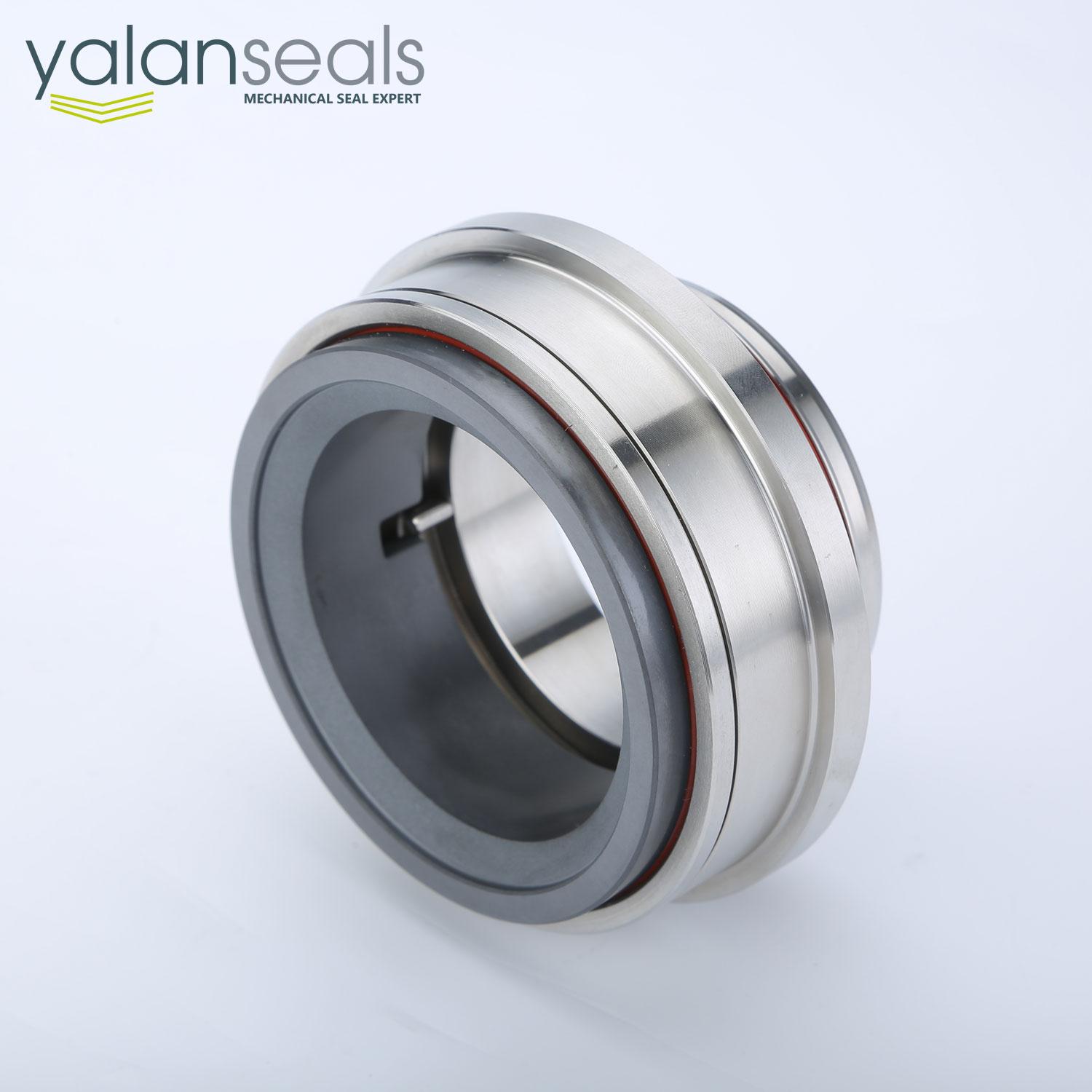

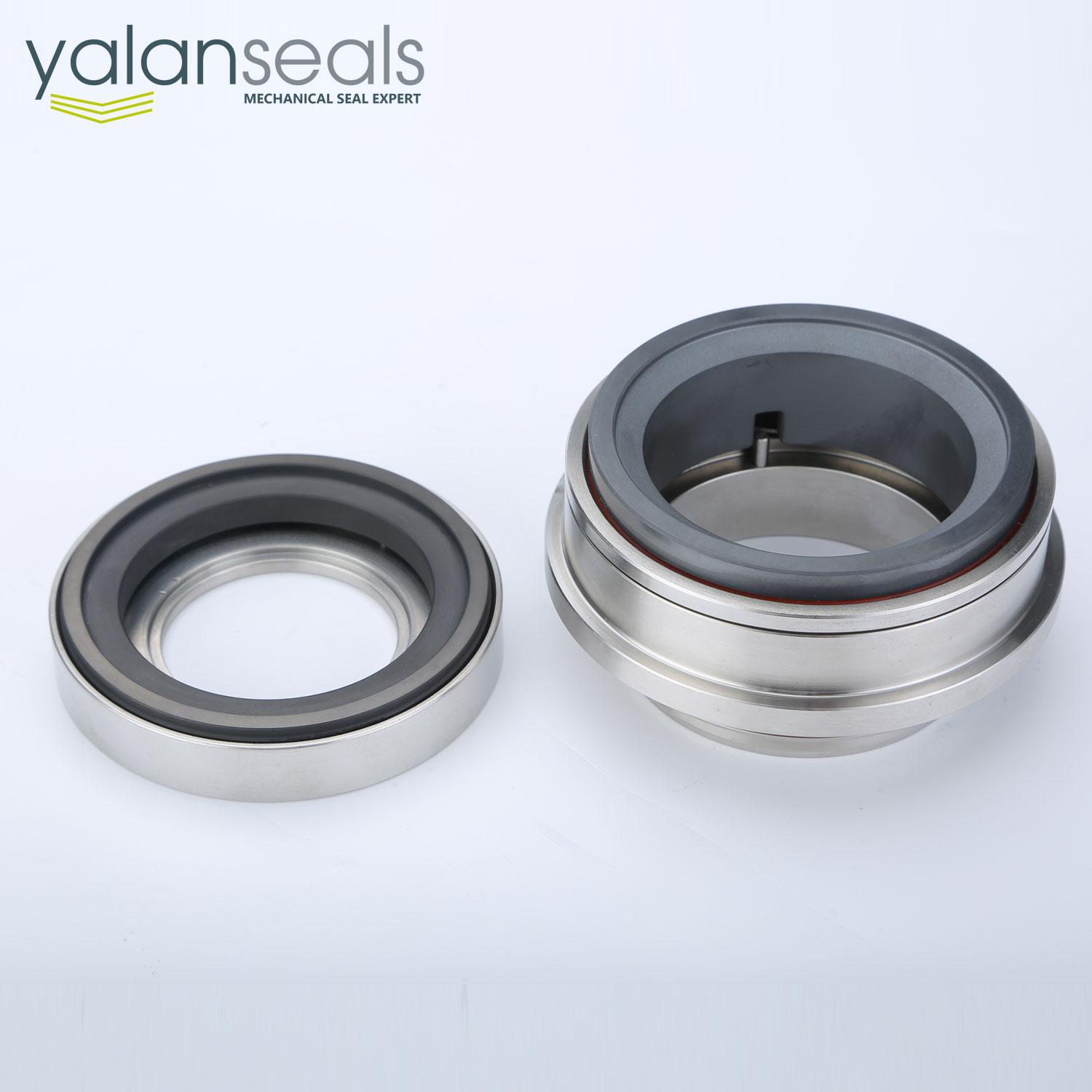

587 Mechanical Seals for Paper-making Equipment and other ANDRITZ Industrial Pumps

Structural Features: single-end, balanced, independent direction of rotation, still spring mechanical seal.

Industrial Standards: Not available right now.

Scopes of Application: widely used in paper pulp pumps, pharmacy, oil refining, food processing, and chemical processing. This component can work on ANDRITZ pumps.

Operation Parameters:

• Pressure: 0 ~ 2.5 MPa
• Temperature: - 40 ~ 230 ºC
• Linear Speed: 23 m/s or less

Mediums: paper pulp and other fluids with fine powder.

Customization: Changes of materials for getting other operating parameters are possible. Contact us with your requirements.
